Universal Audio Arrow User Manual

Arrow Manual Hardware Controls & Connectors 28
Top Panel

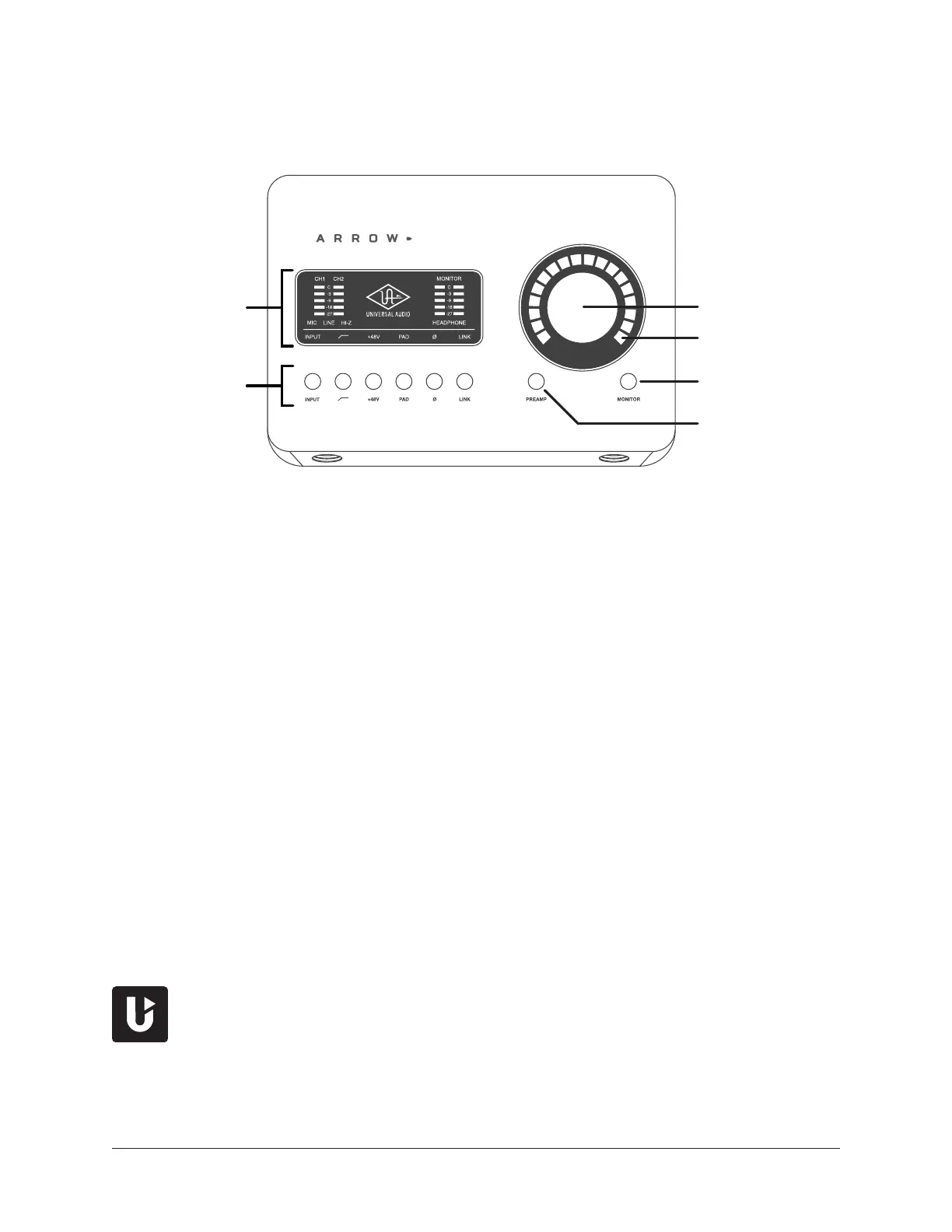

Refer to the illustration below for descriptions in this section.
Top panel elements
(1) LEVEL Knob & Switch
The LEVEL knob & switch controls multiple functions. The knob’s current function is
selected with the MONITOR (3) and PREAMP (4) buttons.
Monitor Mode
When in MONITOR Mode (3), rotate clockwise to increase the monitor output level or
headphone output level, depending on which output (10 or 12) is selected with the
MONITOR (3) button.
When MONITOR (10) is selected in monitor mode, press to mute/unmute the monitor
outputs.
Note: MUTE does not apply to the headphone output.
Preamp Mode
When in PREAMP Mode (4), rotate the knob clockwise to increase the amount of preamp
gain for the currently selected input channel.
Tip: When in preamp mode, press to toggle between selection of channels 1 & 2.
Unison Integration
The LEVEL knob can be used to control Unison-enabled UAD preamp
plug-ins. See the Unison chapter for complete details.
6
1
3
2
5
4

Universal Audio Arrow Specifications

General

Type	Audio Interface
Connectivity	Thunderbolt 3
Input Channels	2
Output Channels	2
Simultaneous I/O	2 x 4
Preamps	2
Phantom Power	Yes
A/D Resolution	24-bit/192 kHz
Analog Inputs	2 x XLR/TRS Combo
Headphones	1 x 1/4"
Thunderbolt Ports	1 x Thunderbolt 3
Power Supply	Bus powered
Software	UAD Software
Compatibility	Mac, Windows
Analog Outputs	2 x 1/4" TRS
