Section 2 - Service and Repair Lubrication
067448-023 LX31/LX41 Electric and Bi-Energy Work Platform | European Specifications Page 2-9
2-4 L
UBRICATION

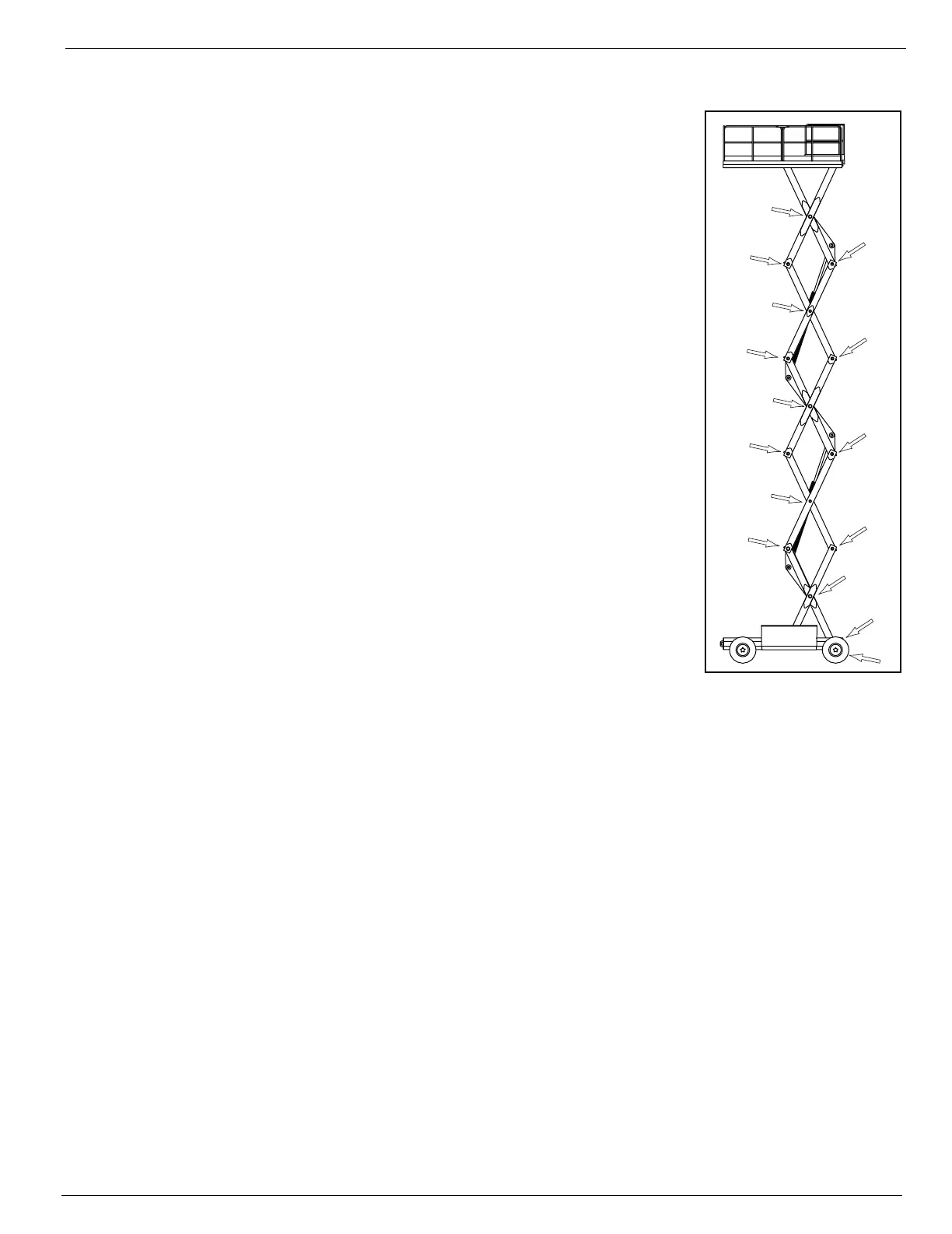

Figure 2-3:
Lubrication Points
Refer to “Preventative Maintenance Check List” on page 2-7 for lubrication
intervals and Figure 2-3 for location of items that require lubrication service.
Refer to the appropriate sections for lubrication information on the steering
linkage, torque hubs, hydraulic fluid and filter, and engine oil and filter.
G
REASE
F
ITTINGS
Grease fittings at;
• the pivot points on the elevating assembly and
• the top and bottom of the steering pivots next to the front wheels.
Wipe each grease fitting before and after applying grease. Using multipur-
pose grease in a grease gun. Pump the grease into the fitting until grease
just begins to appear at the edges of the pivot and wipe off any excess
grease.
T
ORQUE
H
UBS
NOTE:
Change oil in torque hubs after the first 50 hours of operation. Change every
1000 hours thereafter.
1. Remove the torque hub (refer to “Torque Hub Removal” on page 2-20).
2. Remove the drain plug from the underside of the torque hub.
3. Drain the oil from the unit.
4. Replace the drain plug.
5. Remove the fill plug from the top of the torque hub.
6. Using 90 weight gear lube with EP additive, fill the torque hub through the top plug hole in the rear cover
until oil comes out of the 90° fitting on the side. Plug the 90° fitting.
7. Replace the fill plug.
8. Install the torque hub (refer to “Torque Hub Installation” on page 2-21).
