Upright LX31 Service Manual

Drive Motors Section 2 - Service and Repair
Page 2-26 067448-023 LX31/LX41 Electric and Bi-Energy Work Platform | European Specifications
2-11 D
RIVE
M
OTORS
R
EMOVAL
1. Disconnect battery negative terminals or Anderson connectors (both sides on electric model).
2. Tag and disconnect electric cables from motor.
3. Remove and save hardware which secures drive motor to torque hub.
I
NSTALLATION
NOTE:
Unless otherwise specified, torque all fittings according to Torque Specifications in
“Section 1 - General Information”.
1. Install drive motor to torque hub using original hardware.
2. Connect electric cables to motor.
3. Connect Anderson connectors or negative terminals on batteries.
P UMP M OTOR
R
EMOVAL
1. Disconnect battery negative terminals or Anderson connectors (both sides on electric model).
2. Tag and disconnect electric cables from motor.
3. Remove and save hardware which secures pump motor to pump assembly.
I
NSTALLATION
NOTE:
Unless otherwise specified, torque all fittings according to Torque Specifications in
“Section 1 - General Information”.
1. Install motor using original hardware.
2. Connect electric cables to motor.
3. Connect Anderson connectors or negative terminals on batteries.
D RIVE M OTOR B RUSHES

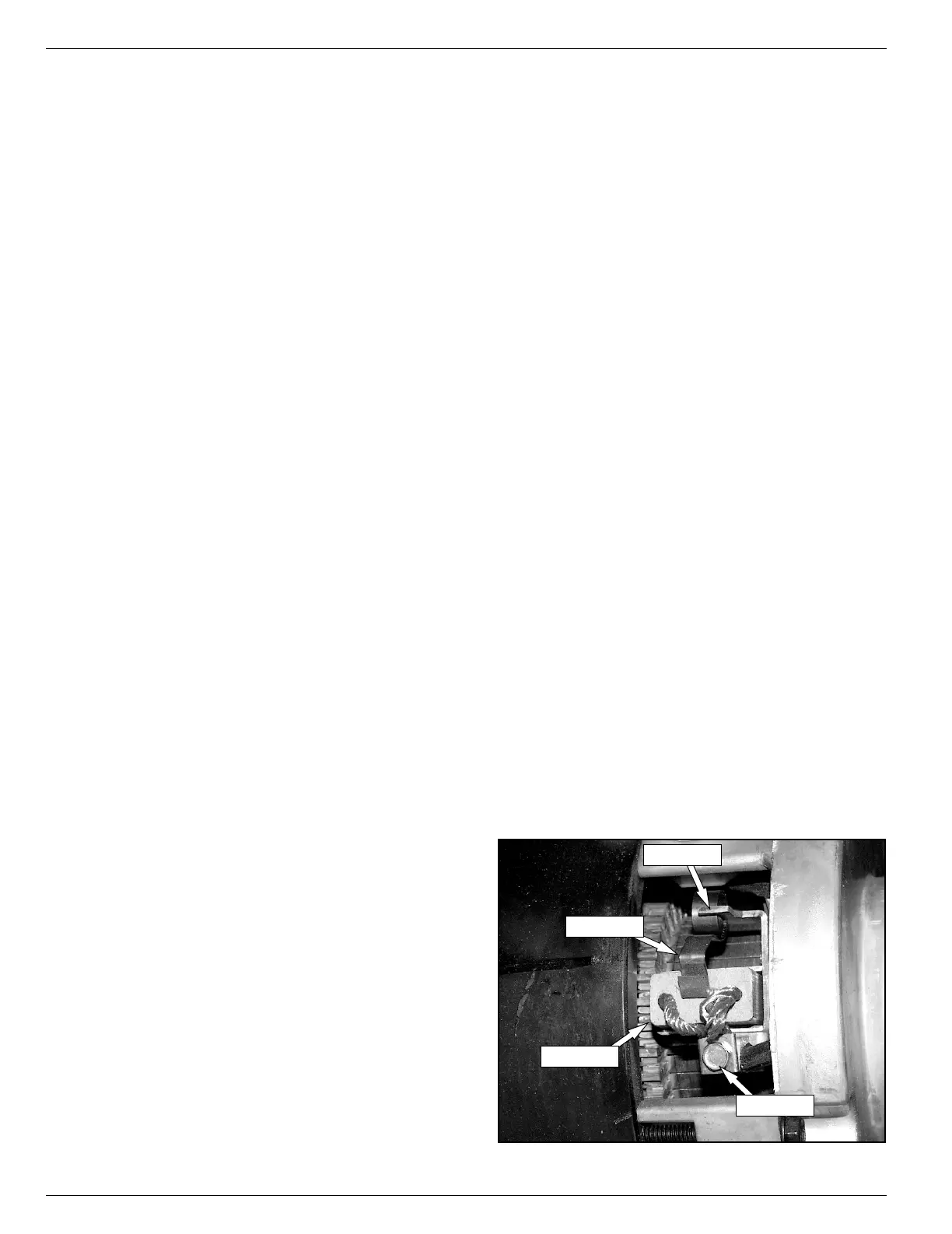

Figure 2-20:
Replacing Drive Motor Brushes
1. If necessary, remove electric motor (Refer to
previous section).
2. Release latch and remove headband.
3. Pull back brush spring and latch on hook.
4. Remove screw and set aside.
IMPORTANT: Be sure screw does not fall inside motor.
5. Remove old brush and replace with new
brush.
6. Replace screw, unhook brush spring and
return to original position.
7. Install and relatch headband.
Hook
Hook
Brush
Screw
