Upright LX31 Service Manual

Generator, Bi-Energy Models Only Section 2 - Service and Repair
Page 2-32 067448-023 LX31/LX41 Electric and Bi-Energy Work Platform | European Specifications
2-15 G
ENERATOR
, B
I
-E
NERGY
M
ODELS
O
NLY

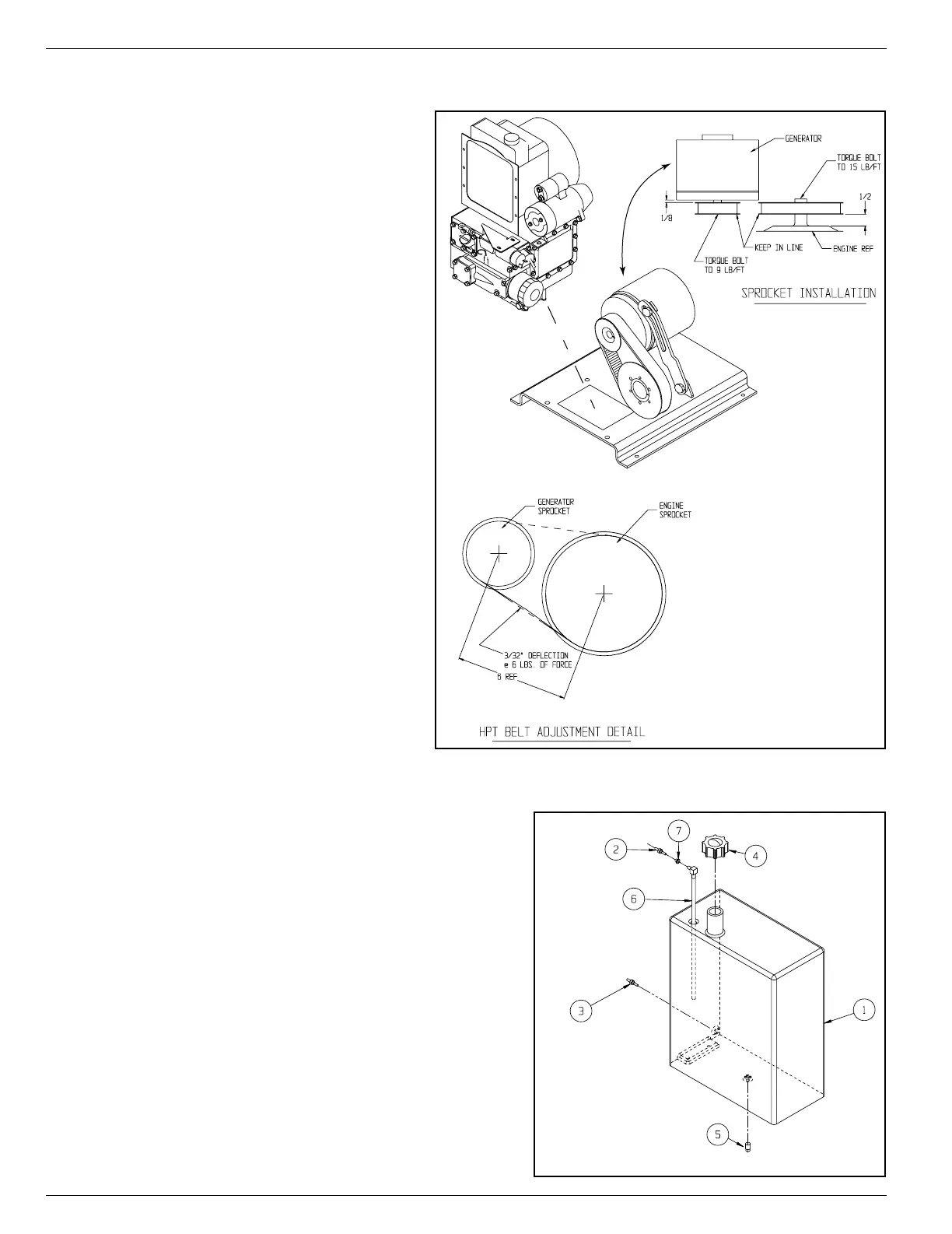

Figure 2-27:
Drive Belt Adjustments
Bi-Energy work platform is equipped
with a diesel powered 48 volt, 100 amp
generator. There are no brushes or
springs to replace.
D RIVE B ELT
A
DJUSTMENT
1. Open the power module to gain
access to the generator.
2. Loosen the bolt and nut at both ends
of the adjustment arm.
3. Pry the generator back until the drive
belt can be deflected 2,5 mm (3/32
in.) with 8 N-m (6lb/ft)offorce.
4. Tighten the bolts at both ends of the
adjustment arm.
F UEL T ANK , B I -E NERGY M ODELS
Figure 2-28:
Fuel Tank, Bi-Energy Models
The fuel tank is located in the control module on
Bi-Energy models.
1 Fuel Tank
2. Hose Fitting, 3/
16
3. Hose Fitting, 1/4
4. Fuel Cap
5. Drain Plug
6. Withdrawal Tube
7. Bushing
