Upright LX31 Service Manual

Section 2 - Service and Repair Lift Cylinders
067448-023 LX31/LX41 Electric and Bi-Energy Work Platform | European Specifications Page 2-29

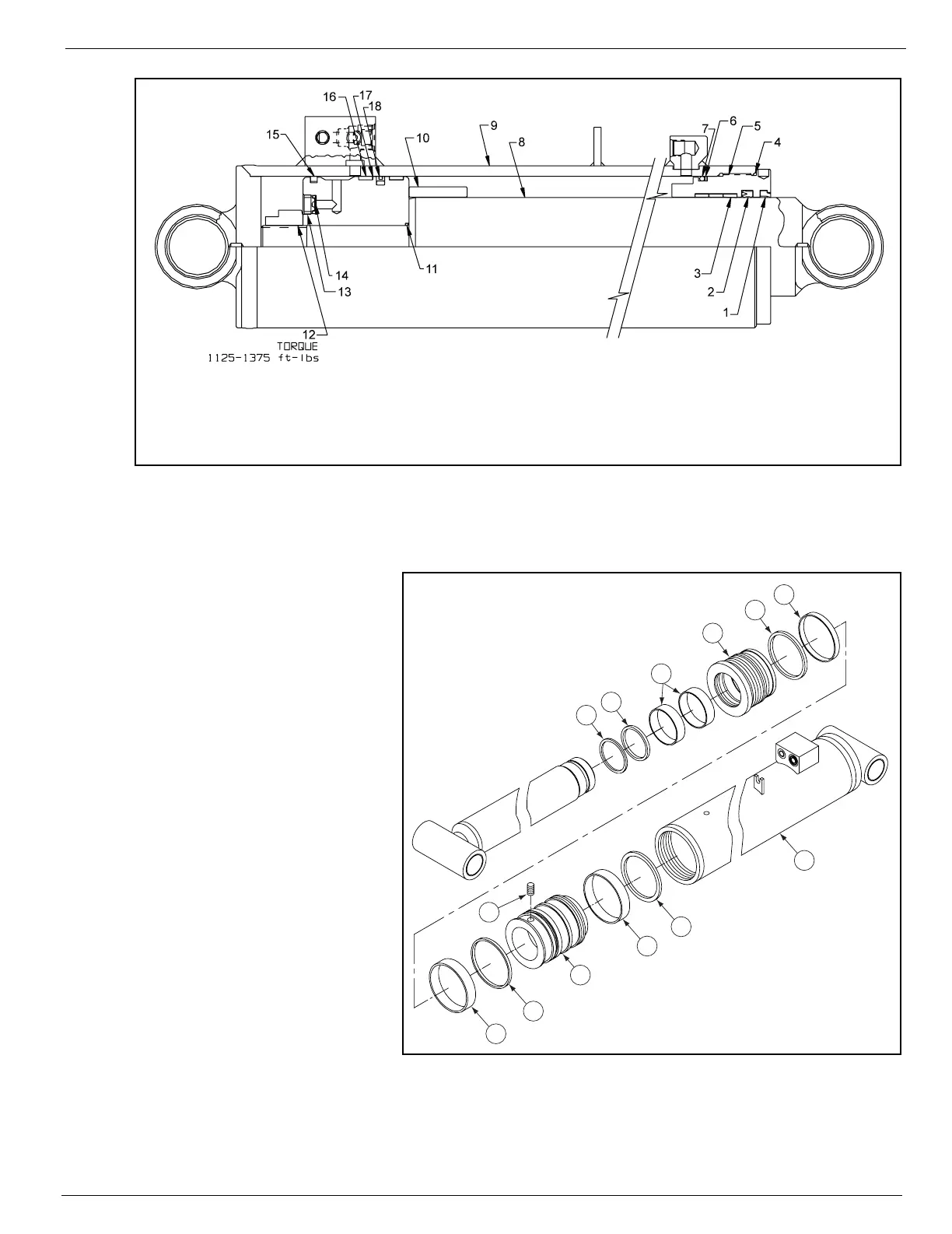

Figure 2-23:
Lift Cylinder Cross Section - Serial Number 4022 to 4129
Figure 2-24:
Lift Cylinder - Serial Number 4130 to Current
1 Rod Wiper
2. Rod Seal
3. Wear Ring (3 required)
4. O-ring
5. Head
6. Backup Ring
7. O-ring
8. Rod Weldment
9. Tube Weldment
10. Spacer
11. O-ring
12. Locknut
13. Bushing
14. Orifice
15. Cast Iron Ring
16. Wear Ring
17. Piston
18. Piston Seal
3
B
2
1
C
5
6
E
5
7
D
4
5
A. Rod
B. Head
C. Piston
D. Cylinder
E. Set Screw
Seal Kit Includes:
1 Rod Wiper
2. Rod Seal
3. Wear Ring
4. Static Seal
5. Wear Ring
6. Piston Seal
7. Piston Seal
