USAVision UVS-ABL1300 - Page 82

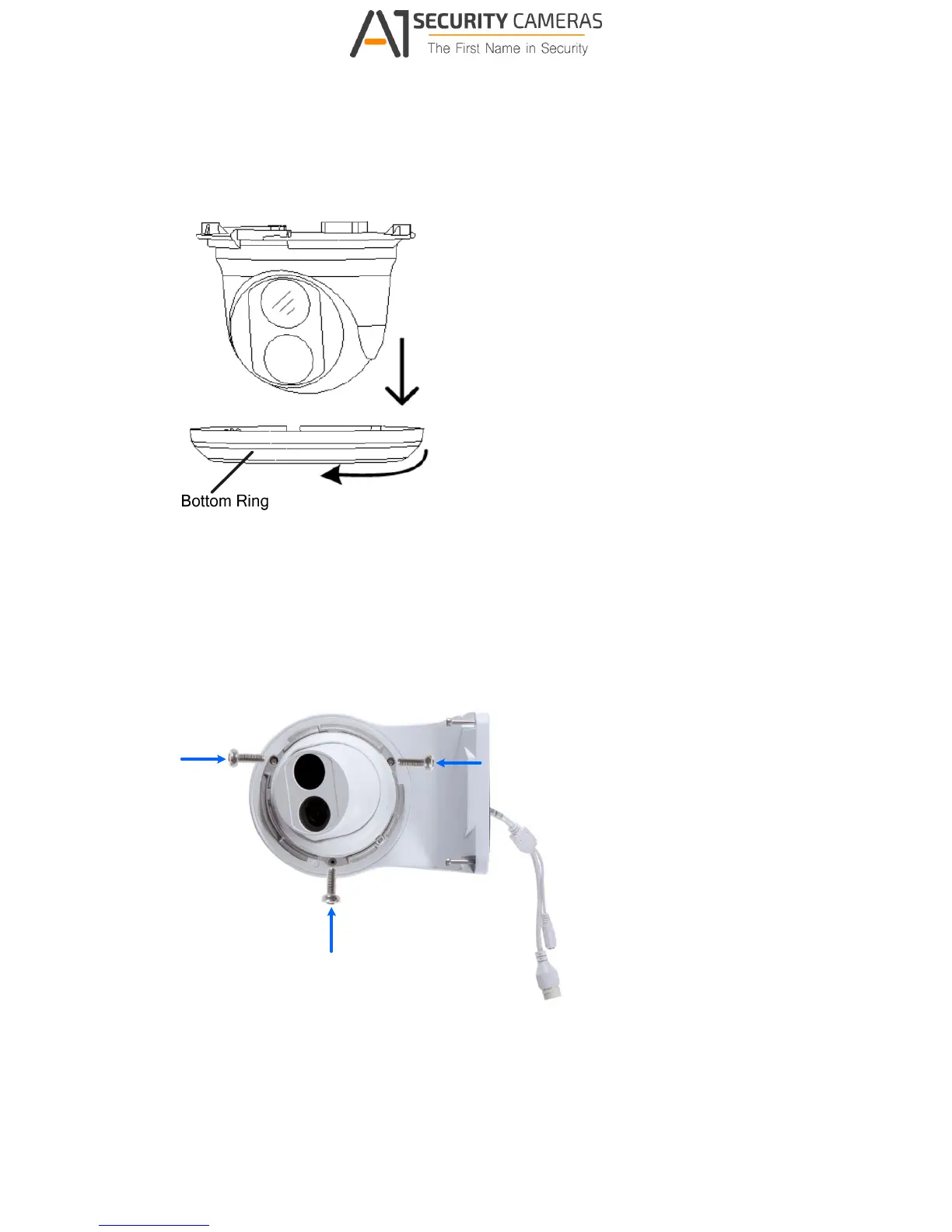

6. Remove the bottom ring by turning it anticlockwise.
Figure B-5
7. Thread the network and power wires through the camera housing.
8. Secure the camera to the wall box mount with 3 short screws.
Figure B-6
