D291308.5q.fm Preparing the Work Area
Chapter 2: Setup 9
When loading, unloading or running the PT-55, the operator should stand in front of the machine
controller to assure easy access to all controls. This position also allows the operator to view all
parts of the PT-55 while it is in operation.
Allow at least 24” clearance at the front and sides of the machine for easy access and operation.

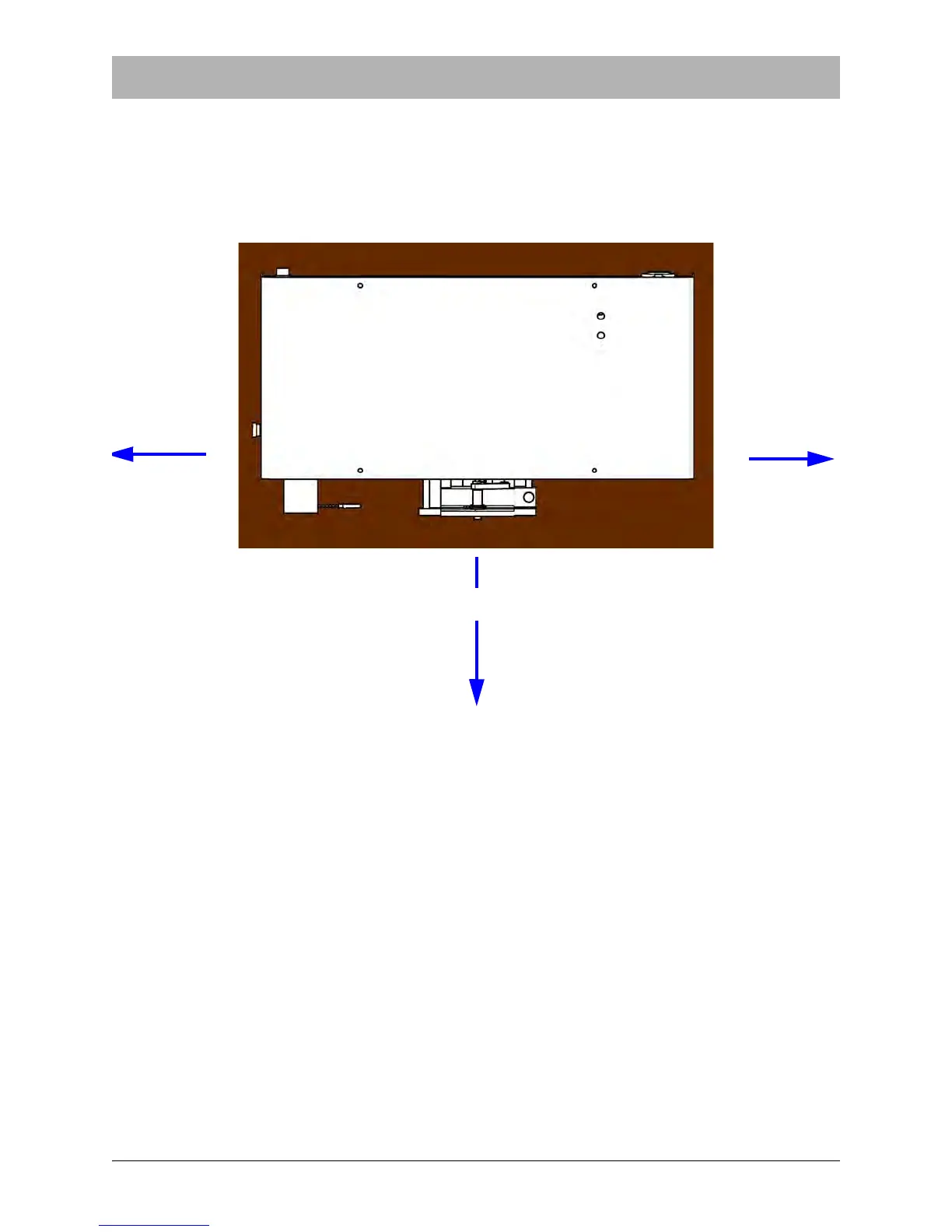

(Pictured in the overhead view below.)
The PT-55 will also require access to a 120/230 VAC, 50-60 Hz power supply. Locate the
machine so electrical power cables can be routed away from areas where personnel are
expected to move. It is recommended that cables be routed overhead or underground. If cables
must be routed over the floor, cover them with rubber ramps.
Allow 24 inches clearance on front and sides.
