74 PT-55 User’s Guide

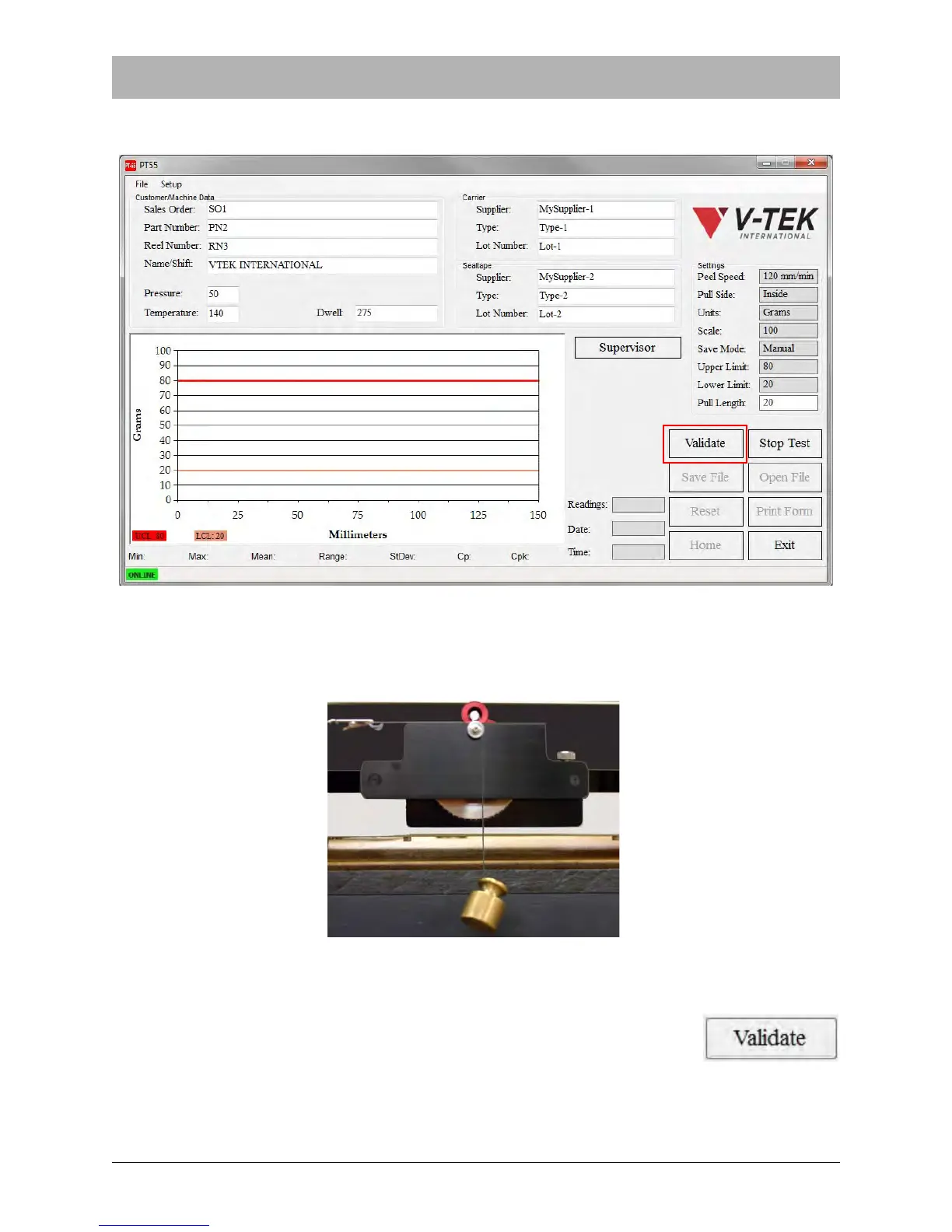

Verify Calibration Accuracy D291308.6r.fm
4. Note that the Start Test button has changed to a Validate button.
5. Ensure the carriage is in the home position, then hang a 50g or 100g weight from the load
cell, suspending it over the calibration jig just as it was during the calibration process.
6. Click the Validate button.The PT-55 will begin the validation test.
Figure 4.13
Figure 3.14
