4 - INSTALLATION OF
GUIDE SECTION BAR

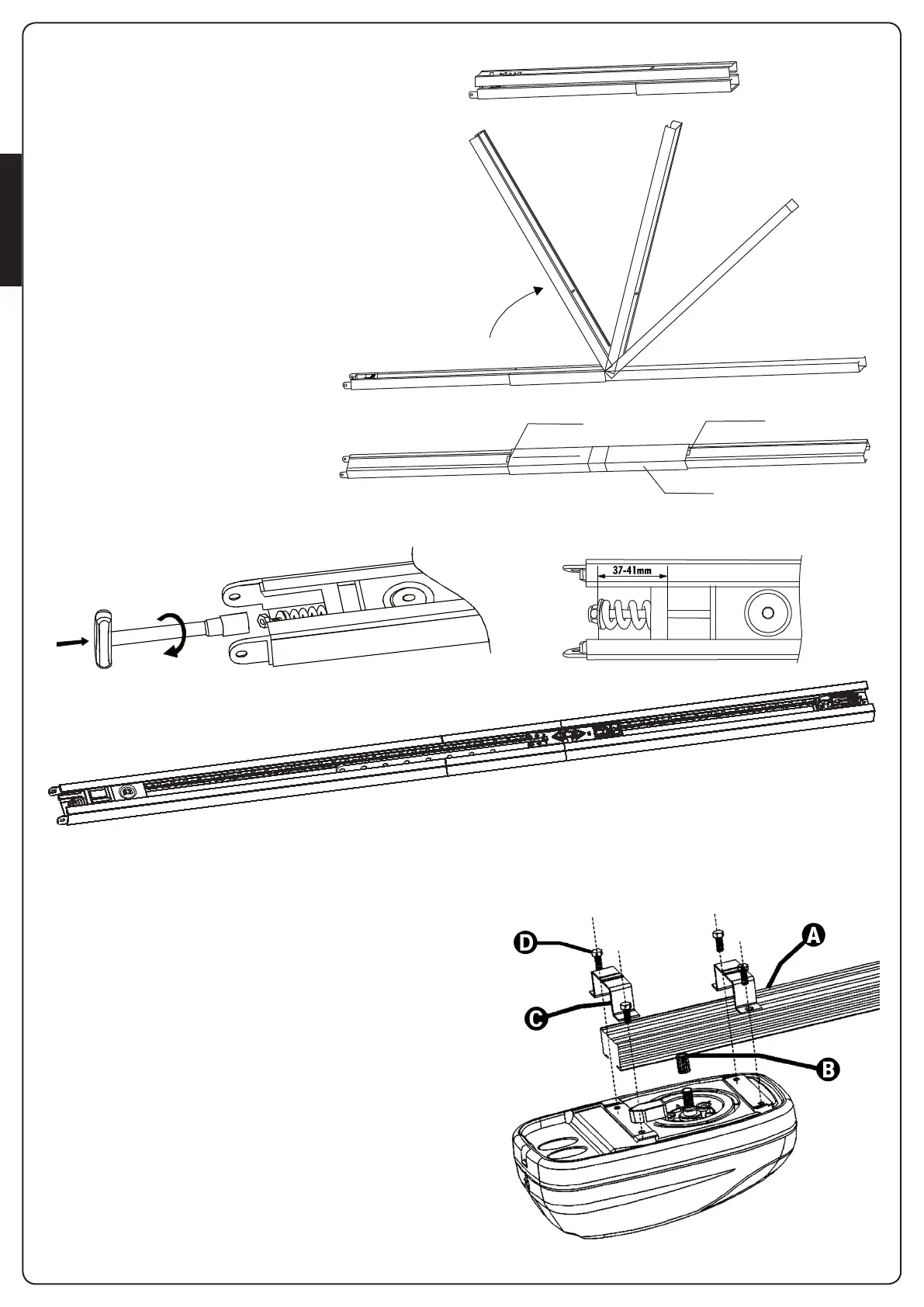

1. Remove the section bar from its
cardboard packaging and check its
integrity.
2. Unfold the section bar as indicated in
the figure below.
3. Once the section bar is elongated, slide
the connecting section bar R to the end
position indicated by the two holes Q
on the chain-guide section bar.
4. Adjust the tension of the chain using
the Allen-head screw with a 10 mm
Allen-wrench: turn the bolt until the
chain is sufficiently tight.
m CAUTION: Make certain that the
draw slide slides freely along the entire
length of the guide. Eliminate any
friction prior to proceeding with the
next phases of installation.
Q
Q
R
5 - INSTALLATION OF MOTOR ON
SECTION BAR
1. Insert the shaft/pinion adapter on the motor shaft.
2. Position the section bar A on the motor: the shaft/pinion
adapter B must fit into the seat on the section bar. Verify that
the section bar fits snuggly against the motor.
3. Position the two omega brackets C on the section bar so that
they correspond with the holes on the base of the motor.
4. Fasten the two omega brackets using the 6 x 15 self-threading
screws provided D.
m In case of lack of space, the motor can be mounted
rotated of 90°
