Chapter 6
______________________________________________________________
Maintenance
VAISALA
_______________________________________________________________________
89
2.
Remove the PWC15PB protection board by opening the two
screws shown in
Figure 22
below.
1206-032

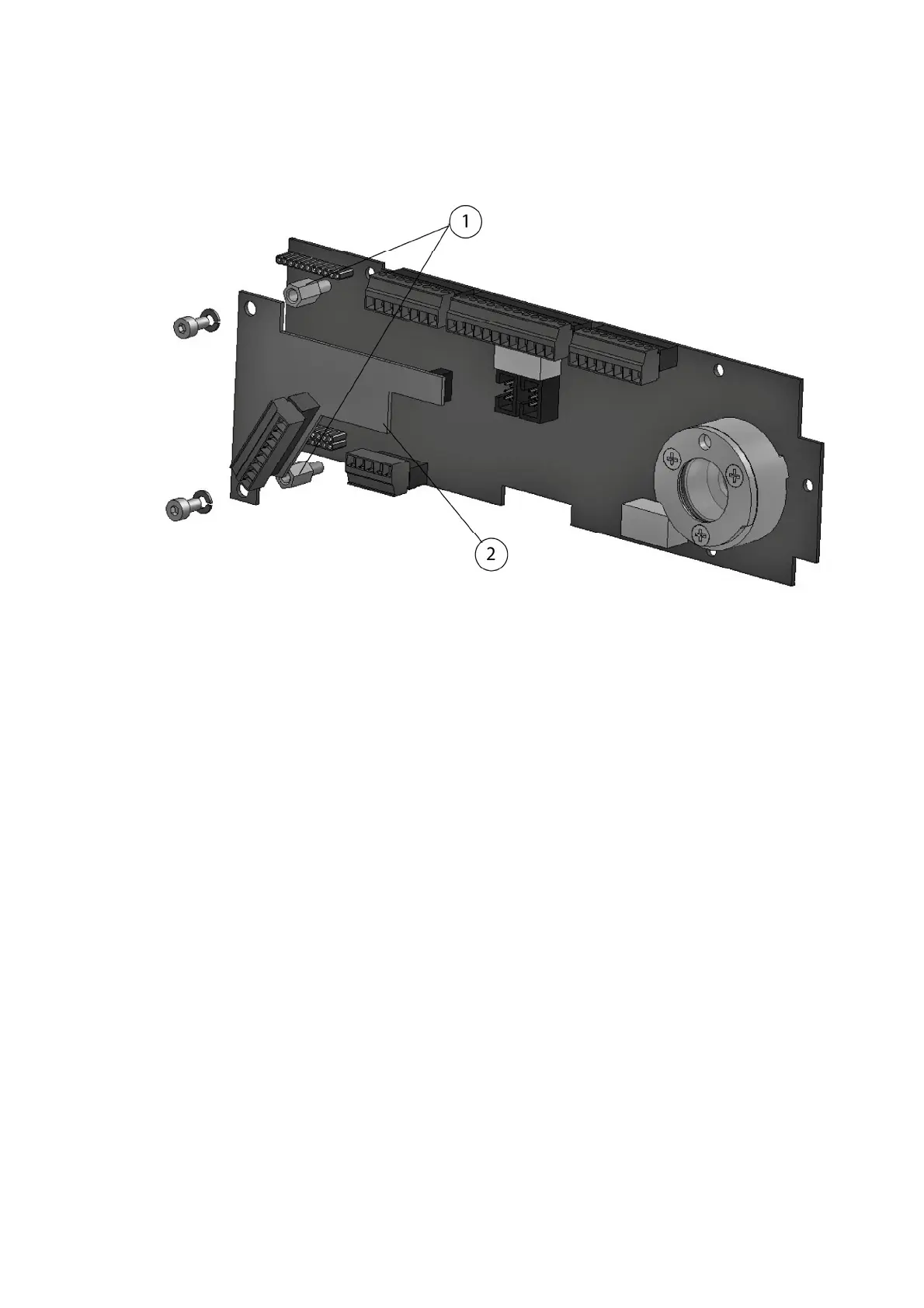

Figure 22
Removing the PWC15PB Protection Board
The following numbers refer to
Figure 22
above
1 =
Screws
2 =
PWC15PB
90
92
