Valtra T144 - Euro Pick-Up Hitch

2)
Mathematically established horizontal force
6.14.6.2 Euro pick-up hitch
NOTE: The loadings are applicable to all tires.
Hitch or drawbar
Replaceable
Maximum permissible vertical loading for the tow
hook and K80 ball hitch
3000 kg
1)
Pick-up hitch height from the ground (lowest position
and tyre radius R=925 mm)
208 mm
D-value
2)
• Hook: 87.7 kN
• K80 ball: 84.8 kN
• Drawbar: 62.3 kN
Drawbar pin diameter
32 mm
Drawbar eye standard for towing hook ISO 5692-1 or ISO 20019
Drawbar eye standard for drawbar ISO 5692-1, ISO 5692-2, ISO 8755, ISO 1102
Drawbar eye standard for 80 mm ball hitch ISO 24347
1)
Maximum loading is applicable to all tires
2)
Mathematically established horizontal force

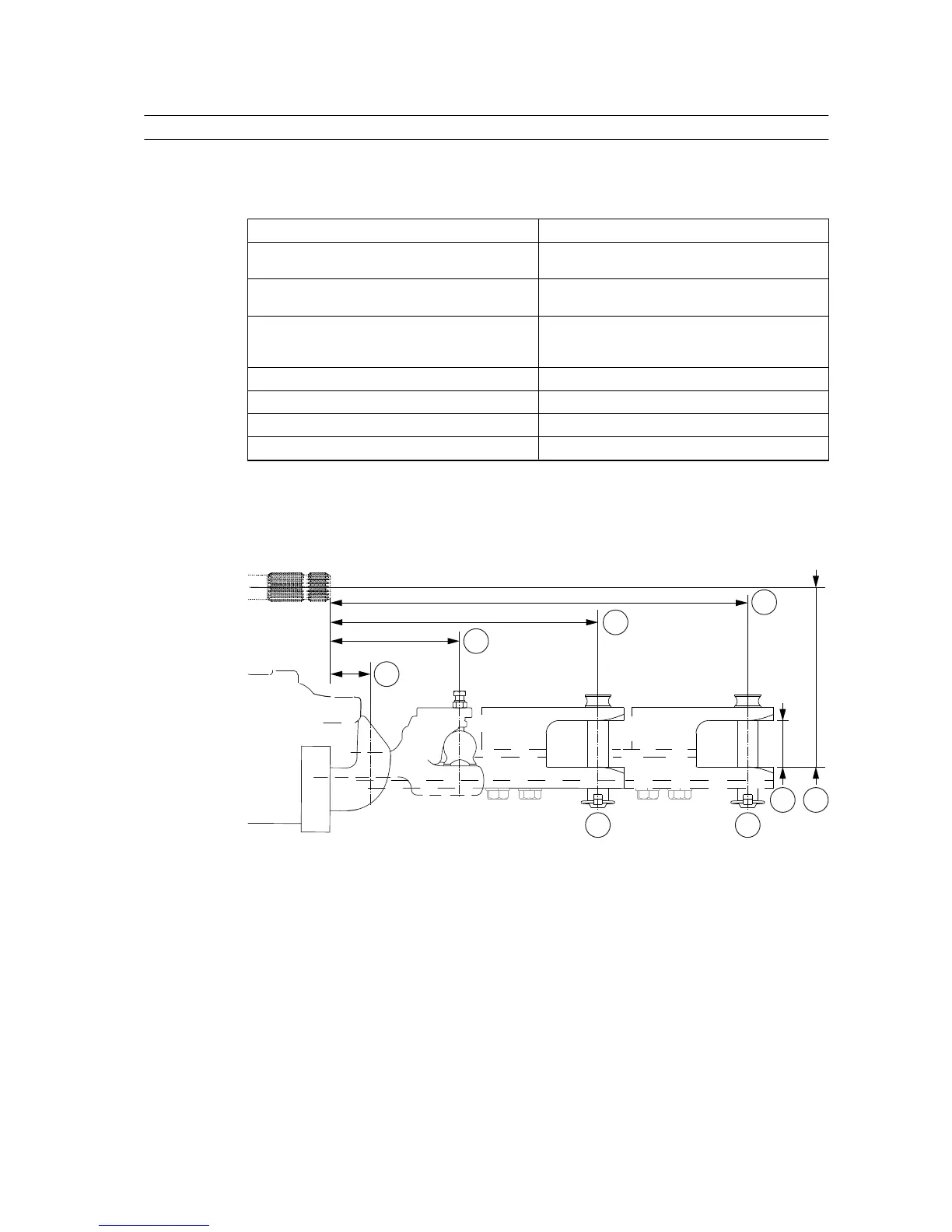

The horizontal distances of the pulling point from the power take-off (PTO) shaft
and the maximum vertical loadings:
4
1
2
7
8
5
6
3
GUID-E8042FDA-A43D-4679-A1CD-24FBF8C9CF49
1. 400 mm
2. 250 mm
3. 172 mm
4. 62 mm
5. 72 mm
6. 280 mm
7. S=2000 kg
8. S=1200 kg
