2.1 CP/MAS Solids Modules
01-999162-00 C0402 VNMR 6.1C User Guide: Solid-State NMR 18
• Enable high power amplifier operation
Place the LO BAND amplifier switch in the HI POWER position (an orange LED will
illuminate) and enable high power with the silver button.
• Disable the high power amplifier operation
Place
LO BAND amplifier switch in the LO POWER position and press the red button.
If a 300 W lowband amplifier is present in the console it will now be enabled.
Low-band amplifiers operate in either pulsed or CW mode. The operation mode is
controlled by the ampmode parameter. When the parameter ampmode is not present the
amplifier is set in the default (CW) mode (ampmode = ‘c’ or ‘d’) which is correct for
CP/MAS experiments.
Fine Attenuators
UNITY
INOVA and UNITYplus Systems
The standard
UNITY
INOVA
and UNITYplus system
transmitter board
provides fine power
control over a range of 0
to 60 dB in 4095 steps.
Output in voltage or field
strength is linear and
quadratic in power. The
attenuator control in dB
is shown in Figure 1. A
rough rule is; for a 2 fold
change in fine power
there is a 6 db change in
the coarse power (tpwr or dpwr). Power is controlled using the parameters: tpwrf,
dpwrf, dpwrf2, and dpwrf3. Aliases of these parameters ending in m rather than f are
used in some pulse sequences, including XPOLAR1. The parameters crossp and
dipolr in XPOLAR1 are two different values that set dpwrf during the cross
polarization and decoupling periods respectively.
MERCURYplus and MERCURY-Vx Systems
The transmitter board
provides fine power
control over a range of
0 up to 40 db in 255
amplitude steps using
the parameters tpwrf
and dpwrf. Output in
voltage or field strength
is linear and quadratic in
power. The attenuator
control in dB is shown in
Figure 2.
3
6
4
2
4
8
5
4
6
0
30
35
40
45
50
55
60
65
0 1000 2000 3000 4000
Attenuator Value
dB

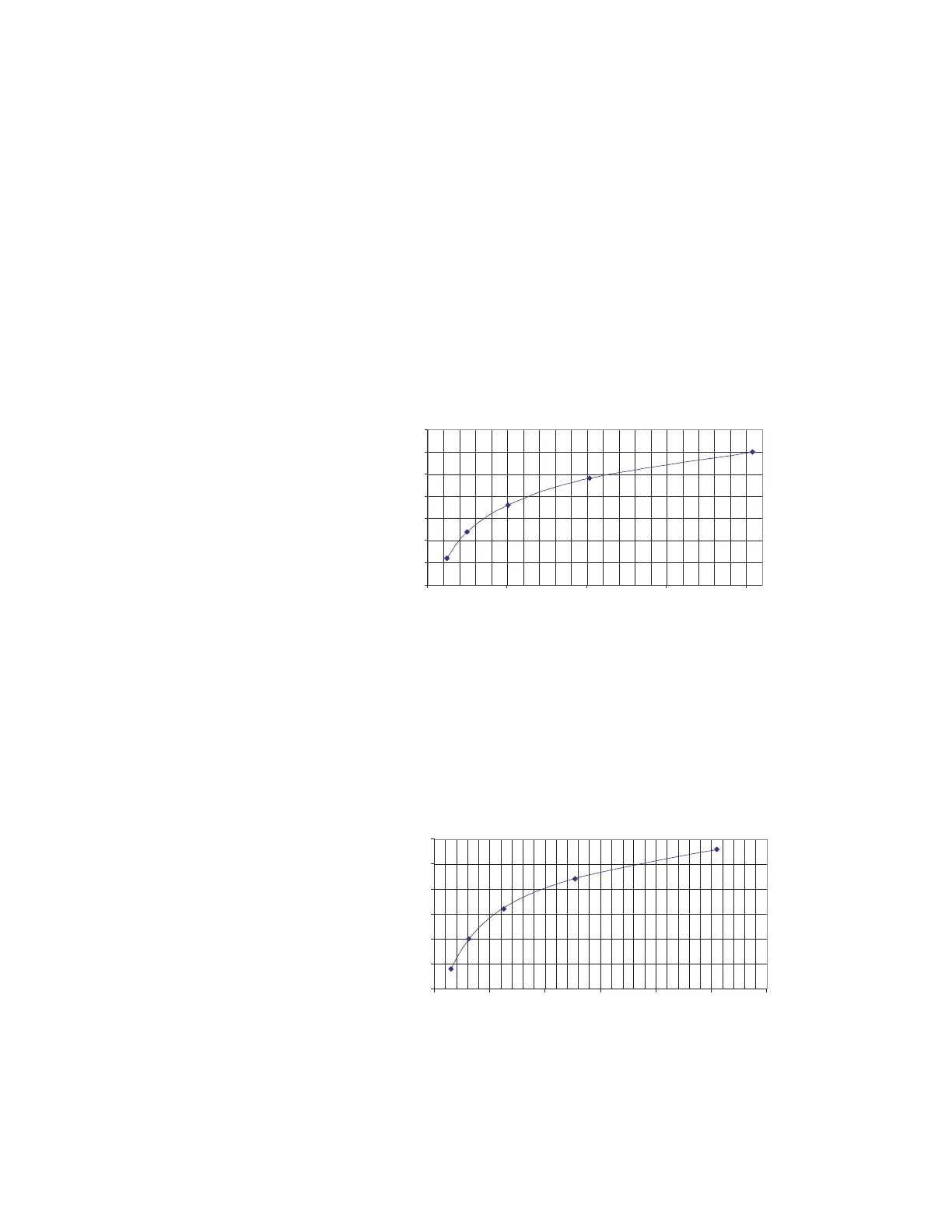

Figure 1. Attenuator Control Graph for INOVA Systems
24
30
36
42
48
20
25
30
35
40
45
50
0 50 100 150 200 250 300
Attenuator Value
dB
Figure 2. Attenuator Control Graph for Mercury Systems
