OPERATION
Series
642
78/107 Edition 2017-11-24 813316EB

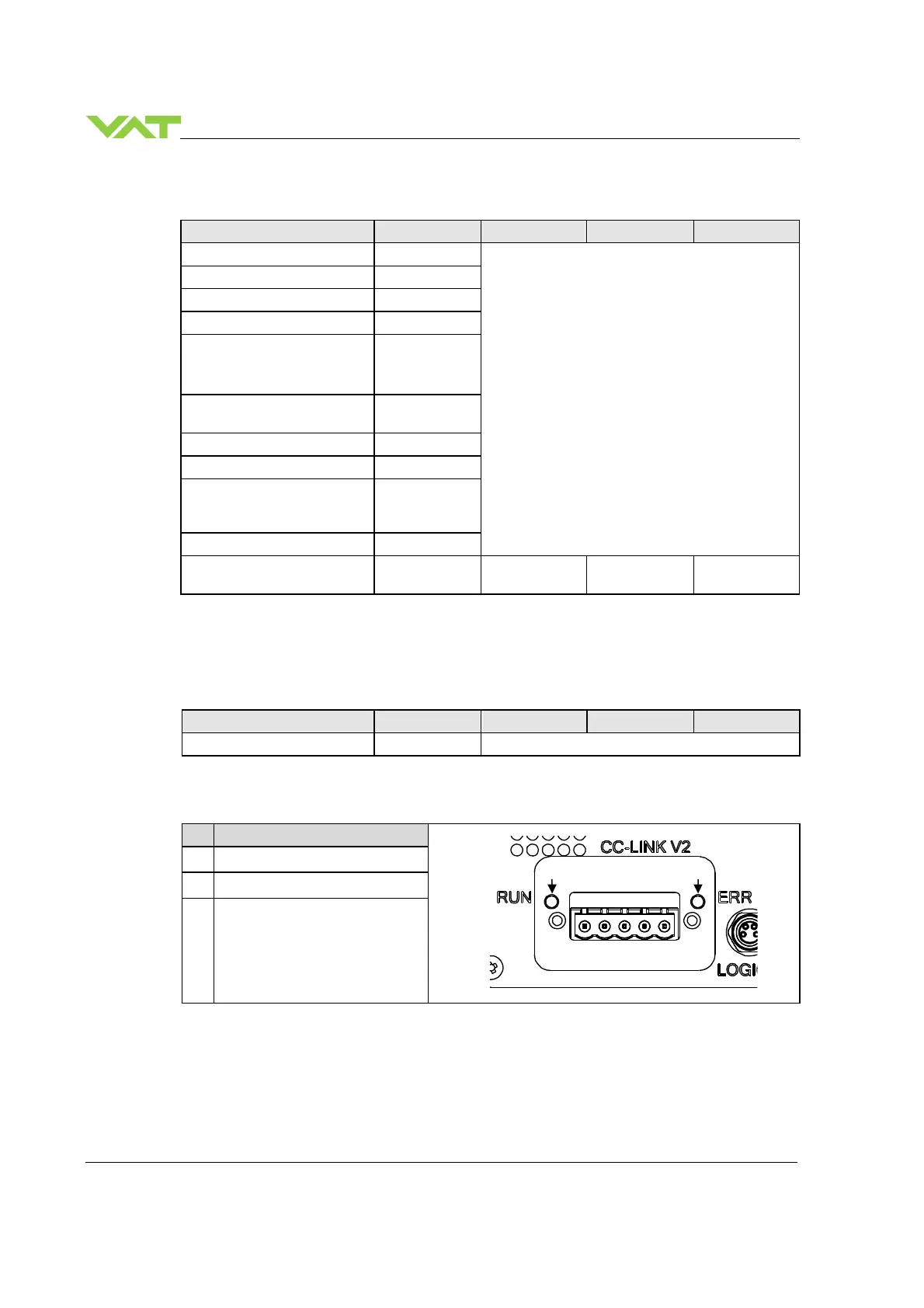

5.6.2 Operation
Description / Mode Digit 1 Digit 2 Digit 3 Digit 4
PRESSURE CONTROL mode
P
0…100
= valve position (%, 0 = closed / 100 = open)
POSITION CONTROL mode
V
Valve closed
C
Valve open
O
Closed / open interlock
(Valve closed / open
by digital input)
I
HOLD (position frozen)
activated
H
ZERO running
Z
LEARN running
L
Safety mode established.
Refer to «Safety mode» for
details.
D
Power failure
F
Service request
1)
(valve
requires cleaning)
S R
1)
If SR is blinking alternatively with the actual mode display (e.g. P.11 ⇔ ..SR) the valve requires
cleaning.
5.6.3 Fatal error
Description Digit 1 Digit 2 Digit 3 Digit 4
Fatal error occurred
E
Error code. Refer to «Trouble shooting» for details
5.6.4 CC-Link LEDs
# Item
1
Run LED
2
CC-Link Interface connector
3
Error LED
1 3
2
