4.5.5 CC-Link interface connection

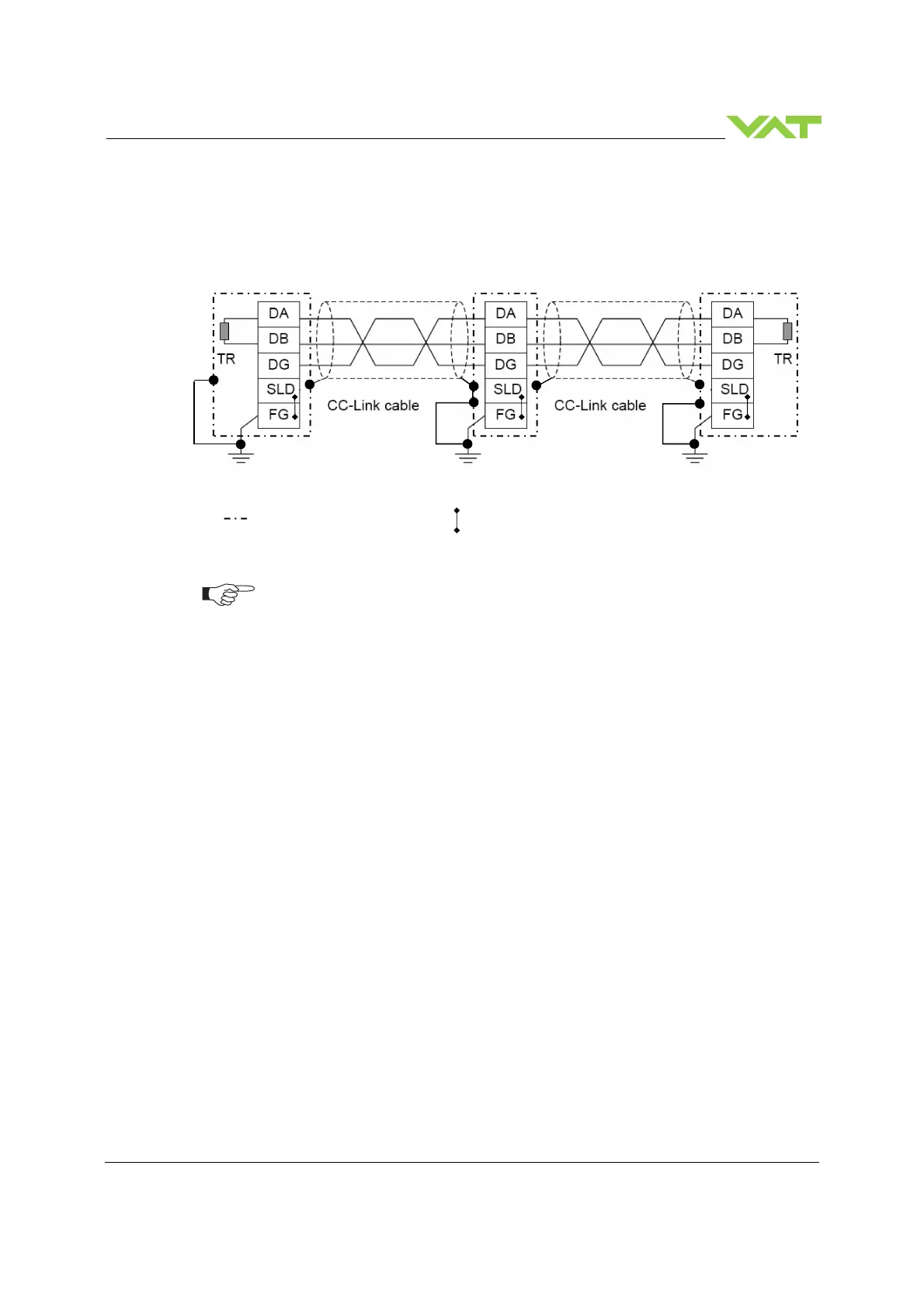

4.5.5.1 CC-Link cable installation (example)
The valve can be defined as «first station», «…stations…» between first and last, or «last
station».
If the valve at first or last station, «TR» must be installed between 1 (DA) and 2 (DB).
The station type for VAT valves are: Version 2 Remote Device Station.
PE = Protective Earth
= Connector housing
PE PE
= Internal connection between «SLD and FG»
TR = Terminal resister (Must be compatible to used CC-Link cable version!)
first station … stations … last station
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
