VAT 642 Series - Logic I;O

Series 642 INSTALLATION
813316EB Edition 2017-11-24 35/
107
4.5.6 LOGIC I/O
This interface allows for remote operation by means of a command set based on the CC-Link protocol.
In addition there is a digital input and a digital output. Digital input may only be operated by a switch.
Active
digital input
has:
higher priority than CC-Link commands
higher priority than Local commands

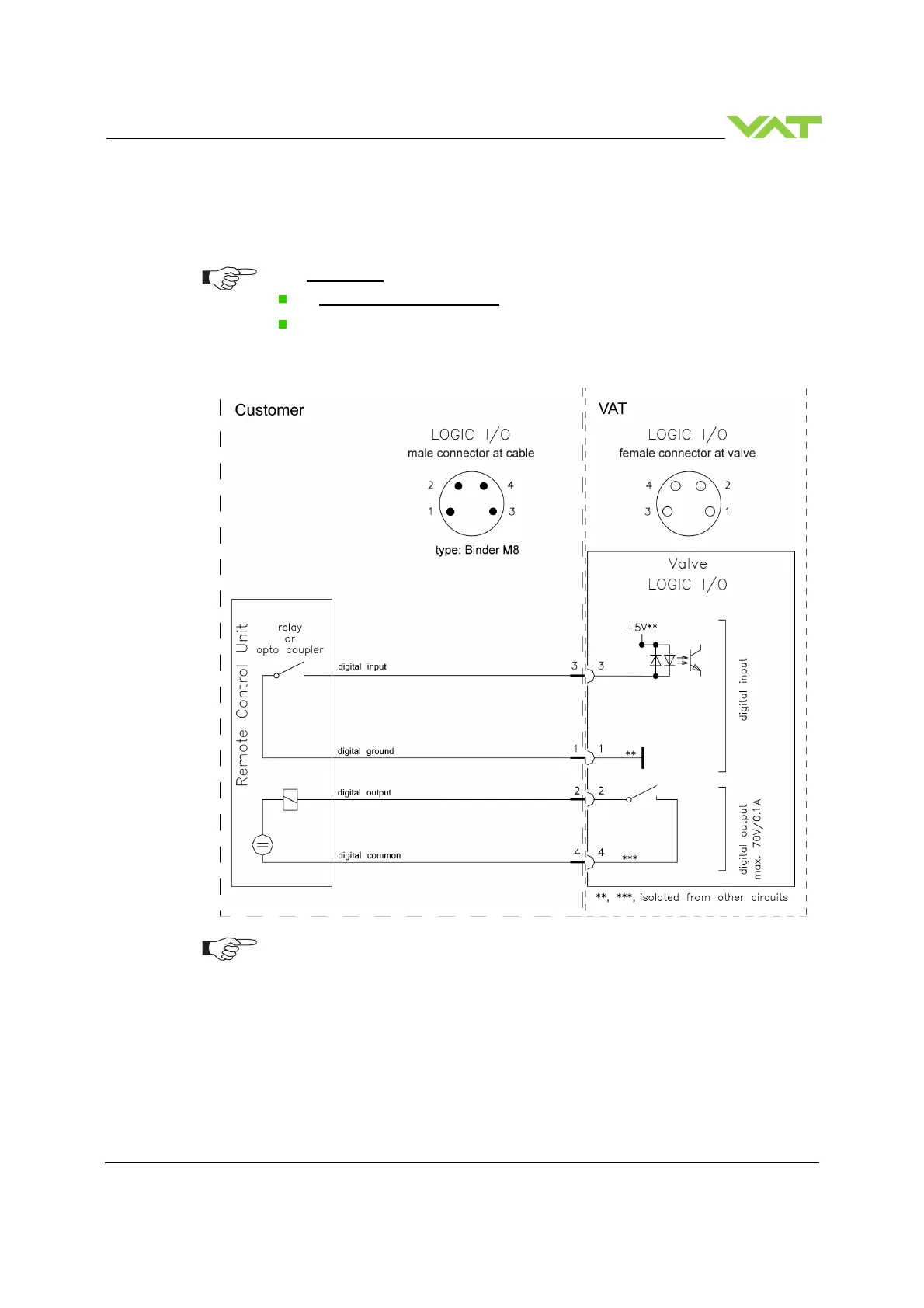

Configuration with switch for digital input:
Do not connect other pins than indicated in the schematics above! Connector type:
Binder M8 (99-3363-00-04).
