4. Installing the Equipment: Base Stand (Optional)
PaX-i Plus / Insight Installation Manual 47

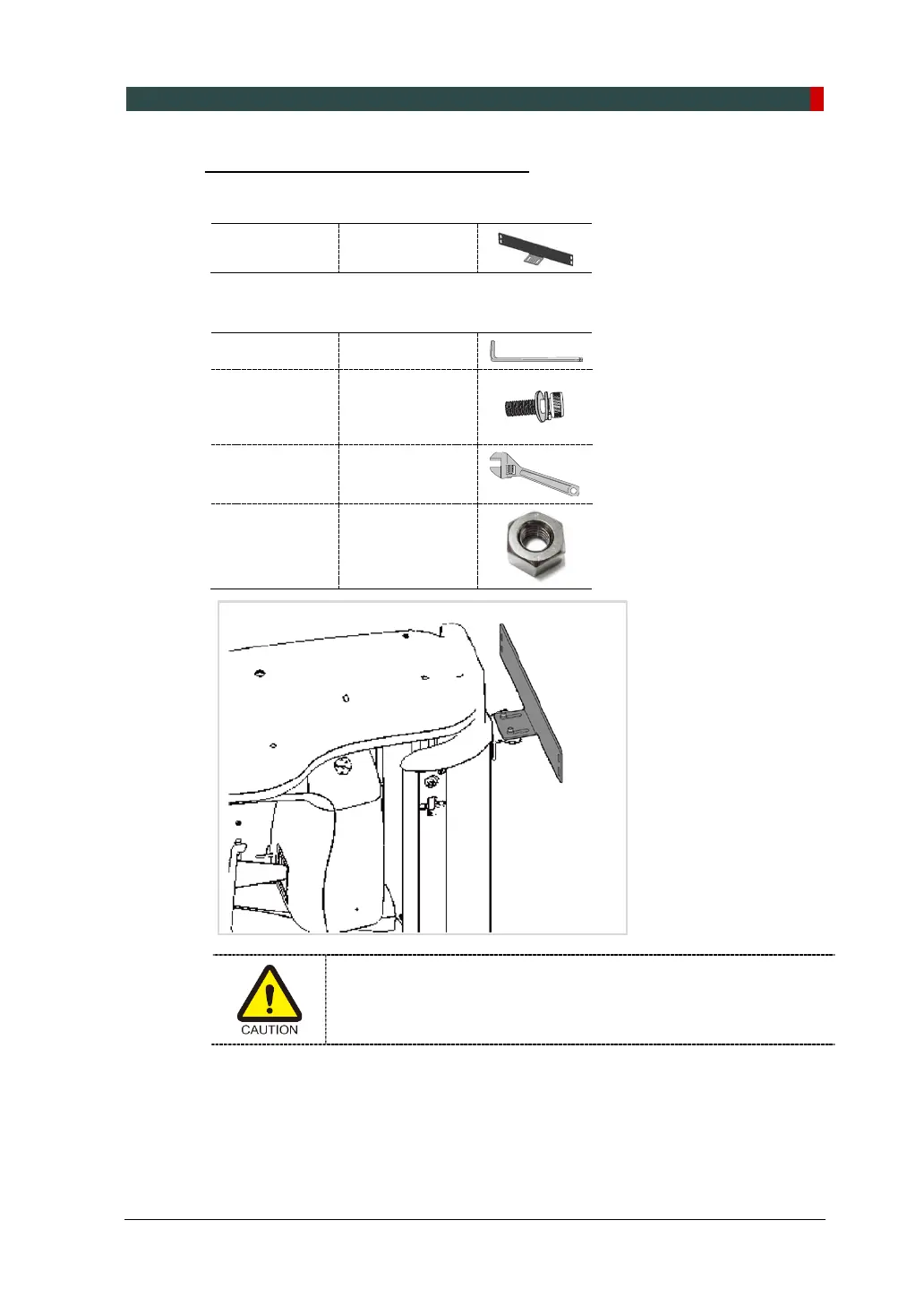

Combining Column and Wall Brackets
1. Prepare the wall bracket.
Wall Bracket (Part No. 35)
2. Combine the column and wall brackets in the following manner with the 2 Wrench
Bolts.
Allen Wrench 6 mm / 0.24”
Wrench Bolt
M8 x 25 w/
Spring and Flat
Washers
(Part No. 34)
Monkey
Wrench
n/a
Nut
M8
(Part. No. 34)
Do not tighten the bolts fully yet.
