Initial Setup Of The Console Using Workflow Wizard Setup>Tank>HRM Limits (International Option)
34

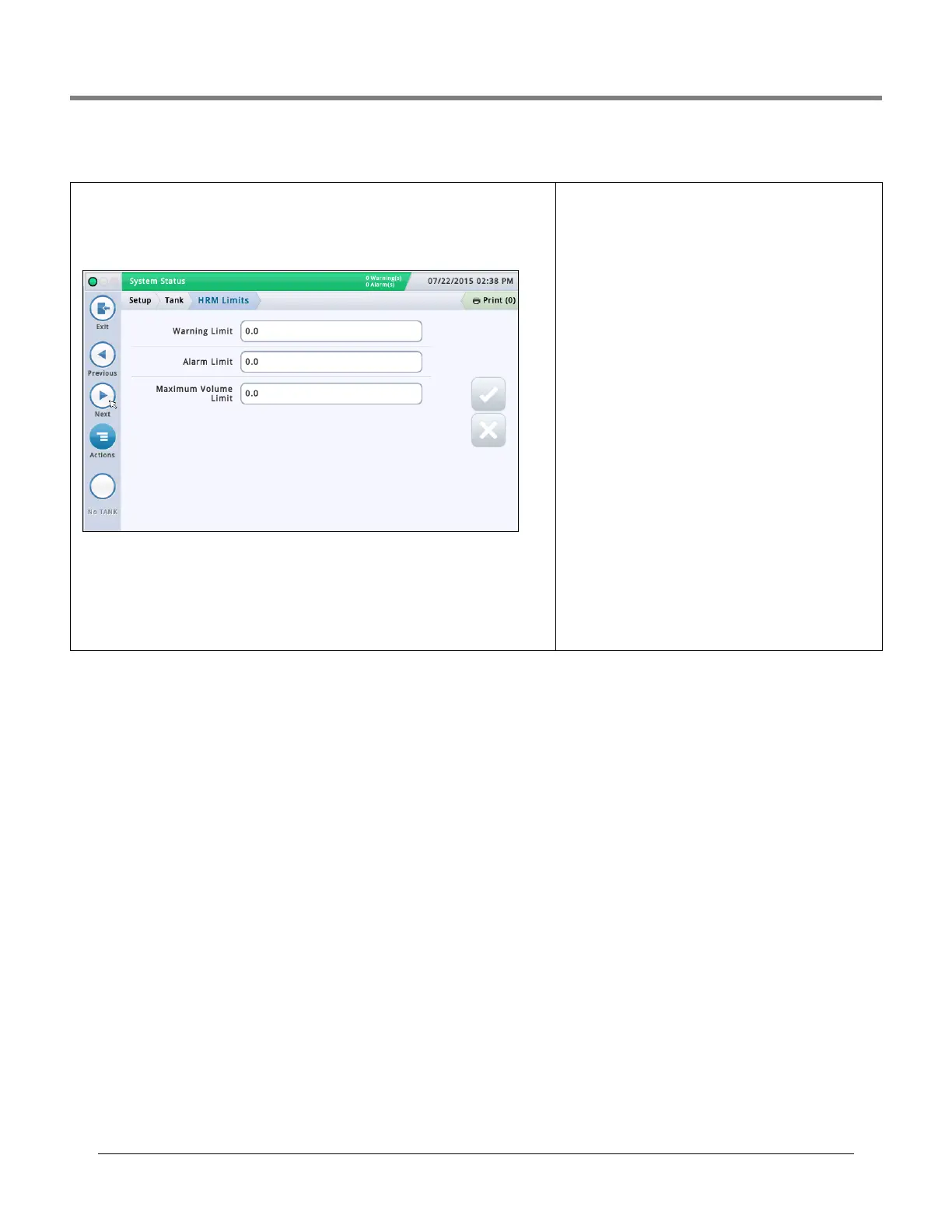

Setup>Tank>HRM Limits (International Option)
When running the BIR program, the system has the capability to run in HRM mode, which
provides hourly reconciliation results. HRM is used in countries that use metric mode.
When a console is in HRM (Hourly Reconciliation Monitoring) mode, a tank Maximum Volume
Limit threshold is imposed. This screen lets you view and set three HRM volume threshold
alarms.
Warning Limit
An hourly limit in the variance in inventory, that when exceeded generates a warning.
The default warning limit is 3 litres. Min. value is 1 litre and max. value is 400 litres.
Alarm Limit
An hourly limit in the variance in inventory, that when exceeded generates an alarm. The
default warning limit is 4 litres. Min. value is 1 litre and max. value is 400 litres.
Maximum Volume Limit
An hourly volume limit in inventory, that when exceeded gen-
erates an alarm.
The minimum entry and default for this field is Tank Capacity
minus 500 litres. Since the user-entered Max. Volume (Label
Vol.) field in “Setup>Tank>Limits” screen is set to 100%
tank capacity, the HRM Maximum Volume Limit value entered
in this field will take precedence for Max Volume Alarm and
for computing ullage values.
The allowable range for this field is 500 to 999,999,999
litres.
Other notes: The default 500 liter limit is programmed as
132 gallons. In metric mode this gets displayed as 499.674.
Changing the US limit to 132.09 will display as 500 liters.
There is no need to display resolution lower than 1 liter.
