Console Touch Screen Overview
The following section console features, touch screen layout and how to access and navigate the setup procedure using the
touch screen controls.

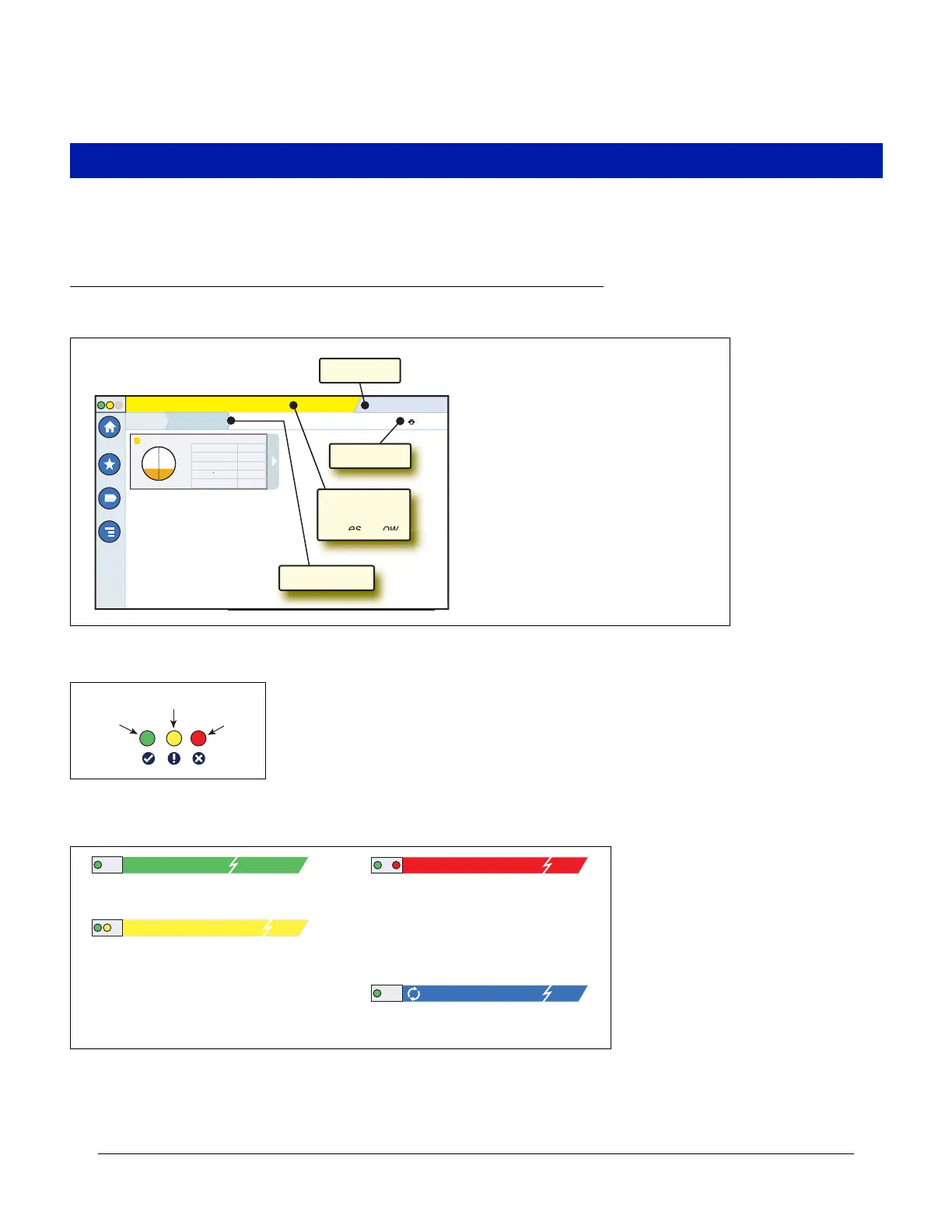

Console Home Screen
An example Tank Overview Screen (Default Home Screen) is shown below which has 2 Tanks Monitored and 1 active
Warning
Front Panel Status Lights
Example Touch Screen Status Bar Notifications
T 1: DELIVERY NEEDED 01/20/2016 06:01 PM
Tank Overview
TANK 1: reg
Fuel Volume 3655
Fuel Height 38.6
Ullage 100% 6345
Temperature 61.9
Water Height 3.0
1 Warning(s)
0 Alarms(s)
Print (0)
Home
Favorites
Menu
Actions
Overview
!
See Example
Status Bar
Types Below
Bread Crumbs
0
1/20/2016 06:01 P
M
1 Warning
(
s
)
0
Alarms
(
s
)
P
rint
(
0
)
S
ee Exam
p
le
Status Bar
Status
Bar
Ty p
es
Bel
ow
Date & Time
Print Button
Normal
Warning
Alarm
SYSTEM STATUS
0 Warning(s)
0 Alarms(s)
SAVING
0 Warning(s)
0 Alarms(s)
T2: DELIVERY NEEDED
1 Warning(s)
0 Alarms(s)
L 10: FUEL ALARM
0 Warning(s)
1 Alarms(s)
Power On to console and no warnings or
alarms from system.
System tasks message bar.
Something needs to be reviewed and/or assessed. In
this state, touching the status/warning bar brings you
to the Reports > Alarms > Active screen so you can
see the cause of the warning. While in that screen,
touching the status/warning bar again acknowledges
the warning and shuts off the beeper.
Something needs to be acted upon immediately. In
this state, touching the status/warning bar brings you
to the Reports > Alarms > Active screen so you can
see the cause of the alarm. While in that screen,
touching the status/warning bar again acknowledges
the alarm and shuts off the beeper.
