OTDR Series e-Manual, D07-00-076P-RevC00 Page 23 of 107
5.5.3.1 View/Hide side menu panels
The left and right panels of the display provide icons to access key functions of the FX150.
These panels can be turned on or off to enable a better view of the application screens.
Use the shift keys located on the left and right sides of the unit to toggle on/off the left
and right menu panels.

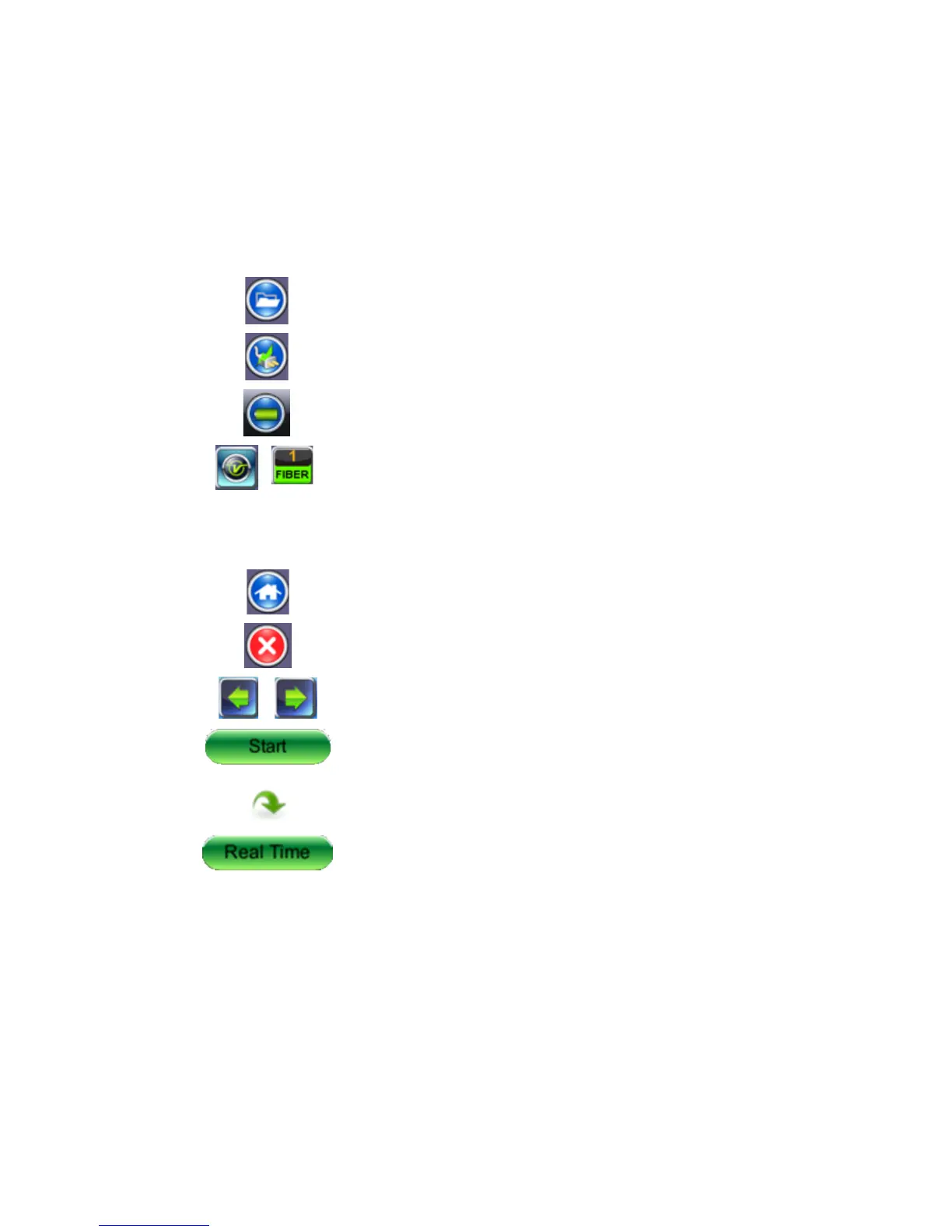

Press the LEFT SHIFT KEY to access:
File Storage – Tap to see the size and current capacity
of the internal SSD storage.
Power Source Indicator– Indicates when unit is
powered by external AC power and battery charging
level. Tap to see battery charge status.
V key / Fiber – Tap to access all Fiber Test Modes or
access the Utilities screen.
Press the RIGHT SHIFT KEY to access test control buttons and the following:
Home – Tap to return to the OTDR Main Menu.
Escape/Exit – Tap to return to the previous screen.
Arrow – Tap to enter the unit System Settings and Tools
Start – Begin trace.
Green arrow – Switch λ active trace
Real Time OTDR – See trace in real time.
