7.6.1 Trace Properties
The traces in the memory are saved in BELLCORE, version 2.0 format. The OTDR trace files
have the extension .sor which means Standard OTDR Record.
These OTDR trace files can be opened by the software of other OTDR vendor applications
provided the format is supported.
If the measurement was performed at several wavelengths simultaneously, the traces are
saved as a group i.e. they will share the same common name but with wavelength added (e.g.
01_meas_1310 and 01_meas_1550, etc.)

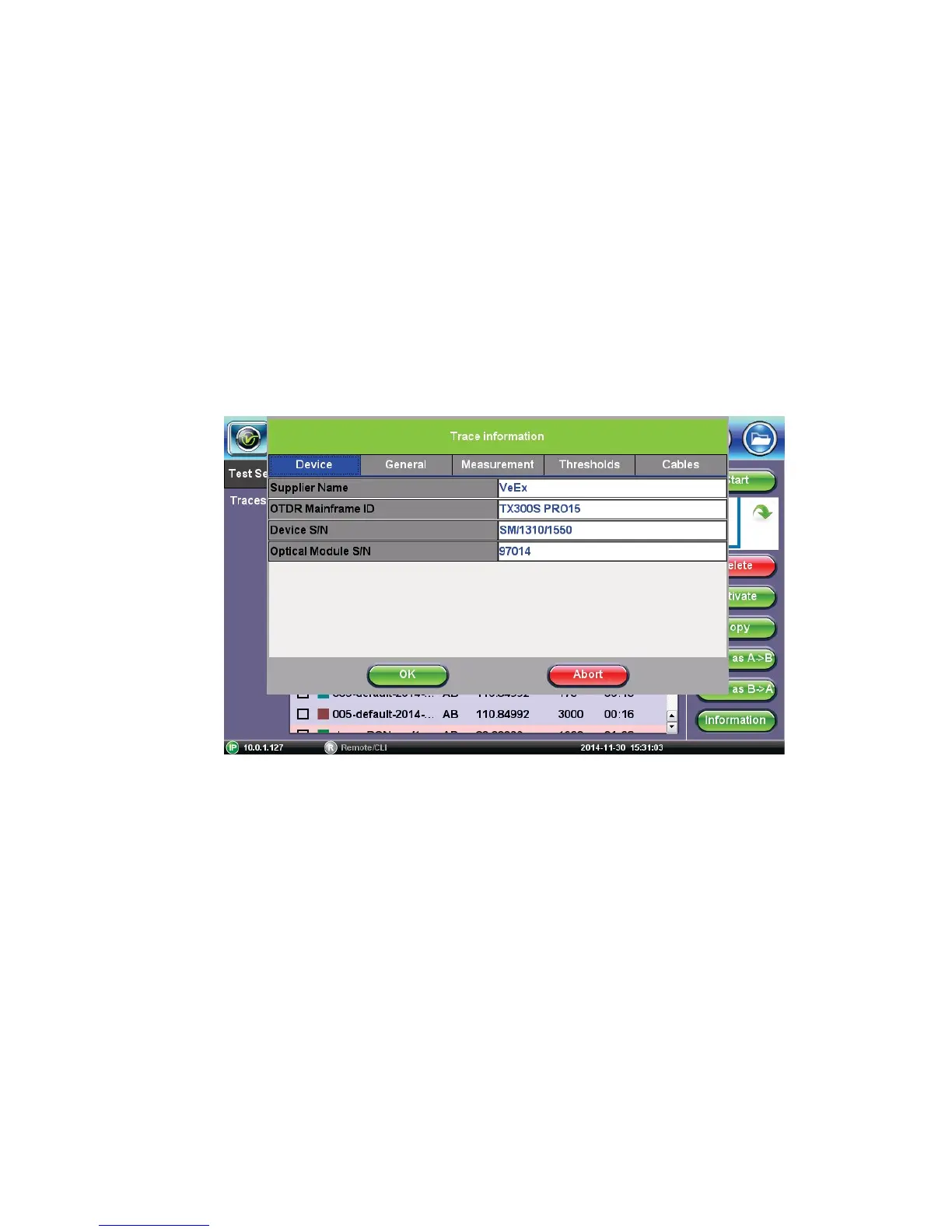

Press the Information button in the right sidebar to open the Trace Information window. The
window contains following information relating to the saved file:
• Device: OTDR supplier name, Mainframe ID and serial #, and optical module serial # (if
applicable)
T
T
r
r
a
a
c
c
e
e


I
I
n
n
f
f
o
o
r
r
m
m
a
a
t
t
i
i
o
o
n
n


-
-


D
D
e
e
v
v
i
i
c
c
e
e
s
s


• General: Date/Time, Job ID, Cable ID, Fiber ID, Group ID, Fiber Type,
Originating/Terminating locations, and Comments
• Measurement: Test parameters used to make measurement
