5.0 Operations
Ver-Mac - May 2011 1210 QuickStep Programming User Manual, Ver 5.0 23
5.5.2 Inserting a Page Containing a Graphic Image (Arrow) Into a Sequence
[ ] Enter > Main Menu > [F2] Sequence

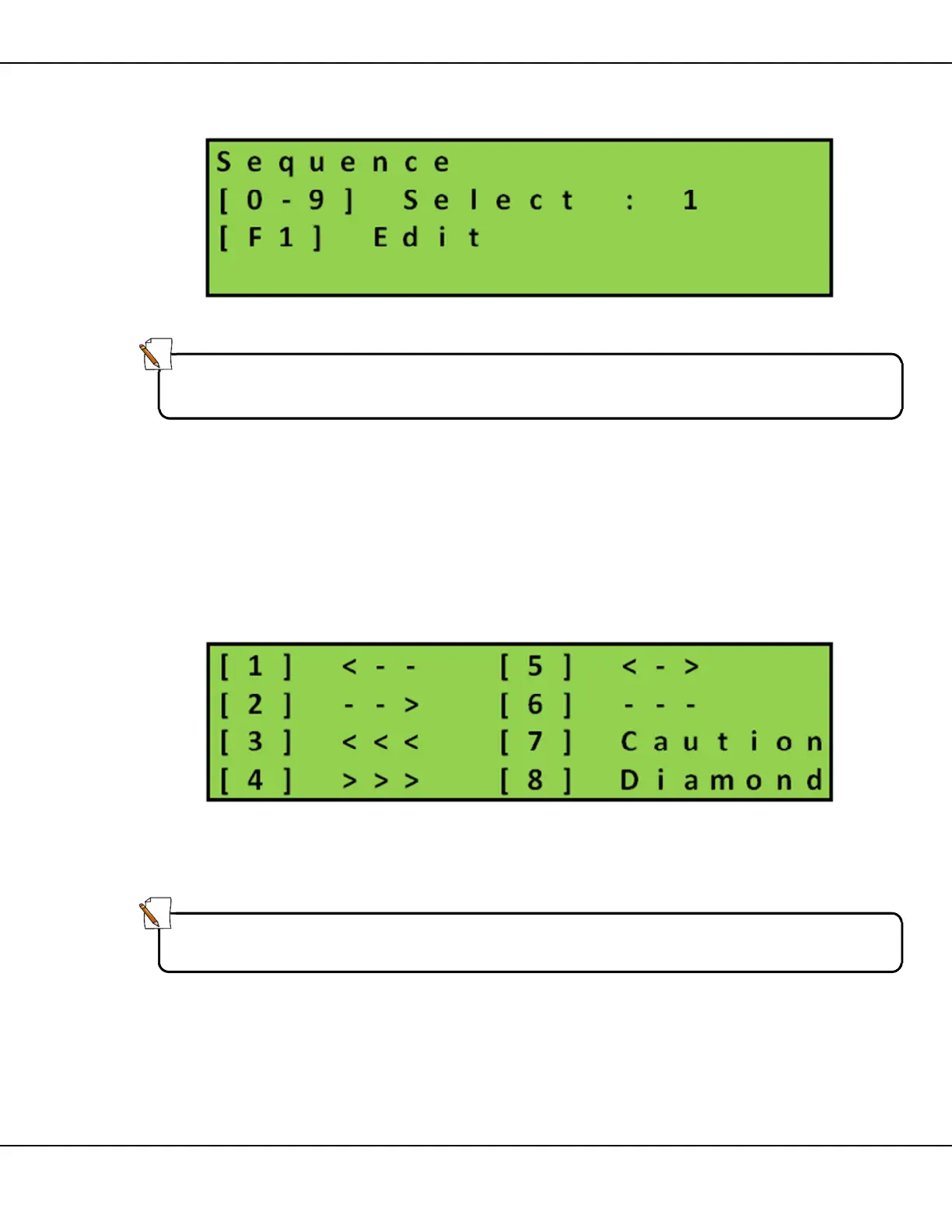

Figure 23 – Sequence Selection Screen
1. Use the keypad to enter number (from 1 – 8 inclusive) of the
sequence for editing
2. Press [F1] Edit to edit the selected sequence
3. Use the [] arrow to select the sequence page where you want
the image to display
4. Press [ ] Enter, followed by the [X] key
Figure 24 – Arrow Selection Screen
5. Select the required arrow or caution signal and then the signal
display option
6. Use [] arrow keys to move to the next page(s) and continue
creating the sequence
7. When complete press [ESC] till you return to Sequence page #1
screen. Then press [ESC] one more time to update and run the
altered sequence
Note:
Select Sequence 0 and stop the currently running sequence before editing a
message or sequence.
Note:
See Section 5.6 for additional information.
