REV : 4
REV DATE : 3/21
DPN003882
Page :1 /1

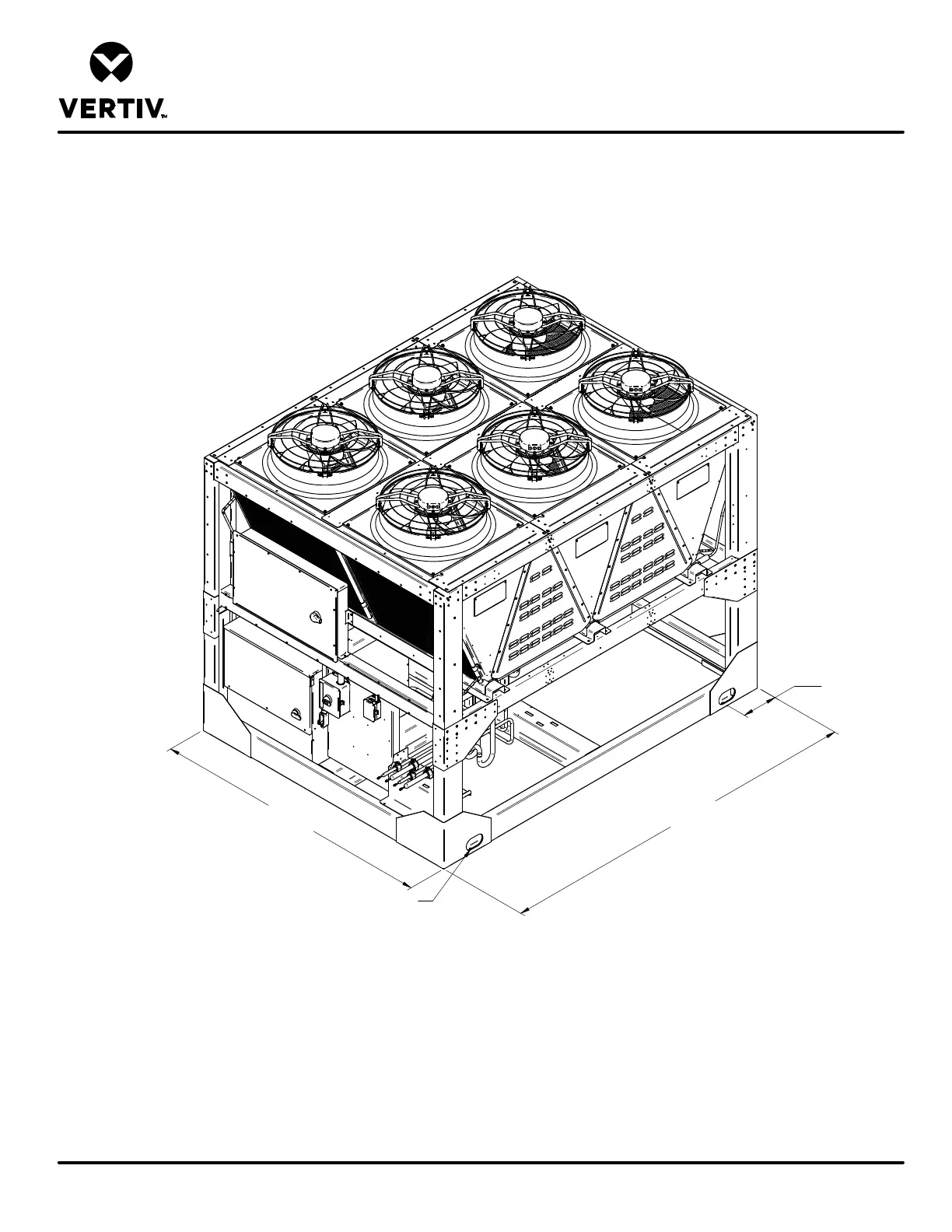

LIEBERT® MCV MCV330 + LIEBERT® ECONOPHASE + BASE ASSEMBLY
Form No.: DPN001040_REV4
CABINET LIFTING POINTS
LIEBERT
®
HEAT REJECTION SKID
13"
330mm
TYP.
Note:
1. Use indicated lifting points to lift the unit. Use spreader bars and/or shimmed blocks to prevent external damage.
2. Sections must be lifted level. Tilting can cause damage to the equipment inside.
3. Use proper rigging equipment to make sure attachment and lifting at the designated lift points is in the vertical direction.
-Refer to User Manual for site instructions.
4" X 7"
(102mm X 178mm)
Lifting Points
Typ. (4) Places
132 1/4"
3358mm
101 1/4"
2570mm
