REV : 2
REV DATE : 5/20
DPN004258
Page :1 /1
MCV440 + LIEBERT® ECONOPHASE + BASE ASSEMBLY
Form No.: DPN001040_REV4

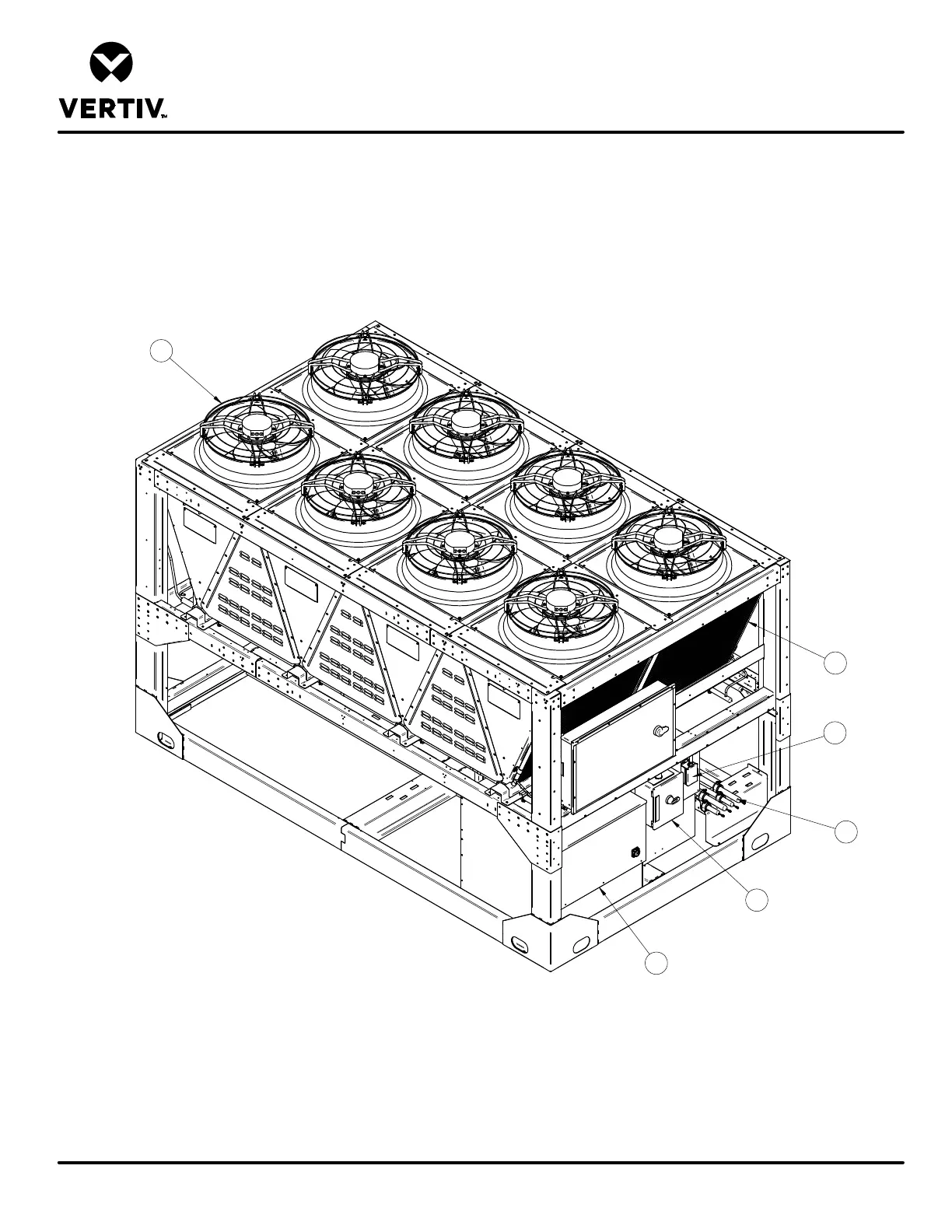

COMPONENT LOCATION DIAGRAM
HEAT REJECTION SKID
1. Coils
2. EC Fans
3. Liebert® Econophase Pump
4. High voltage customer connection
5. Low voltage customer connection
6. Piping connections
Note:
1. Piping connections for entire assembly are in one
location (item 6).
2. Electrical connections for entire assembly are located
in high voltage customer connection boxes (item 4)
and low voltage customer connection box (item 5).
Front
5
4
3
6
1
2
