MCV440 (2) + LIEBERT® ECONOPHASE (2) + BASE ASSEMBLY
Form No.: DPN001040_REV4

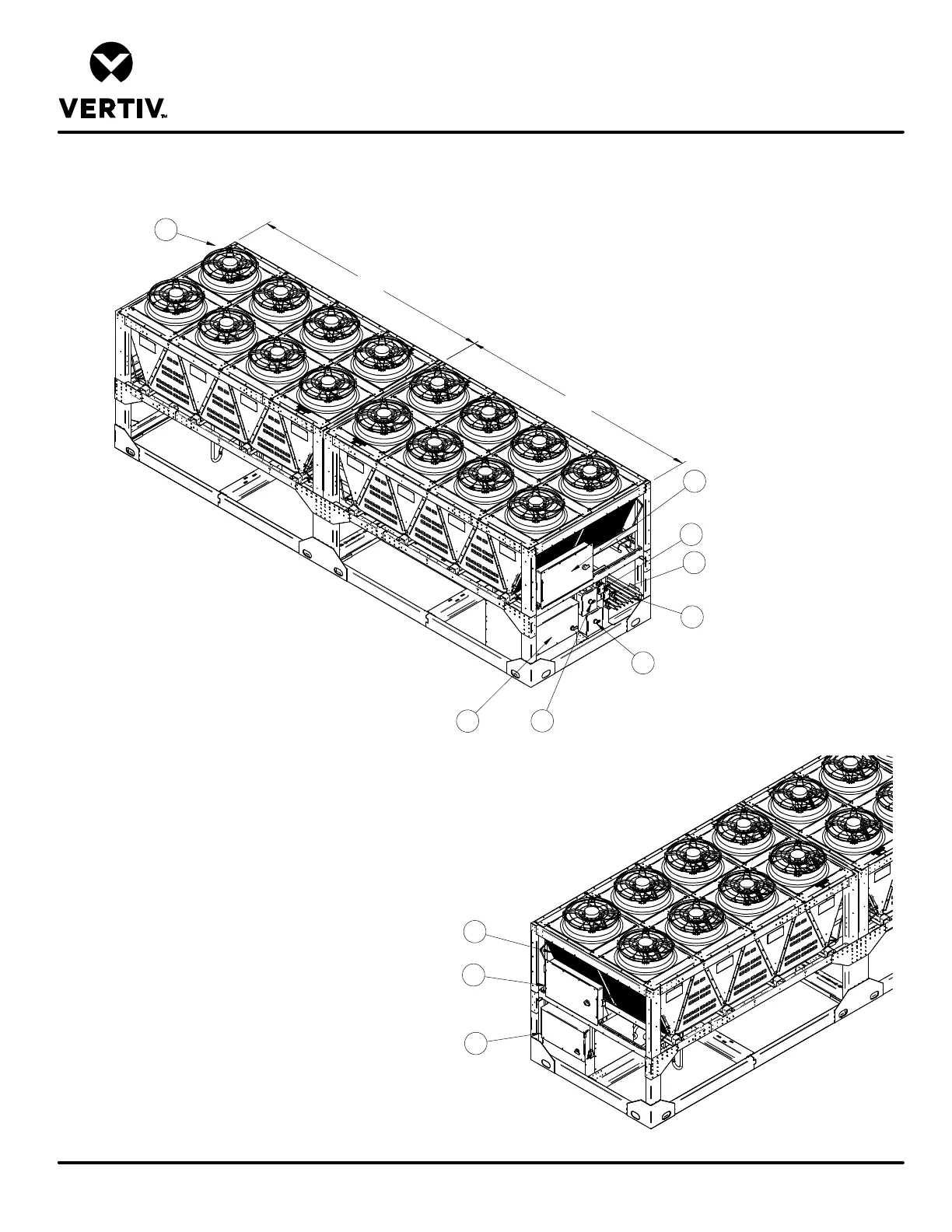

COMPONENT LOCATION DIAGRAM
HEAT REJECTION SKID
1
5
1. MCV440 Electric Panel System 1
2. MCV440 Electric Panel System 2
3. Coils
4. EC Fans
5. Liebert® ECONOPHASE- System 1
6. Liebert® ECONOPHASE- System 2
7. High voltage customer connection System 1
8. High voltage customer connection System 2
9. Low voltage customer connection System 1
10. Low voltage customer connection System 2
11. Piping connections Systems 1&2
Note:
1. Electrical connections for entire assembly are located
in high voltage customer connection boxes (items 7 & 8)
and low voltage customer connection box (item 9 & 10).
2. Piping connections for entire assembly are in one
location (item 11).
Front
Rear
System 1
System 2
7
8
11
10
9
4
3
2
6
