REV : A
REV DATE : 3/22
10032072
Page :1 /2
LIEBERT® MCV430 (2) + LIEBERT® ECONOPHASE (2)
+ BASE ASSEMBLY
Form No.: DPN001040_REV4

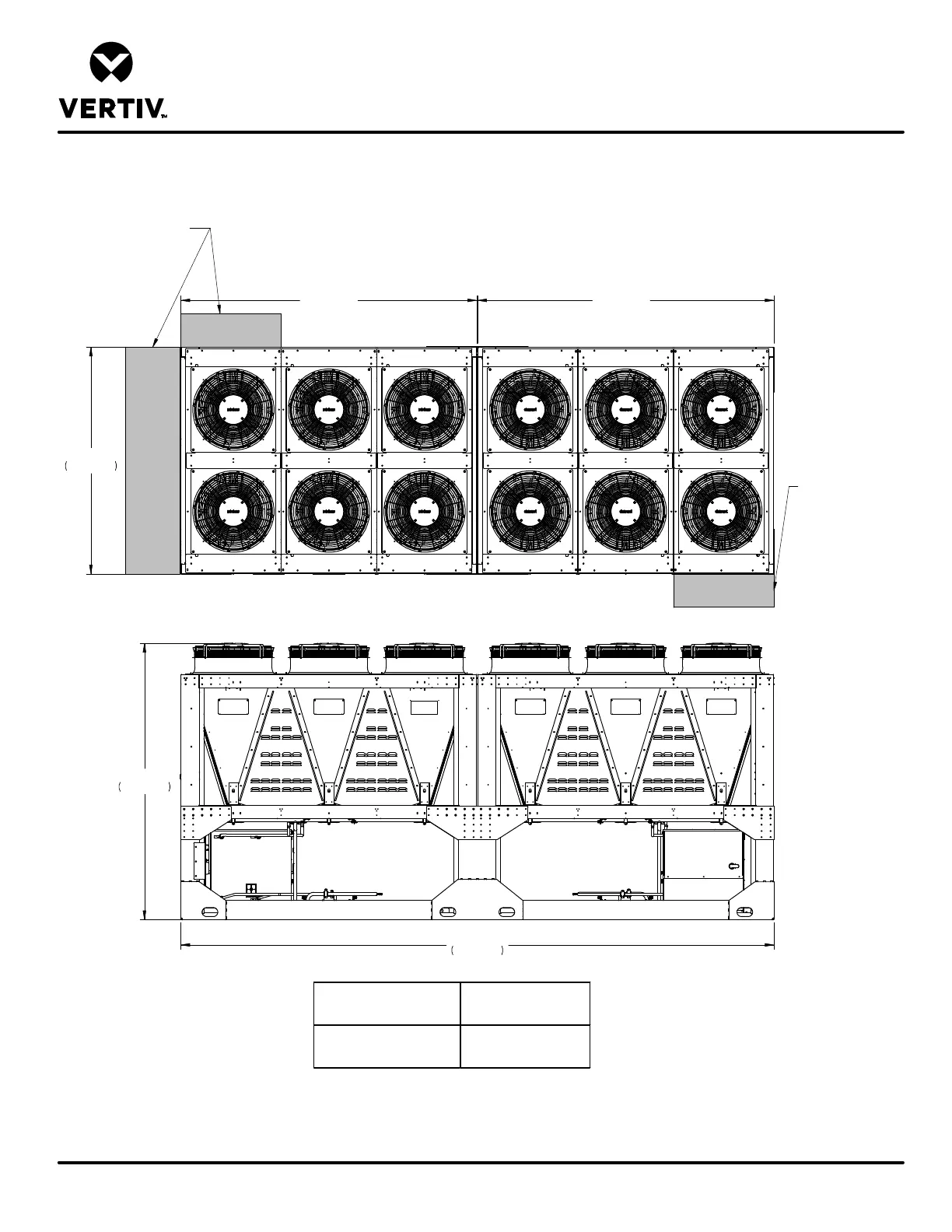

CABINET & ANCHOR DIMENSIONAL DATA
LIEBERT® HEAT REJECTION SKID
Notes:
1. Minimum clearance of the Main Unit Disconnect Enclosure shall be 48" (1219mm) or per local electrical code.
2. Recommended minimum 48" (1219mm) clearance when multiple skids are mounted side by side to ensure proper airflow. Contact the factory for other spacing requirments.
Domestic Shipping Weight
lb (kg)
Export Shipping Weight
lb (kg)
9,800 (4,445) 10,150 (4,604)
System 1 System 2
101 1/4"
2572mm
Main
Electrical
Box
End
Shaded area indicates
recommended clearance of
36" (914mm) for component
access.
Shaded area indicates
recommended
clearance of
36" (914mm) for
component access.
264 3/4"
6725mm
123 1/2"
3138mm
To Next Page
