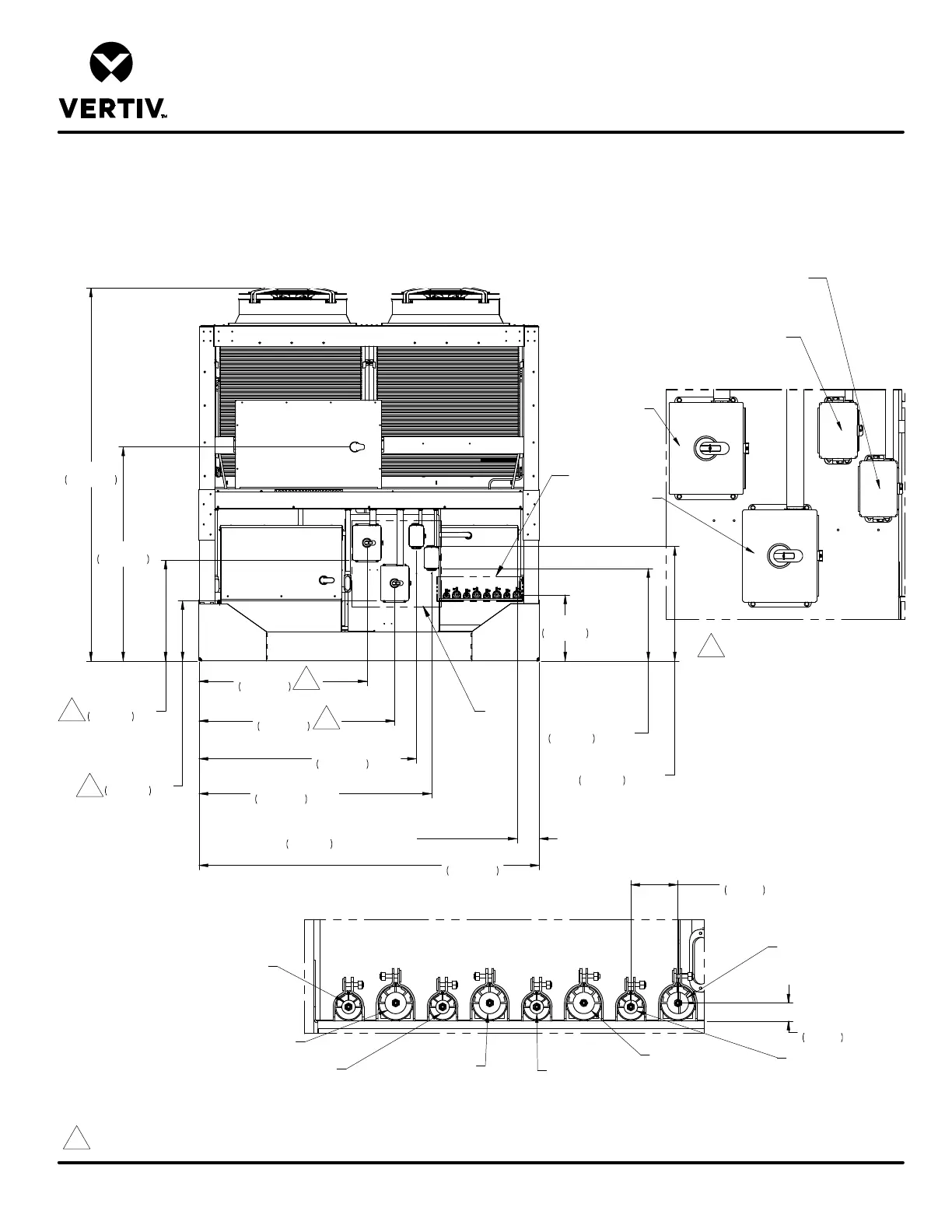

LIEBERT® MCV330 (2) + LIEBERT® ECONOPHASE (2)
+ BASE ASSY 460V & 575V
Form No.: DPN001040_REV4
PRIMARY CONNECTION LOCATIONS
LIEBERT
®
HEAT REJECTION SKID
DETAIL A
101 1/4"
2572mm
111"
2819mm
DETAIL B
58 3/16"
1478mm
CENTER OF BOX
50"
1269mm
CENTER OF BOX
6 5/8"
168mm
u (1/2" 12.7mm)
(FIELD ELECTRICAL CONNECTIONS)
(PIPING CONNECTIONS)
7/8" LIQUID LINE
SYSTEM 1 CIRCUIT 1
1 3/8" HOT GAS
SYSTEM 1 CIRCUIT 1
7/8" LIQUID LINE
SYSTEM 1 CIRCUIT 2
1 3/8" HOT GAS
SYSTEM 1 CIRCUIT 2
7/8" LIQUID LINE
SYSTEM 2 CIRCUIT 1
1 3/8" HOT GAS
SYSTEM 2 CIRCUIT 1
7/8" LIQUID LINE
SYSTEM 2 CIRCUIT 2
1 3/8" HOT GAS
SYSTEM 2 CIRCUIT 2
19 5/8"
498mm
ALL CONNECTIONS MADE FROM SYSTEM 1 END (SHOWN)
SYSTEM 1
CIRCUIT 1
SYSTEM 1
CIRCUIT 2
B
A
18"
457mm
BOTTOM OF BOX
30"
762mm
BOTTOM OF BOX
TYP.
1 3/16"
29mm
TYP
3"
76mm
u (1/2" / 13mm)
TYP.
LOW VOLTAGE CUSTOMER CONNECTION
SYSTEM 1
LOW VOLTAGE CUSTOMER CONNECTION
SYSTEM 2
64 11/16"
1644mm
CENTER OF BOX
69 3/16"
1758mm
CENTER OF BOX
27 1/2"
699mm
BOTTOM OF BOX
34"
864mm
BOTTOM OF BOX
63 11/16"
1617mm
Notes:
1. Field to provide hole for conduit for high voltage disconnect box and low voltage distribution panel.
2. High Voltage Customer Connection for:
Voltage Codes: A=(460V/3 Phase/60Hz); B=(575V/3 Phase/60Hz)
HIGH VOLTAGE
CUSTOMER
CONNECTION
SYSTEM 1
HIGH VOLTAGE
CUSTOMER
CONNECTION
SYSTEM 2
2
2
2
2
2
