REV : 7
REV DATE : 4/22
DPN003887
Page :1 /1
LIEBERT® MCV330 + LIEBERT® ECONOPHASE
+ BASE ASSY 460V & 575V
Form No.: DPN001040_REV4

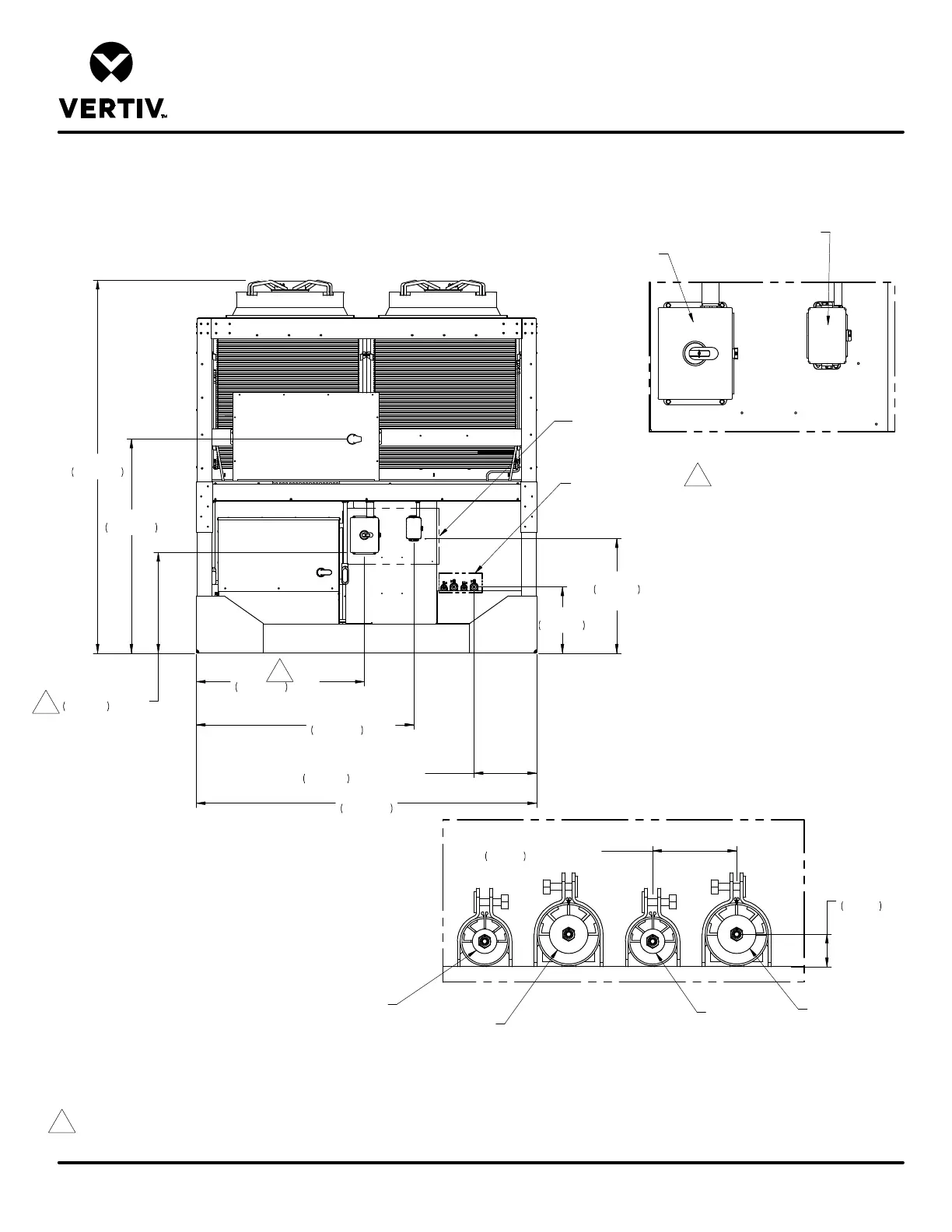

PRIMARY CONNECTION LOCATIONS
LIEBERT
®
HEAT REJECTION SKID
LOW VOLTAGE CUSTOMER
CONNECTION
(Field Electrical Connections)
(PIPING CONNECTIONS)
7/8" LIQUID LINE
CIRCUIT 1
1 3/8" HOT GAS
CIRCUIT 1
7/8" LIQUID LINE
CIRCUIT 2
1 3/8" HOT GAS
CIRCUIT 2
Front View
B
DETAIL B
A
DETAIL A
101 1/4"
2572mm
18 5/8"
473mm
u 1/2" (13mm)
19 11/16"
501mm
CIRCUIT 1
CIRCUIT 2
3"
76mm
u 1/2" (13mm)
TYP.
111"
2819mm
64 11/16"
1644mm
CENTER OF BOX
34"
864mm
BOTTOM OF BOX
50"
1269mm
CENTER OF BOX
HIGH VOLTAGE CUSTOMER
CONNECTION
1 3/16"
29mm
30"
762mm
BOTTOM OF BOX
63 11/16"
1617mm
Notes:
1. Field to provide hole for conduit for high voltage disconnect box and low voltage distribution panel.
2. High Voltage Customer Connection for:
Voltage Codes: A=(460V/3 Phase/60Hz); B=(575V/3 Phase/60Hz)
2
2
2
