LIEBERT® MCV MCV330 + LIEBERT® ECONOPHASE + BASE ASSEMBLY
Form No.: DPN001040_REV4

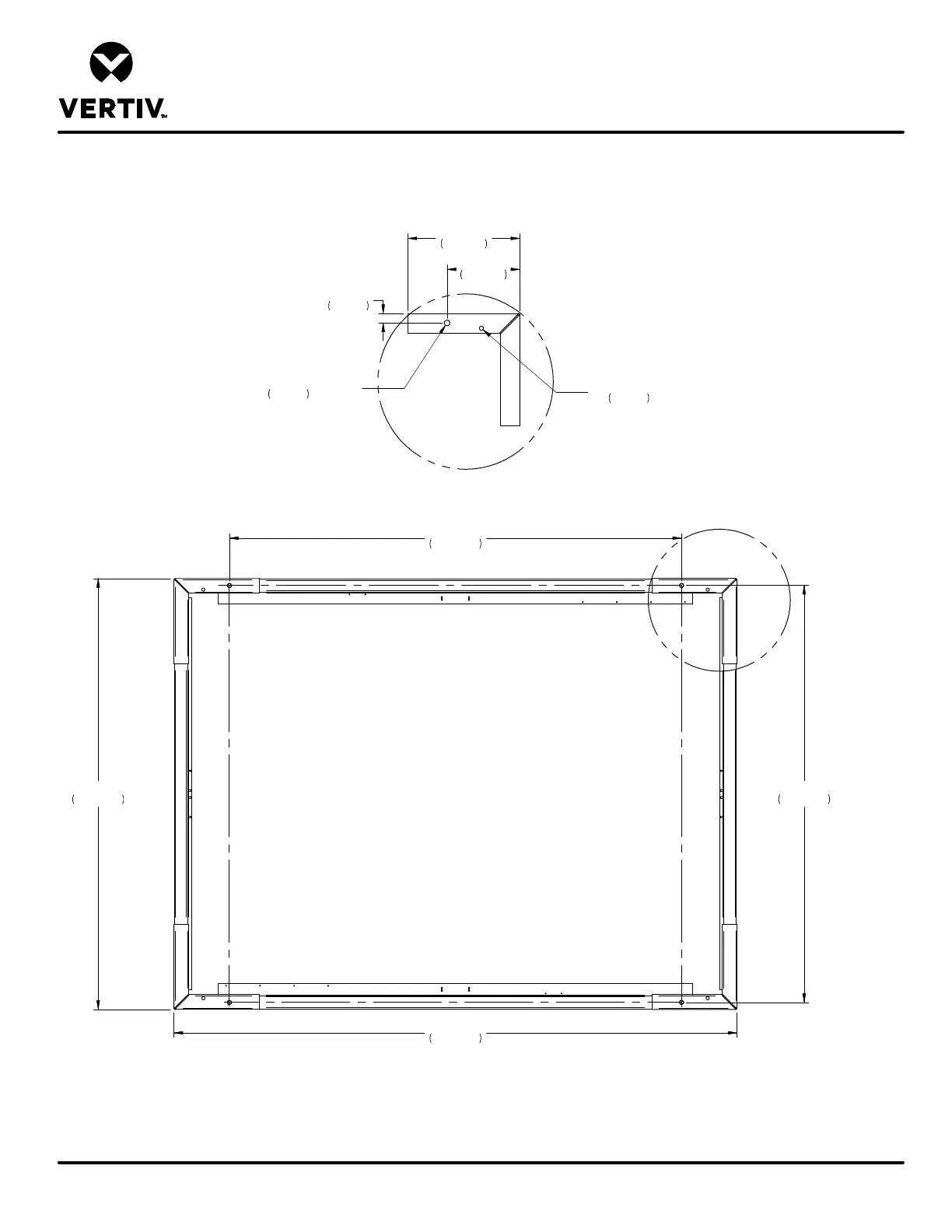

CABINET & ANCHOR DIMENSIONAL DATA
LIEBERT
®
HEAT REJECTION SKID
DETAIL A
A
20"
508mm
1 5/8"
42mm
NOTES:
1) Underside of unit, coil and fan removed for clarity.
2) Four mounting holes and four 3/4" field supplied bolts required to secure skid base assembly to customer support structure. Bolt grade to be specified by local requirements.
101 1/4"
2572mm
132 1/4"
3360mm
Main
Electrical
Box
End
106 1/4"
2699mm
13"
330mm
Typical (4) Places
O
7/8"
22mm
(4) MOUNTING HOLES
(CONTACT POINTS)
98"
2488mm
O
3/4"
19mm
(4) WEEP HOLES
(REF)
