REV : 5
REV DATE : 1/22
DPN004259
Page :2 /2
LIEBERT® MCV MCV440 + LIEBERT® ECONOPHASE + BASE ASSEMBLY
Form No.: DPN001040_REV4

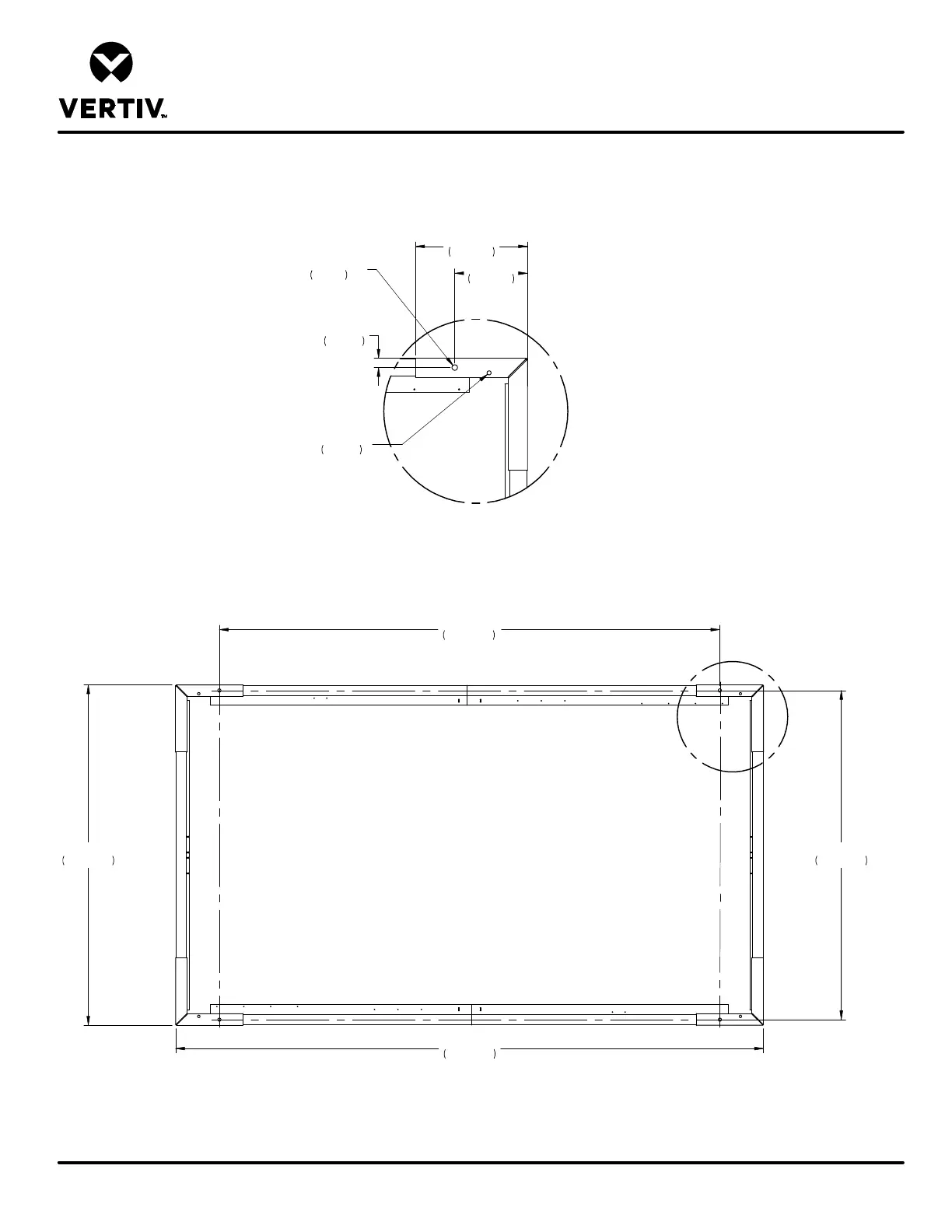

CABINET & ANCHOR DIMENSIONAL DATA
LIEBERT® HEAT REJECTION SKID
NOTES:
1) Underside of unit, coil and fan removed for clarity.
2) Four mounting holes and four 3/4" field supplied bolts required to secure skid base assembly to customer support structure. Bolt grade to be specified by local requirements.
A
DETAIL A
Typ. (4) Places
20"
508mm
13"
330mm
1 5/8"
42mm
Main
Electrical
Box
End
O
3/4"
19mm
(4) Weep Holes
(REF)
O
7/8"
(7/8")
(4) Mounting Holes
(Contact Points)
148 15/16"
3783mm
97 15/16"
2488mm
101 1/4"
2572mm
175"
4443mm
To Next Page
