LIEBERT® MCV MCV440 (2) + LIEBERT® ECONOPHASE (2)
+ BASE ASSEMBLY
Form No.: DPN001040_REV4

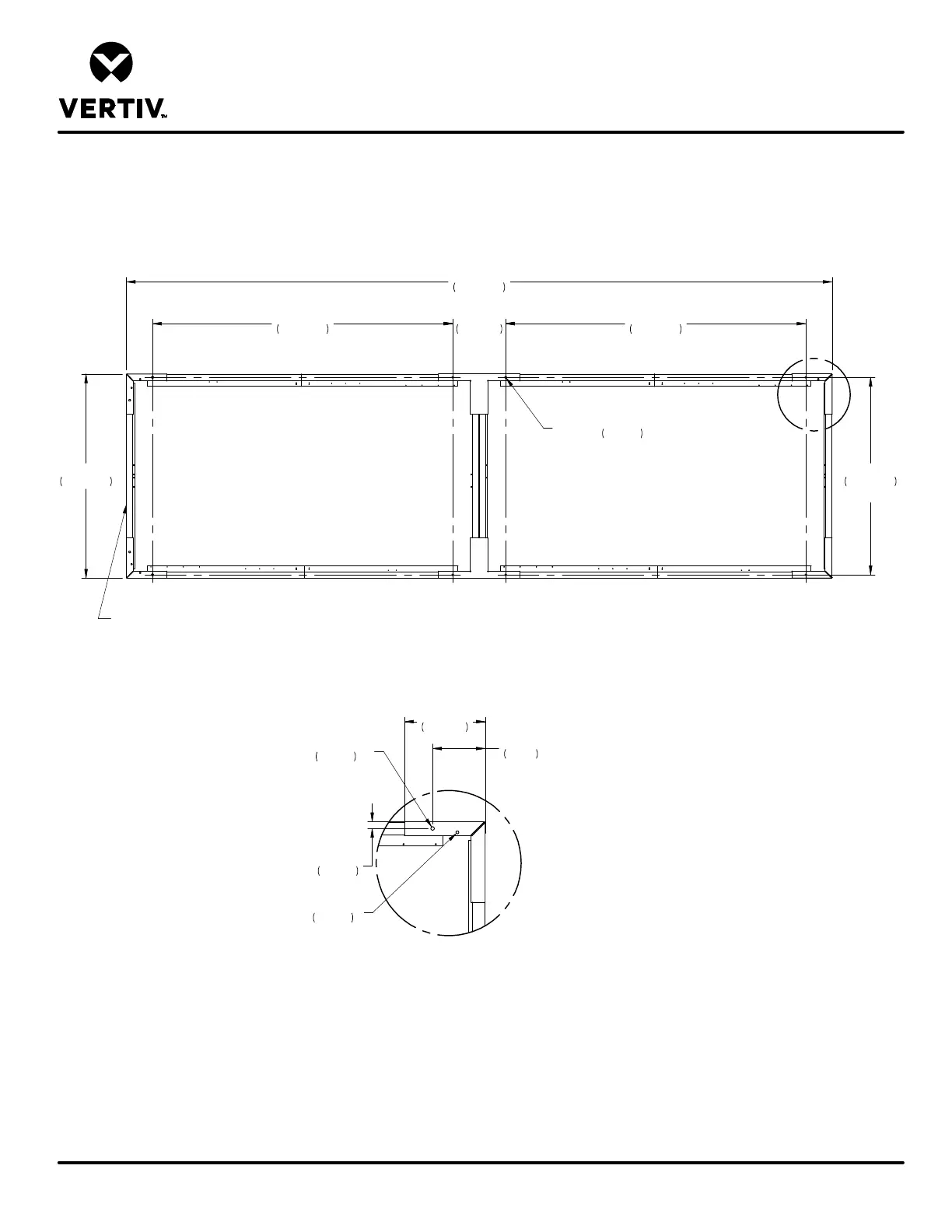

CABINET & ANCHOR DIMENSIONAL DATA
LIEBERT® HEAT REJECTION SKID
Notes:
1. Eight mounting holes and eight 3/4" field supplied bolts required to secure skid base assembly to customer support structure. Bolt grade to be specified by local requirements.
Underside of Unit
Coil and Fans removed for clarity
A
DETAIL A
Typical (4) Places
20"
508mm
13"
(13")
350"
8892mm
101 1/4"
2572mm
O
7/8"
22mm
(8) Mounting Holes
1 5/8"
41mm
26 1/4"
667mm
97 15/16"
2488mm
Typ.
Main Electrical
Box End
148 7/8"
3782mm
148 7/8"
3782mm
O
7/8"
22mm
TYP.
(8)Mounting Holes
Contact Points)
O
3/4"
19mm
(4) Weep Holes
(REF)
