Vicon Extra 532 - Page 53

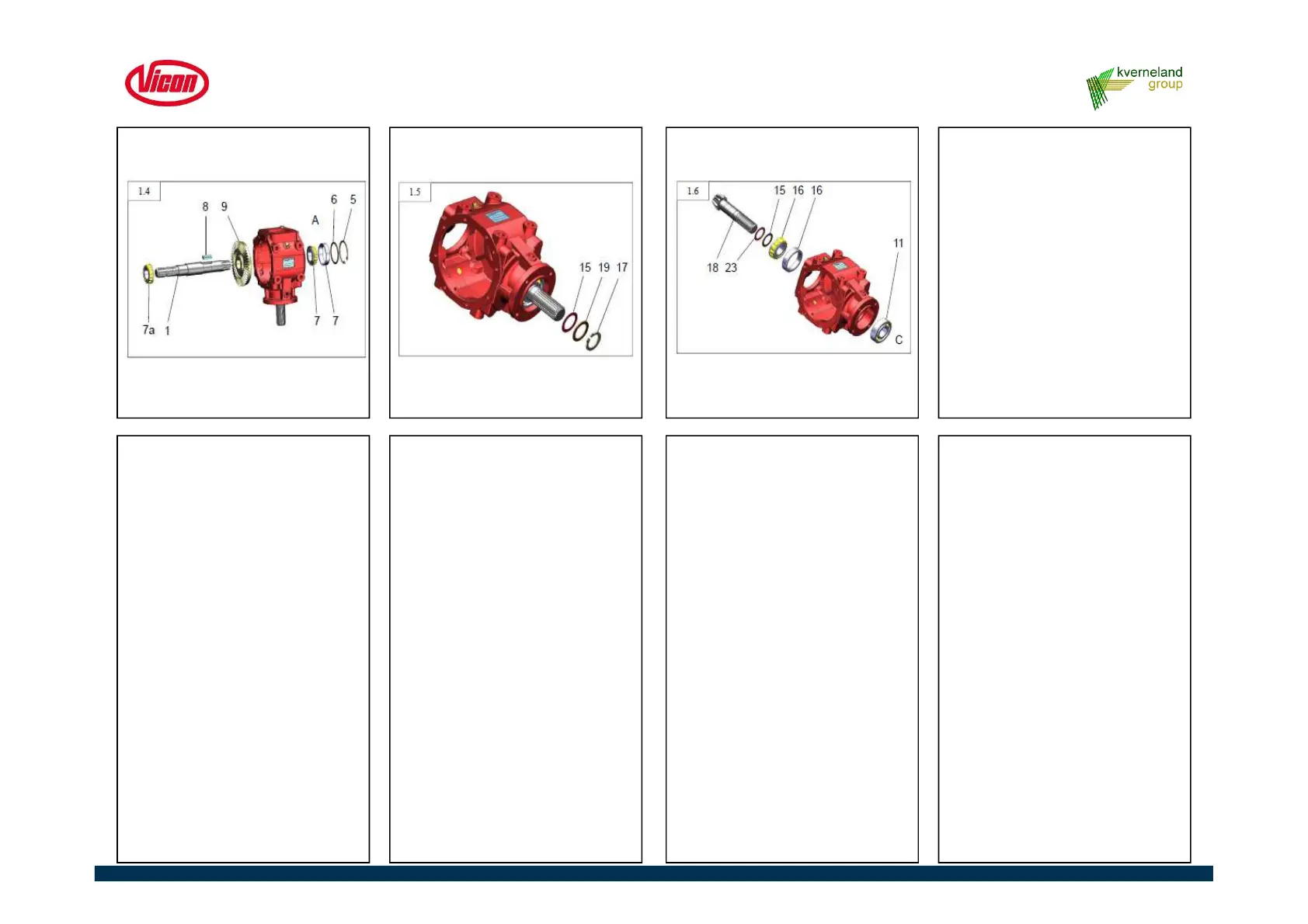

Disassembling bevel gearbox
Disassembling bevel gearbox
Disassembling bevel gearbox
Disassembling bevel gearbox
Disassembling bevel gearbox
Disassembling bevel gearbox
Tools : Hammer, chisel, pipe,
extractor, pliers, snap ring pliers,
extractor.
• Hit the shaft (1) from side (A)
in order to extract it from
housing, using chisel and
hammer.
• Pick up crown wheel (9) and
inner ring (7) from inside
housing.
• Disassemble inner ring (7a)
from shaft (1), using an
extractor.
• Disassemble parallel key (8)
from shaft (1).
• Disassemble snap ring (5),
shim (6).
• Disassemble outer ring (7)
using a pipe and hammer.
• Hit the pinion shaft from side
(C) in order to extract it from
housing, using chisel and
hammer.
• Disassemble inner ring (16),
shims (15),(23), using an
extractor, from pinion shaft
(18).
• Disassemble outer ring (16),
bearing (11) using pipe and
hammer, from housing.
• Disassemble snap ring (17),
shim (15),(19).
4.7 Repair of Gearbox machine side
53
