Cutter bar repair
Change of bearing
intermediate gearwheel
Cutter bar repair
Removing intermediate
gearwheel
Cutter bar repair
Removing intermediate
gearwheel
Cutter bar repair
Removing intermediate
gearwheel

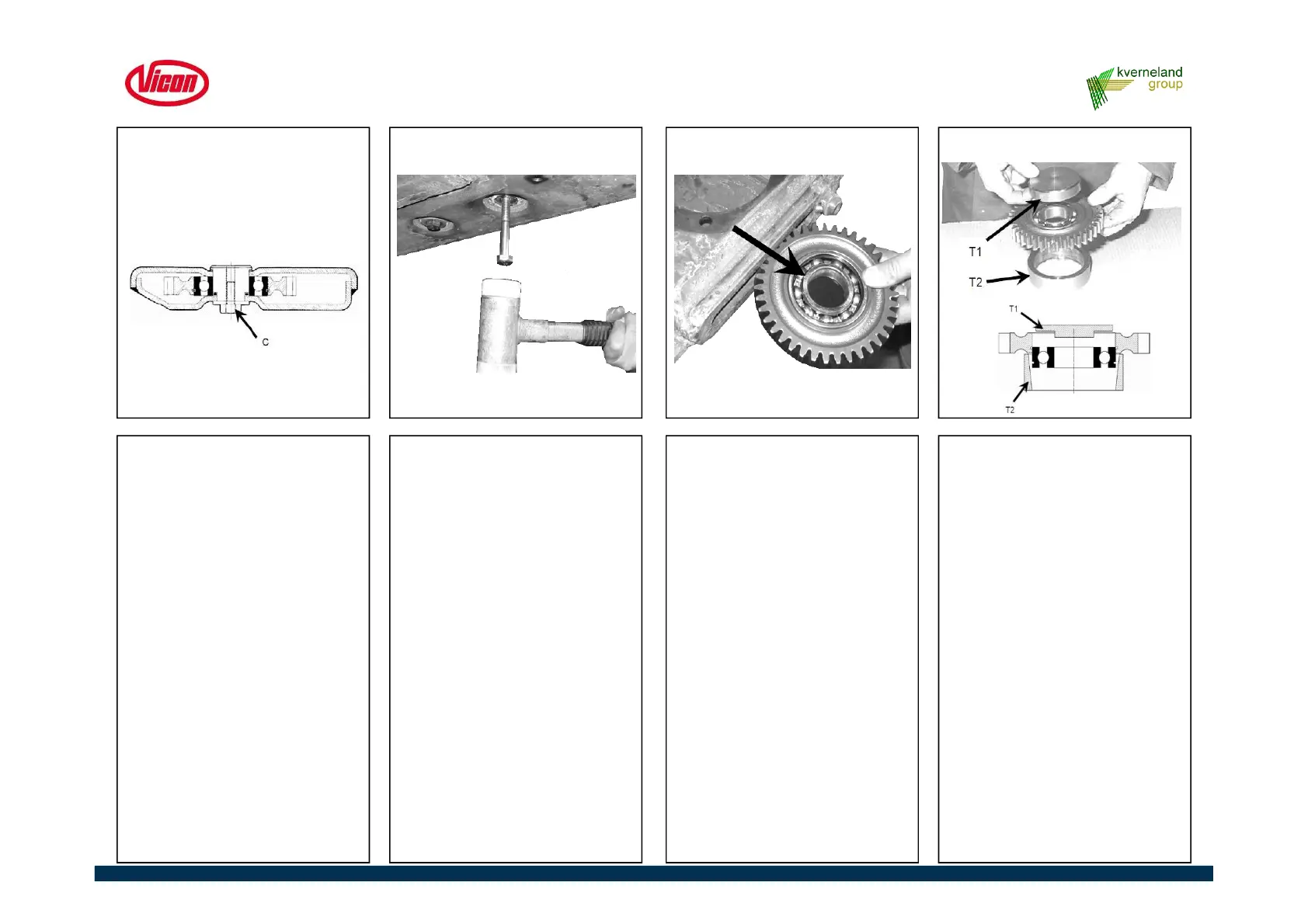

• Remove bolt “C” on the under
side from the cutter bar.
• Guide the intermediate gear
wheel out through the gap in
the end of the cutter bar.
• Use a longer bolt of the same
size and screw the bolt in the
shaft.
• Force the shaft out of the
cutter bar by use of a
hammer.
• Place the intermediate gear
wheel on top of tool T2.
• Place tool T1 on top of the
bearing as shown.
• Force the bearing out of the
gear wheel by use of a
hammer and hit T1.
NB! The largest diameter of the
tool has to be faced upwards.
4.8.1 Cutter bar-repair instructions
