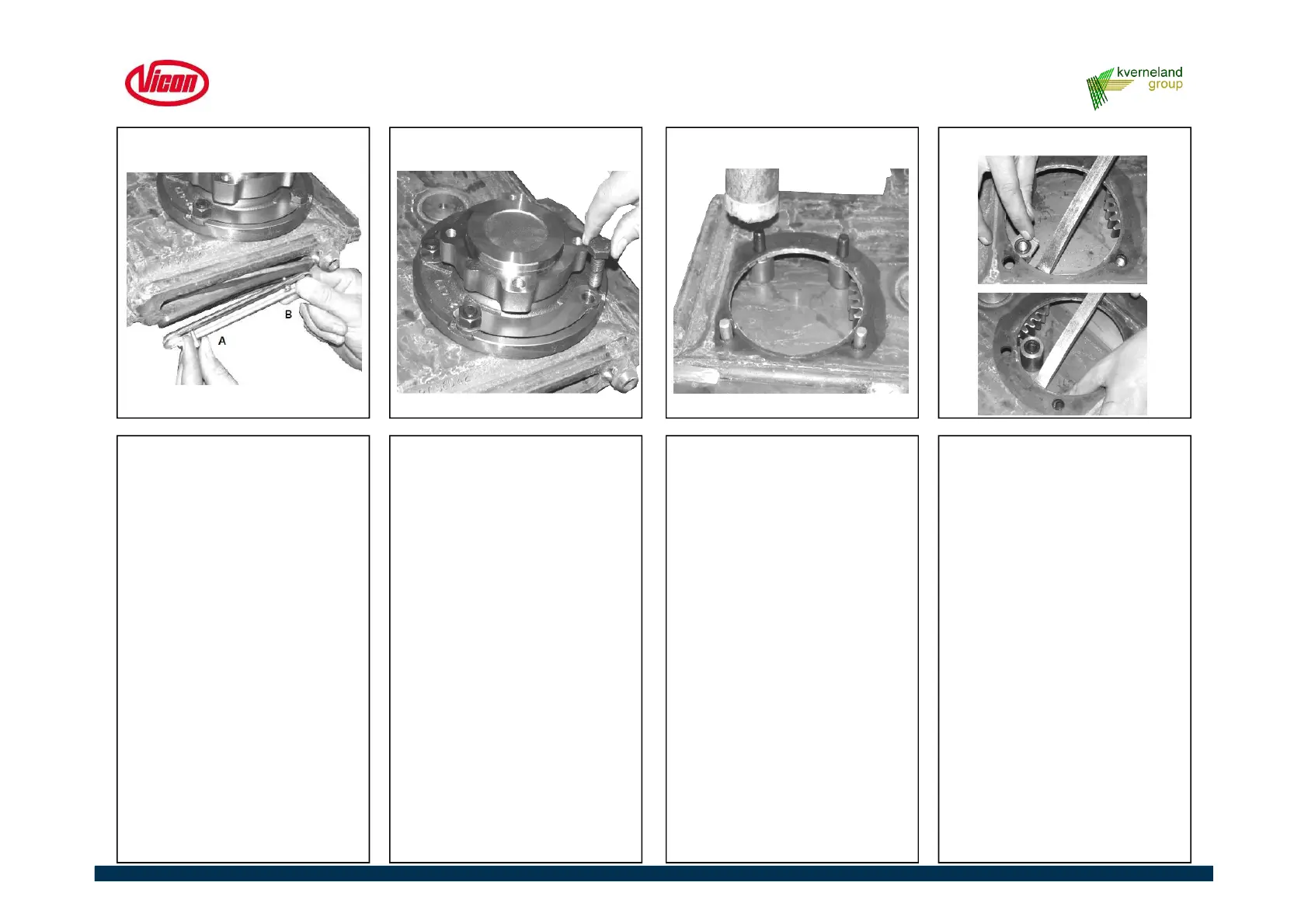

• Place a suitable receptacle
below the end of the cutter
bar.
• Remove screw “A”. Loosen
screw “B” a bit.
• Remove both the end cap and
the gasket.
• Let the oil to run into the
receptacle.
• Let the last of the oil drip of
the cutter bar for approx. 10 -
15 minutes.
NB! For detailed repair
instructions for the older hub
models, please see the A-828
info what you can find in Quest.
• Remove the through bolts.
NB! The through-going bolts is
only used in the outer bearing
units in both ends of the cutter
bar.
• Remove the bolts and nuts
shown.
• Remove the lock plates
shown.
• Remove the bearing unit from
the cutter bar.
NB! The bearing unit can be
removed from the cutter bar
without the oil is drained. the
inspection of the intermediate
gear wheel can be done by carry
out the inspection through the
hole of the bearing unit in the
cutter bar.
• Use tool T7 as shown and
press the edge of the plate up
a bit.
• Remove the bushings for the
through bolts.
• Use tool T7 as shown and
press the edge of the plate up
a bit.
• Remove all the special nut in
the cutter bar.
