Preparation
23

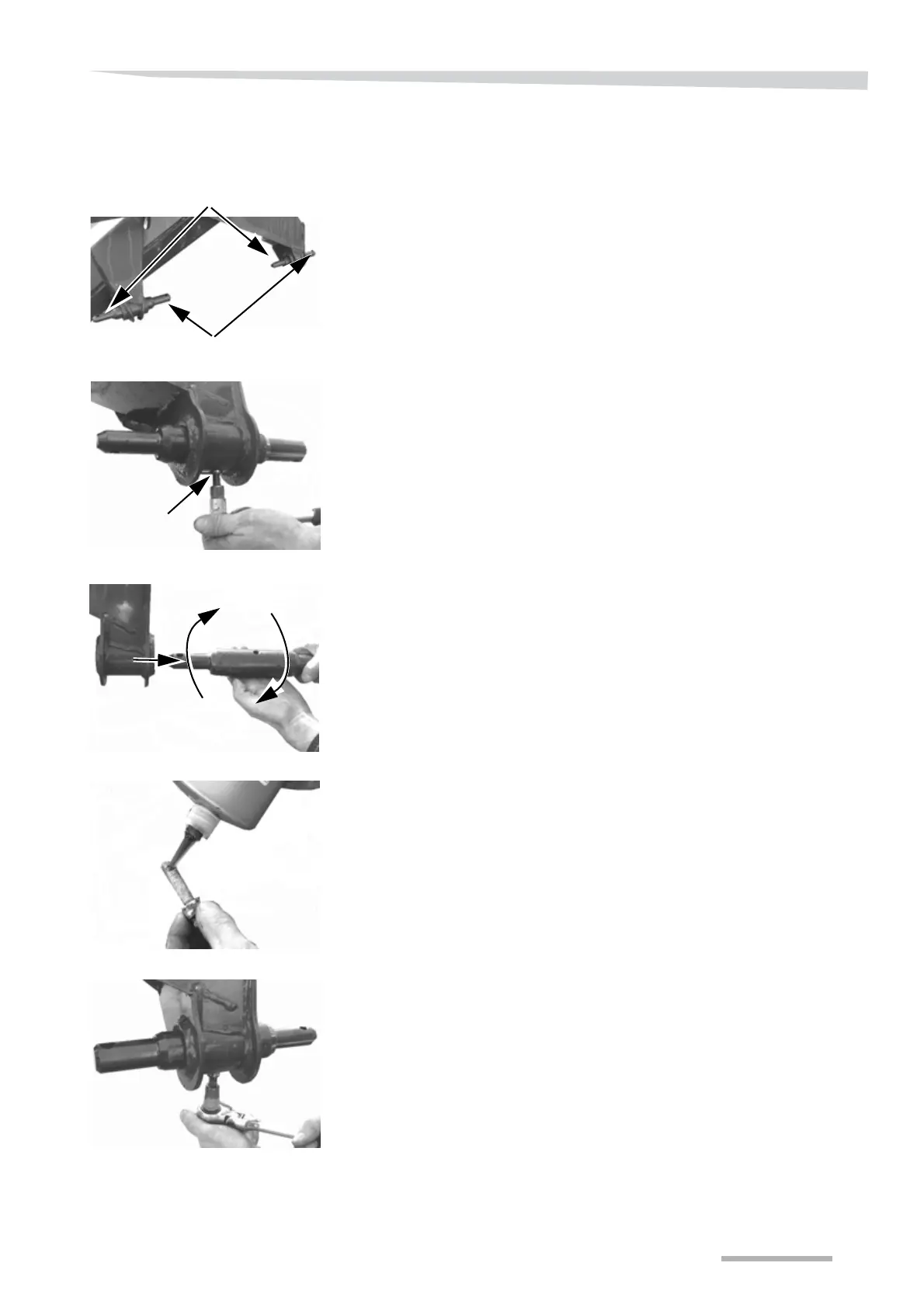

Adjusting the linkage
pins
The machine is fitted with 2 types of linkage pin:
• Category II linkage pin.
• Category III linkage pin.
The linkage pins are factory-fitted as shown.
To change the setting of the linkage pins, perform the following:
> Use a suitable tool to remove the bolt shown.
> Then pull out the linkage pin to turn it.
> Fit the linkage pin.
> Threadlock is applied to the bolt thread.
• It is recommended that Loctite 247 or a similar product is used.
> Fit and tighten the bolt.
• This procedure must be repeated on both linkage pins.
Category II linkage pin
Category III linkage pin
