Maintenance

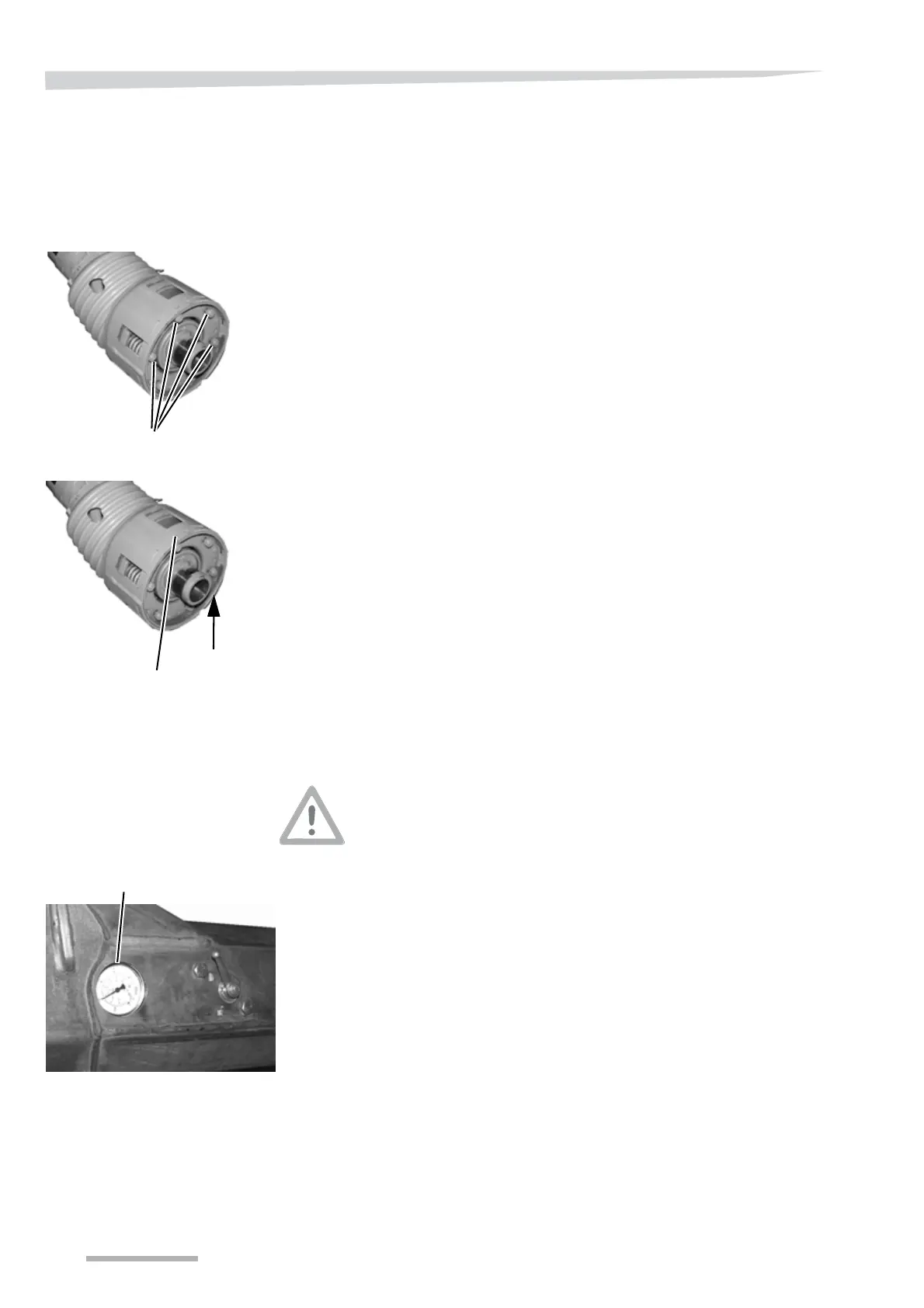

Friction clutch
When the friction clutches' torque is felt to be too low, the friction disc
should be replaced.
The friction discs are replaced in the following way:
→ »Maintenance intervals« Page 55.
> Remove the P.T.O. shaft from the machine.
> Tighten all bolts on the friction clutch.
> Use a screwdriver or other pointed tool to force the circlip out of the
friction clutch.
> Remove the friction clutch and replace the friction discs.
> Assemble and mount the friction clutch.
> Mount the circlip.
> Loosen all the bolts on the friction clutch.
> Fit the P.T.O. shaft to the machine.
N
OTE
!
The settings for the coupling's springs are fixed.
Accumulator
Very high amount of accumulated pressure in the accumulator
Do not attempt to replace the accumulator.
The accumulator contains a very high accumulated pressure and may
only be replaced by authorised persons.
Attempting to replace the accumulator can lead to serious injury and
death.
The machine is fitted with an accumulator that can absorb unwanted
shocks from the cutting unit when the machine is in the transport po-
sition.
N
OTE
!
Pressure in the accumulator: Approximately 75 bar
N
OTE
!
Replacement of the accumulator may only be carried out be author-
ised service personal.
Bolt
Use pointed tool
Circlip
Manometer
