Assembly - attachment
25

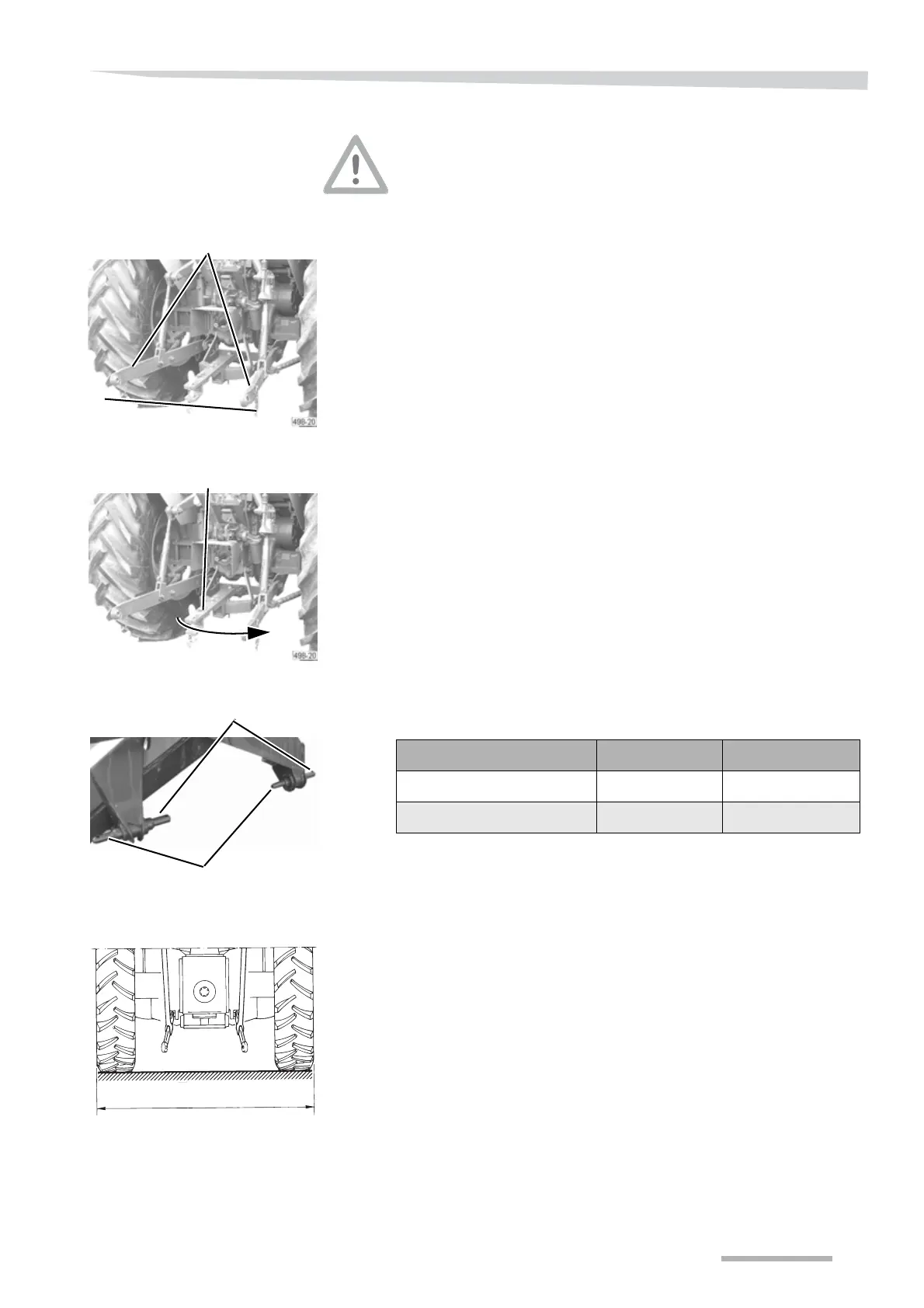

Attachment of the
tractor
Lock the tractor's lift arms
Lock the tractor's lift arms at the correct height.
Having the lifting device at the correct height prevents damage to the
P.T.O shaft and injury to persons in the vicinity.
Lowering or raising the lifting device can lead to personal injury and
can damage the P.T.O shaft.
> Adjust the right and left lift arm so they are at the same height.
> Swing the lower link crossbar to the side or remove the lower link
crossbar.
> Raise or lower the tractor's lift arms until the machine's linkage pin
can be mounted on the tractor's lift arms.
• The linkage pins below must be used for attachment:
If you require a linkage pin setting that is different from the factory set-
ting:
→ »Adjusting the linkage pins« Page 23.
• The width of the tractor is measured from the outside edge of the
tyres as shown.
Width of the tractor Linkage pins Category
Less than 2100 mm A II linkage pin
Over 2100 mm B III linkage pin
