30
Assembly - attachment

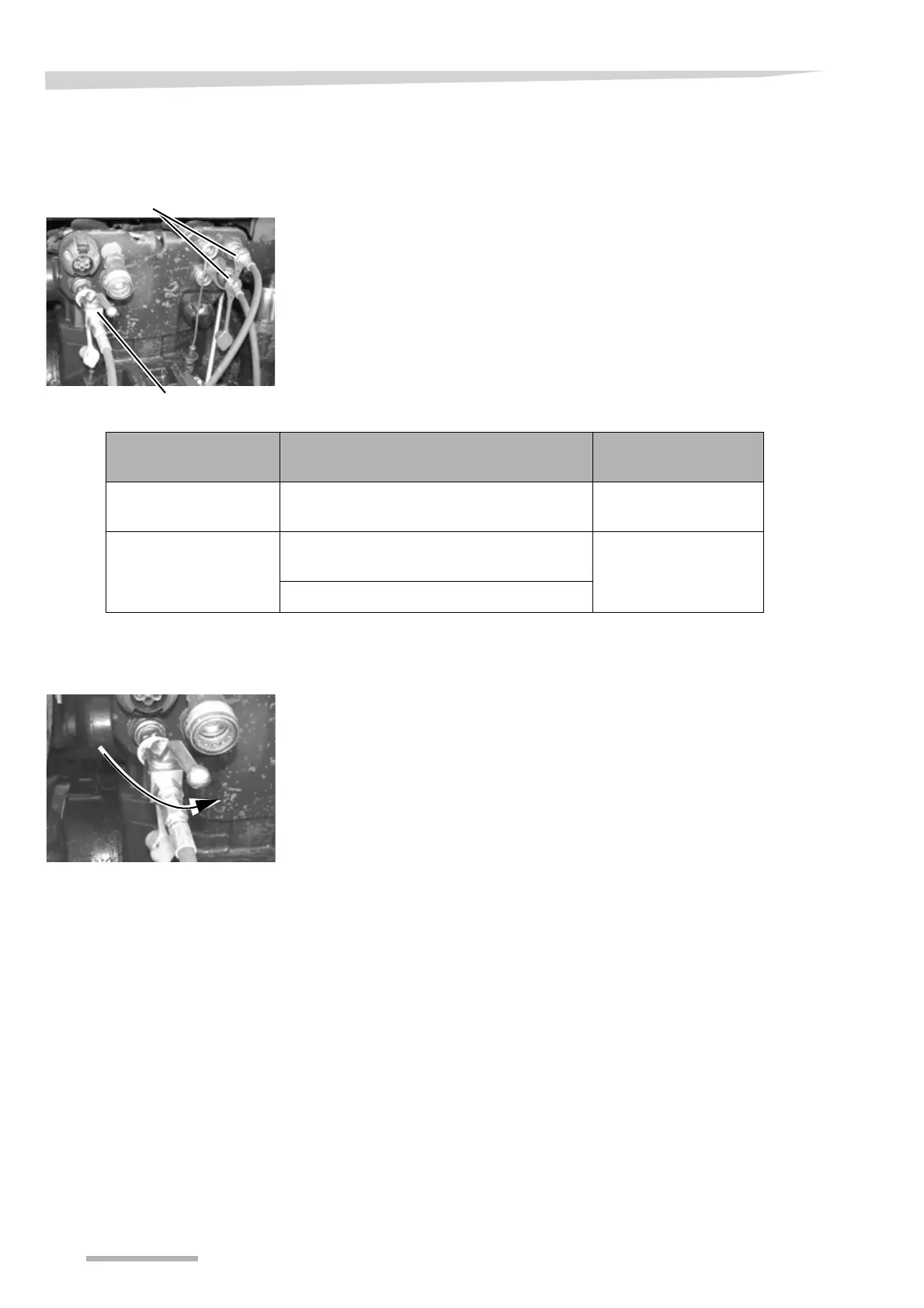

Hydraulic connection
The tractor must be fitted with 1 set of double-acting outlets and a sin-
gle-acting hydraulic outlet, which are connected as follows:
* See the section on “Ground pressure”
→ »Ground pressure« Page 45.
> Connect the machine's hydraulic system to the tractor.
> Open both safety valves.
Blue marking
Red marking
Hydraulic outlets on
the tractor
Function Colour marking of
the hydraulic hoses
Double-acting hydrau-
lic outlet
Machine in transport and working position Red
Single-acting hydraulic
outlet
Lifting the cutting unit when turning on the
headland Blue
Adjusting the ground pressure*
