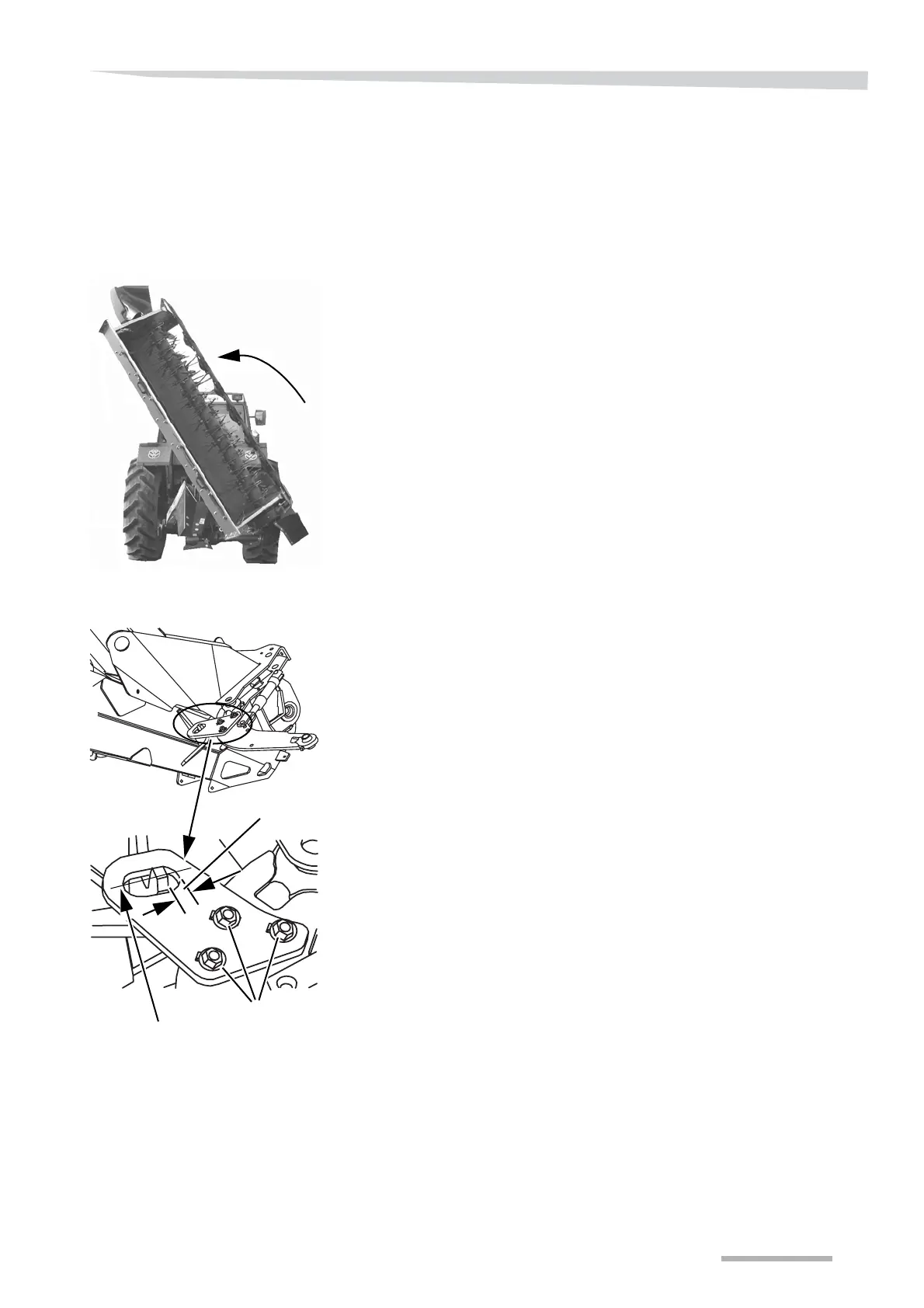

Assembly - attachment
35
Adjusting the trans-
port lock
The transport lock ensures that the machine remains locked in the
transport position when being transported when the tractor's hydraulic
system is in neutral.
The machine's transport lock is adjusted in the following way:
> Activate the tractor hydraulics and swing the machine's cutting unit
up to the transport position.
> Check that the lock is placed in the hole as shown.
> If not, loosen the bolts and adjust the lock as shown.
> Tighten the bolts.
25 mm
Bolts
Lock in the centre of the
hole
