Maintenance
Changing oil
Correct support of the machine is necessary to prevent injury
The machine must be properly supported when work is being carried
out underneath it.
If the machine is not correctly supported, there is a high risk that it may
overturn, causing injury.
If the machine is not sufficiently supported, this can result in serious or
even fatal injuries.
• Amount of oil for oil change: 6 litres.
→ »Maintenance intervals« Page 55.
Oil change is performed as follows:
> Activate the tractor's single-acting hydraulic system and raise the
machine's cutting unit.
> Place the correct support under the machine's cutting unit.
> Carefully lower the machine's cutting unit onto the support.
> Use a suitable wrench and remove oilplug 5.
> Let the oil run into an appropriate reception container.
> Let the oil drain from the transmission for approx. 10 - 15 minutes.
> Fit oilplug 5.
> Remove oilplug 3.
> Remove oilplug 4.
> Fill up the new oil until the oil level reaches the hole.
→ »Lubricants« Page 97.
> Fit oilplugs 3 and 4 and tighten them.
> Activate the tractor's single-acting hydraulic system and raise the
machine's cutting unit.
> Remove the support from the machine's cutting unit.
> Lower the machine's cutting unit to the ground.

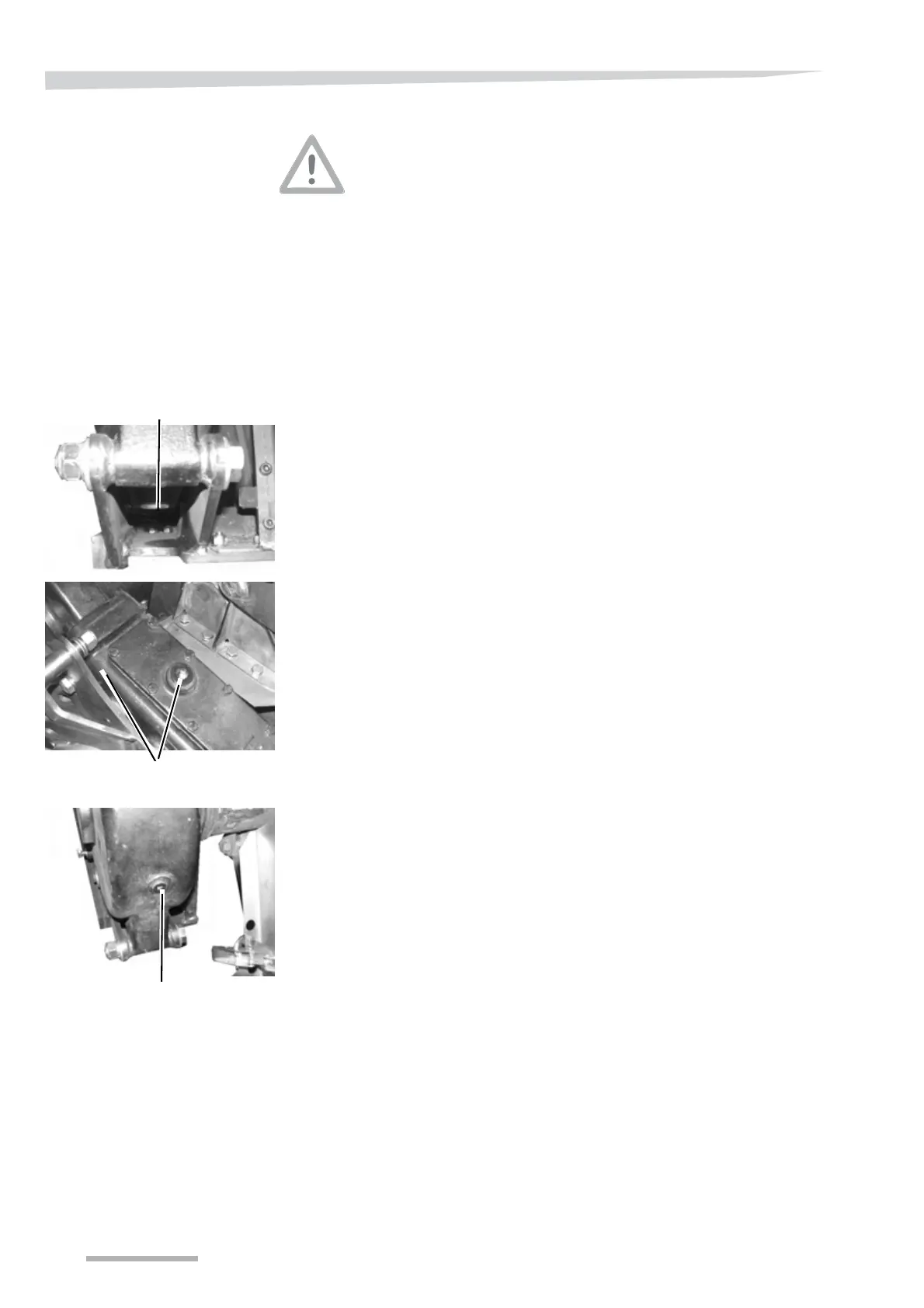

Oilplug 5
Oilplug 4
Oilplug 3
