LM0459 and fuse provided with the T-Gen2.
The T-Gen2 can be connected to the ANC1 relay output as shown in
Figure 11-9a. The LM0319 included for this purpose plugs in to the 6 way
header on ANC1. If present, remove the red +VBF and black 0V power
wires from the LM0319.
This wiring provides complete supervision of wiring open and short
circuits, as well as passing the state of the T-Gen2’s fault relay to the
MX1 controller.
ANC2 could be used to control the T-Gen2 instead of ANC1, but this will
require manual wiring as the supplied loom supports only ANC1, and
ANC2 supervision must be set to “Contact”.
When the T-Gen2 Alert tone must be controlled by the MX1, one of the
GP OUT terminals can be connected to the T-Gen2’s A/I/E- input, as
shown in the diagram. This is not default operation, and the MX1 must
be specially configured.

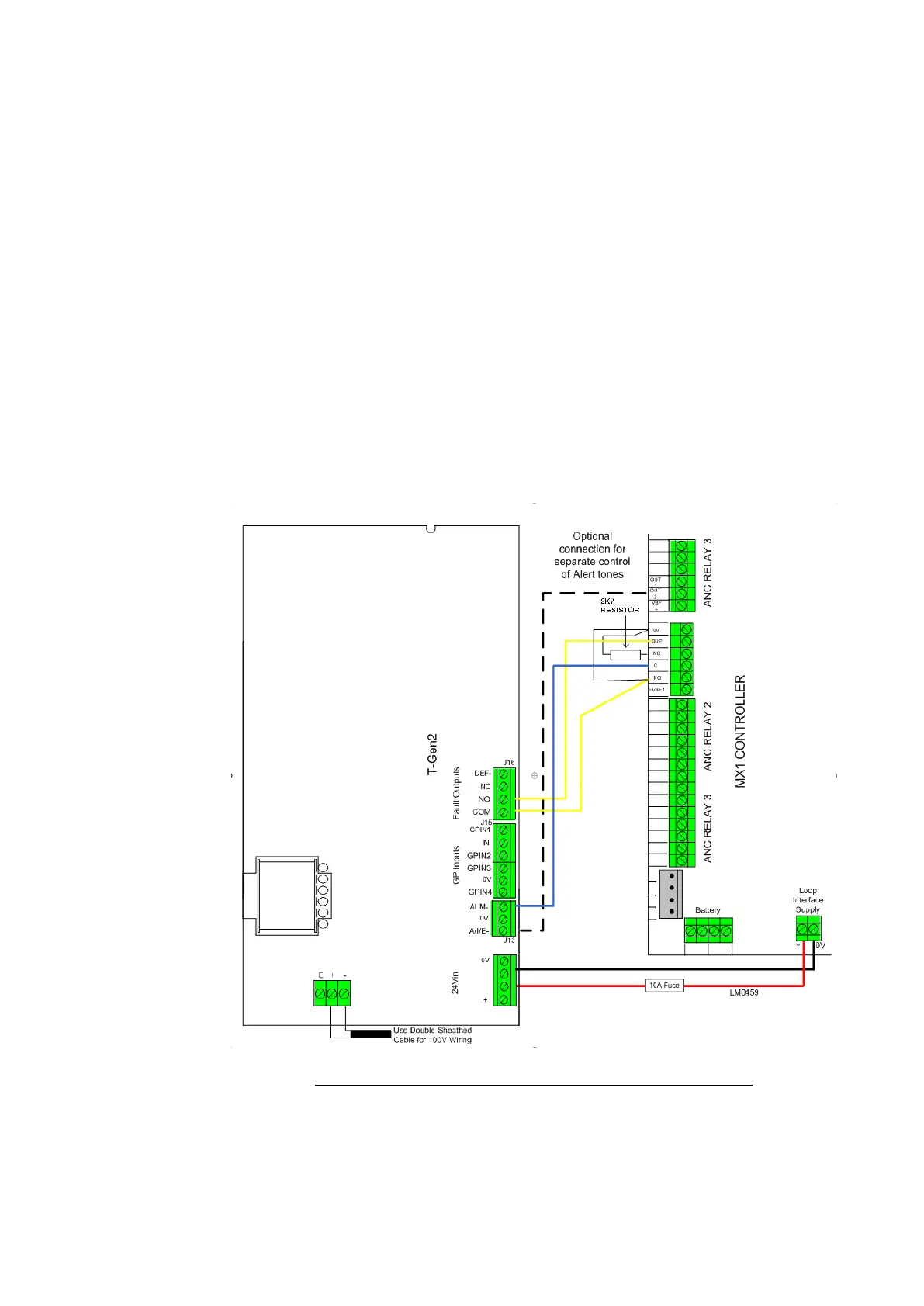

Figure 11-9a – Wiring Ancillary Relay 1 to T-Gen2 – Grade 3
