Violin Memory 6000 Series - Connecting AC Power Cords to the System

Installing the Memory Array
535-0045-00 Rev 02
Violin 6000 Series Memory Array Installation Guide 21
Connecting AC Power Cords to the System
The Memory Array requires 200-264 volts, 47-63 Hz, single phase, 15 A circuits. The power
requirements are for the entire chassis.
The power cords have IEC 320 C19 plugs for the Memory Array, and C14 plugs to the data center
power strip.
The Memory Array has the following power requirements. See Memory Array System Specifications
on page 62 for more information.
The Memory Array chassis has the AC power supplies installed prior to shipping. For redundancy
purposes, connect the AC power cords to both power receptacles on the Memory Array, and then
to different power circuits (if possible).
Caution: Consider the equipment connection to the supply circuit and the effect that overloading the
circuits might have on overcurrent protection and supply wiring. Also consider the appropriate equipment
nameplate ratings when addressing this concern.
Item Requirement
Voltage Input Range 200-264 V AC 50/60 Hz (15 A Max)
Supported Operating Range 180-264 V AC
Supported Frequency Range 47-63 Hz
Table 1.4 Power Requirements

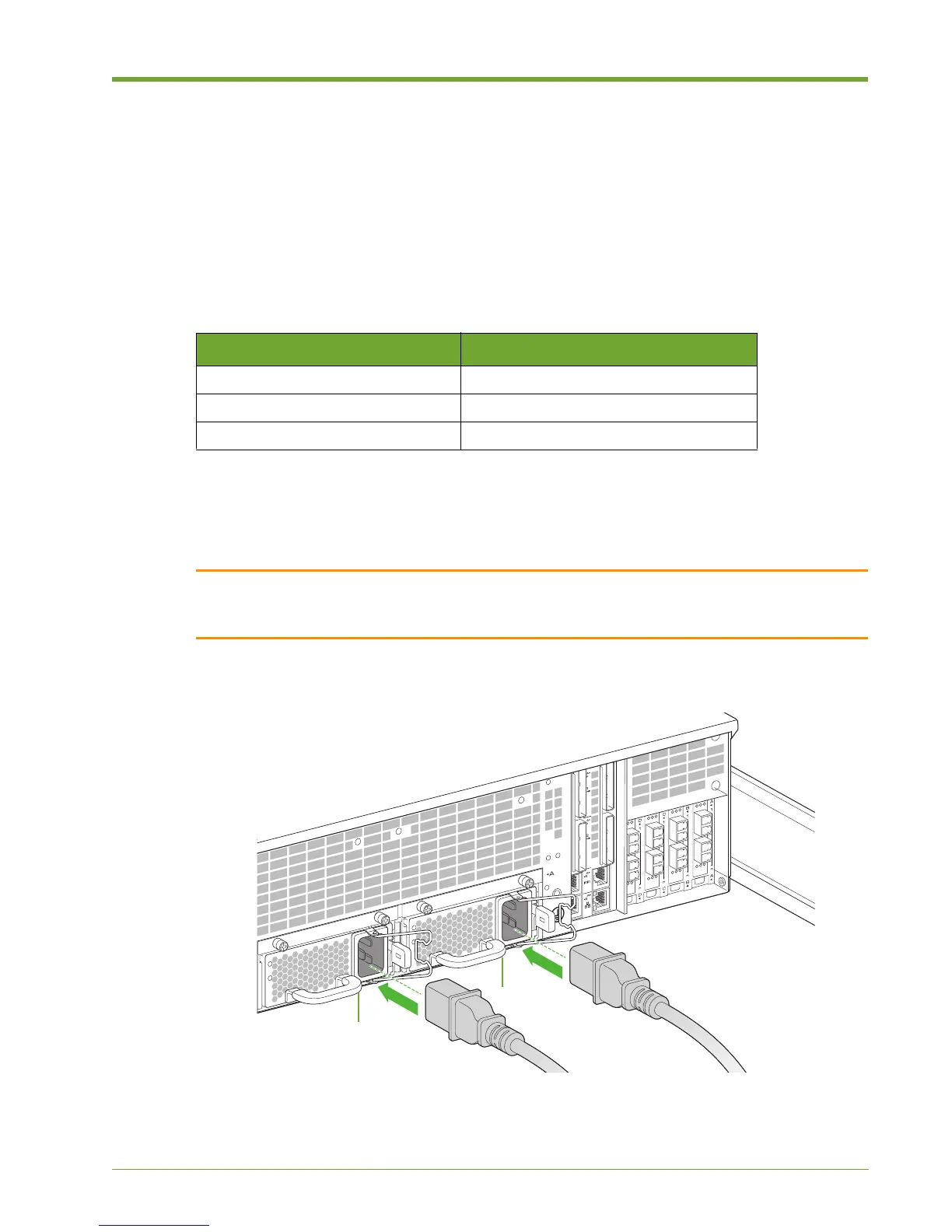

Figure 1.14 Connecting the AC Power Cords
Power Supply B
Power
Supply A
