Securing the Memory Array to the Equipment Rack
535-0045-00 Rev 02
Violin 6000 Series Memory Array Installation Guide
29
Securing the Memory Array to the Equipment Rack
Follow these steps to secure the front bezel on the Memory Array to a square-hole equipment rack
using either the previously-installed cage nuts, or to a threaded equipment rack using the screws
included in the accessory kit.
Use either the supplied cage nuts or the screws, depending on the style of your equipment rack.
See Installing the Cage Nuts on page 18 if you have not installed the cage nuts for a square-hole
equipment rack.
• Using the screws removed from the cage nuts, or the separate screws for a threaded
equipment rack, insert the screws into the top holes on the front bezel and then tighten the
screws.

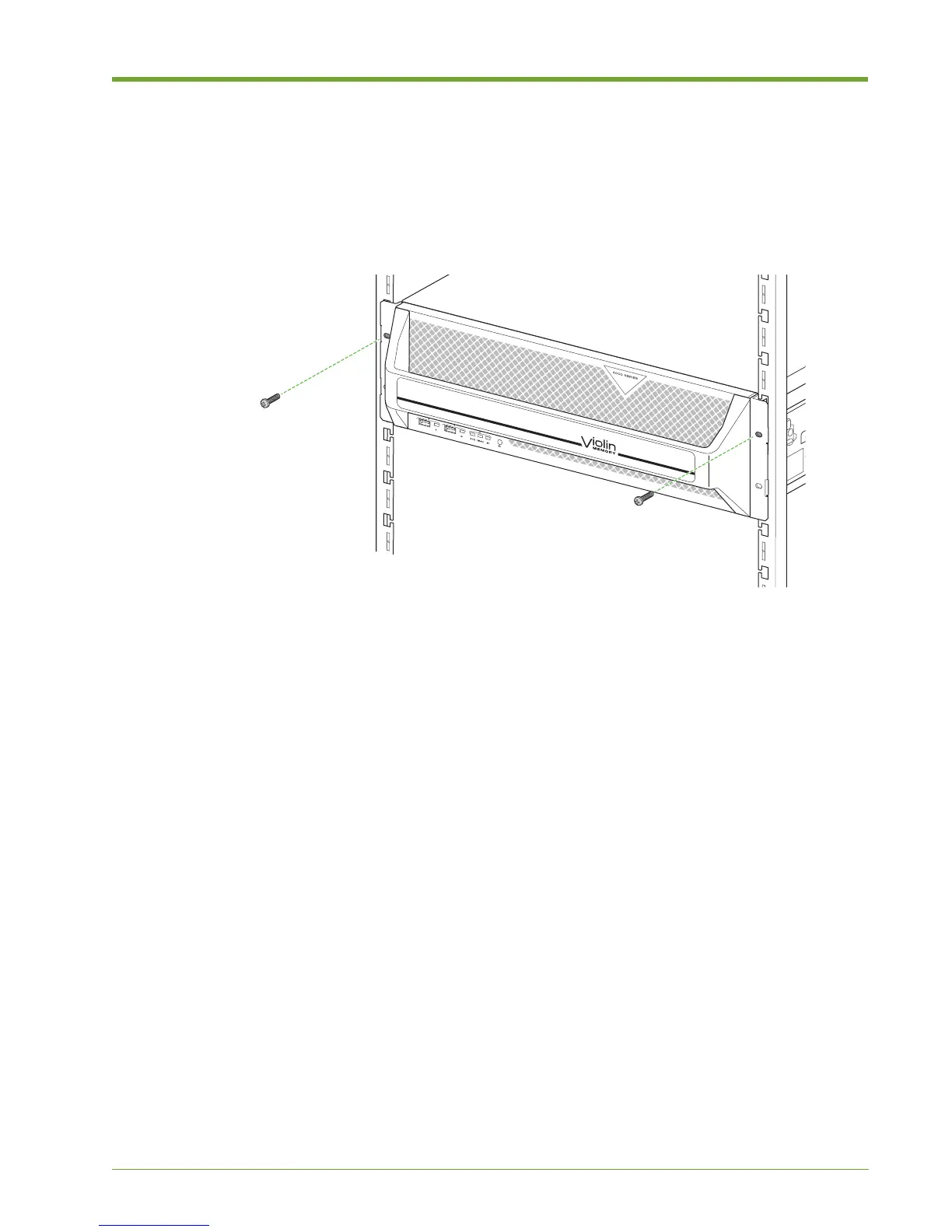

Figure 1.21 Securing the Memory Array to the Equipment Rack
