Vishay P3 User Manual

- 16 -
To reset the peak display, press the . To return to the normal
(tracking) mode, press
MENU
.
Pressing the
key will update the display if a value larger than
the currently displayed value is measured.

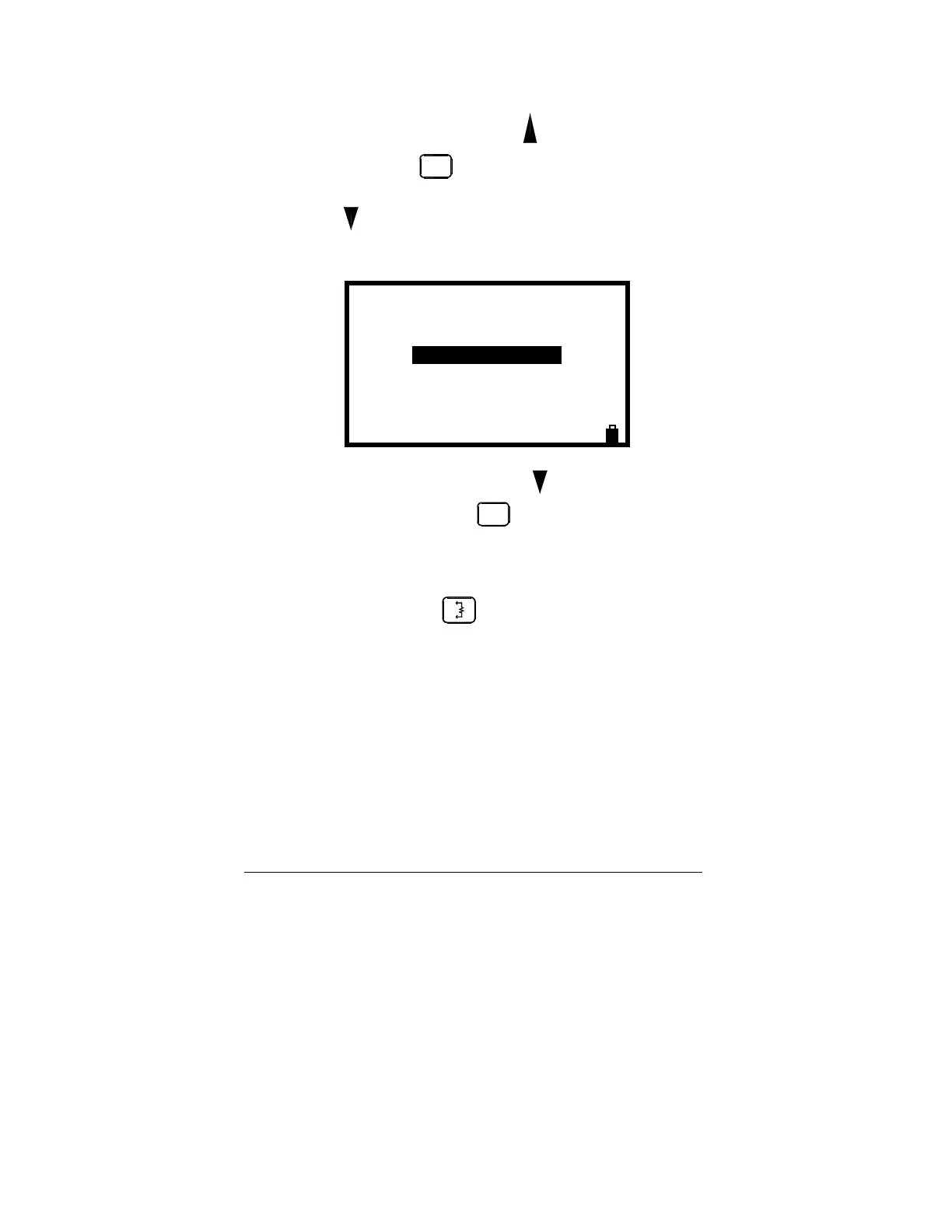

Ch1 µε Ch2 µε
+01000 +00216
Min Peak ↓=Reset
Ch3 µε Ch4 µε
+00524 +00914
REC OFF CAL OFF
To reset the peak display, press the key. To return to the
normal (tracking) mode, press
MENU
.
4.4.1.3 Shunt Calibration
The shunt calibration switch may be toggled while in the run
mode by pressing the cal key. When activated, a precision
shunt resistor is placed between the P- and the appropriate
dummy (D
xxx
) resistor, additionally, the Remote Cal switch
closed. The internal shunt calibration resistors simulate an
equivalent strain of 5000 microstrain at a gage factor of 2.000.
The lower right of the screen indicates whether the calibration
switch is active (CAL ON) or inactive (CAL OFF).
