13
Code – A unique 7-digit activation code that can activate a single or group of wireless PA speakers. Usually, Visiplex
products include up to 8 user-programmable activation codes, that provide individual speaker activation or as
part of up to 7 groups/zones. Use the keyboard numeric keys to enter/edit the activation code.
Tone – Select the tone/bell alert ID number (01-99), using the Up/Down arrow keys.
Level – Setup the PA speaker audio level for this event. Use the Up/Down arrow keys to select one of four audio levels:
Low, Medium, High or Maximum level.
Length – If the selected tone duration is too short, its length can be adjusted using this parameter.
Repeats – Select the number of times the tone/alert should be repeated, if any.
Pre-Tone – Select another optional tone alert to be played before the event main tone (to get public attention). To use
this option, use the Up/Down arrow keys to select the pre-tone alert ID (01-09).
Name – A descriptive title/name for the event that will help identify it from other events. Type in the description and hit
[Enter] to move to next field.
Auto – Enable/disable the event activation style. If enabled, the event will be initiated instantly, (when activated)
without any additional user input or confirmation. If the Auto mode is disabled, the user will be able to
temporarily change the tone playback audio level, number of repeats, and confirm the activation, before any
data is being transmitted.
TX Channel – Select the transmitter RF channel for this event, if other than the default channel, in cases where the
VS4820 base station operates on more than one frequency.
Use the Left/Right arrow keys to navigate between the fields. Use [F5] to save any changes, [F9] to delete the event (if
editing an existing event) and hit the [ESC] key to exit the screen back to the previous menu.

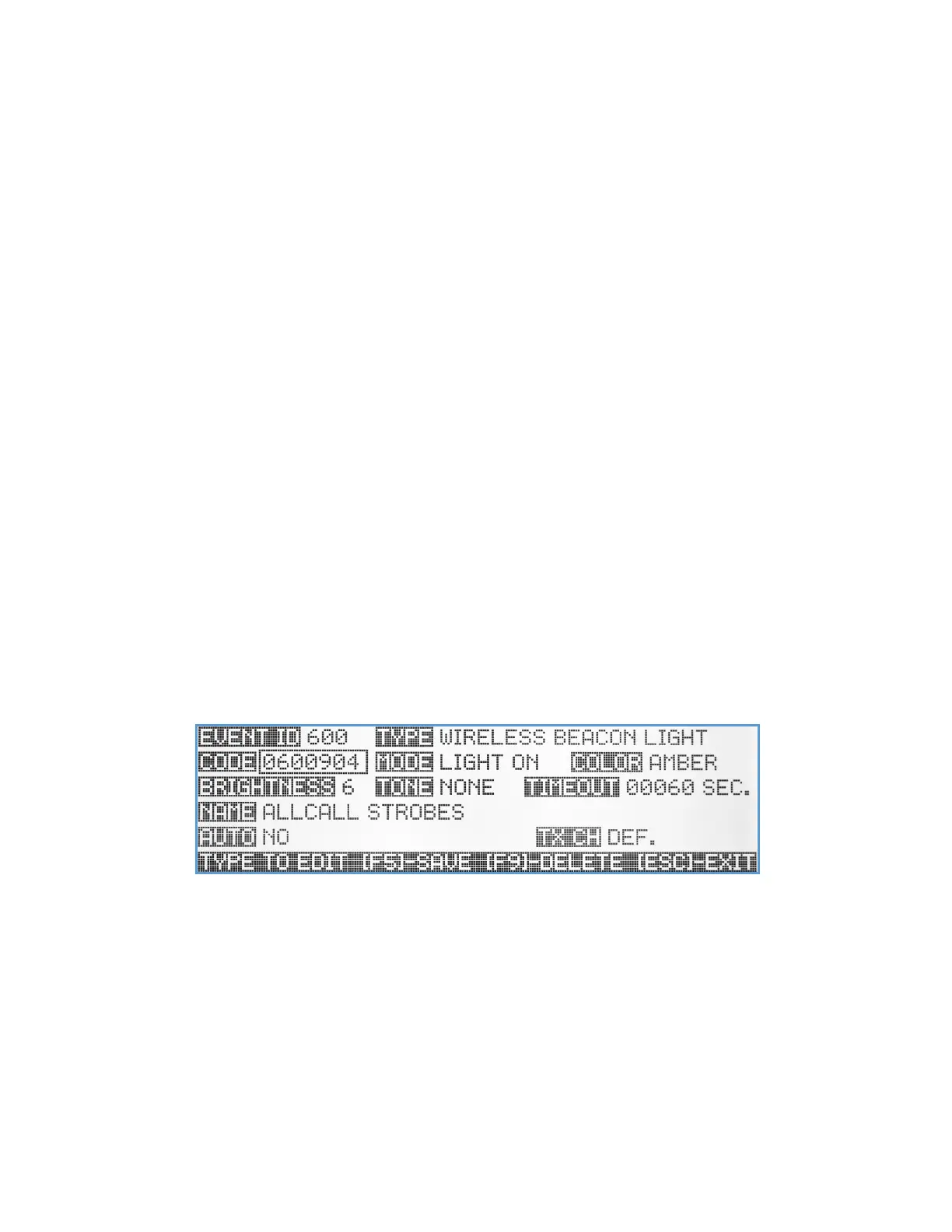

Beacon Light Event
The Beacon Light event type is designed to control and activate wireless beacon lights to help indicate to staff, visitors,
and employees about specific emergency situations, production line alerts, or severe weather conditions.
The Visiplex VNS2620 & VNS2640 and VNS272x multi-color LED beacon light capabilities, are the type of products that
can be controlled with this event type.
Code – A unique 7-digit activation code that can activate a single or group of wireless beacon light devices. Usually,
Visiplex products include up to 8 user-programmable activation codes, that provide individual activation or as
part of up to 7 groups/zones. Use the keyboard numeric keys to enter/edit the activation code.
Mode – Light signaling mode. Select one of five modes: Light Off, Light On, Flash 1 (slow flash), Flash 2 (fast flash) and
Strobe. Select the preferred mode using the Up/Down arrow keys.
Color – Select the beacon light color. There are 5 basic (Amber, Green, Blue, White & Red) and 4 user-programmable
colors to choose from. Select the preferred color using the Up/Down arrow keys.
