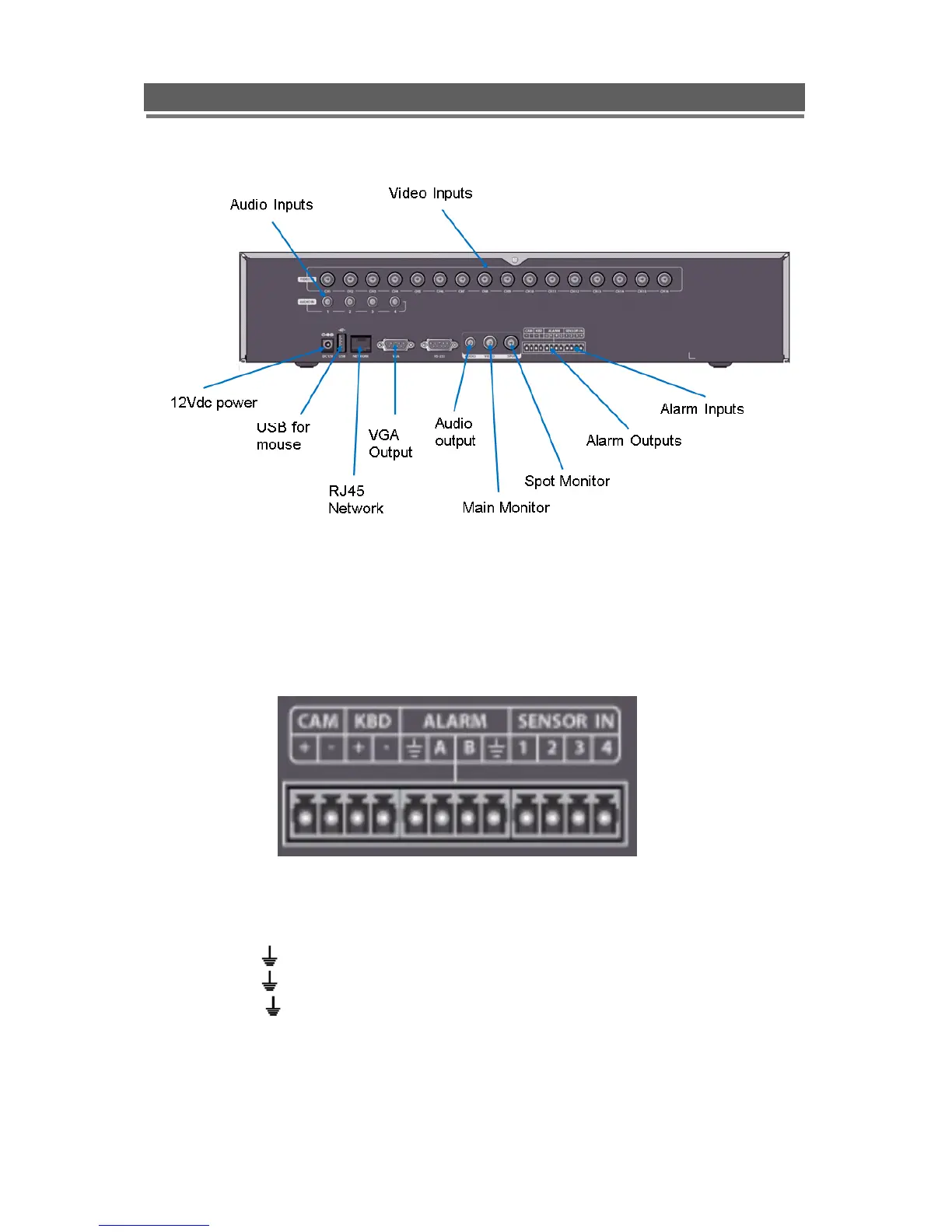

REAR PANEL CONNECTIONS
ALARM, KEYBOARD and RS485 TELEMTRY CONNECTIONS
Connection for Remote Keyboards, RS485 telemetry, Alarm inputs and Alarm outputs are all made via
the pull out screw terminal connectors on the rear of the unit as shown below:
CAM + /- : Used for the connection for RS485 Telemetry
KBD +/- : Used to connect VKBD4 remote keyboards
ALARM A/ : Used for Alarm output A
ALARM B/ : Used for Alarm output B
SENSOR IN/ : 4 Alarm Inputs
