Vista Quantum EVO - Front Panel; Q4-Xxxh (no FSK Telemetry); QE04;8;16-Xxxhf

9
Quantum EVO H.264 installation and user manual
FRONT PANEL
Q4-xxxh (No FSK telemetry)
QE04/8/16-xxxhf

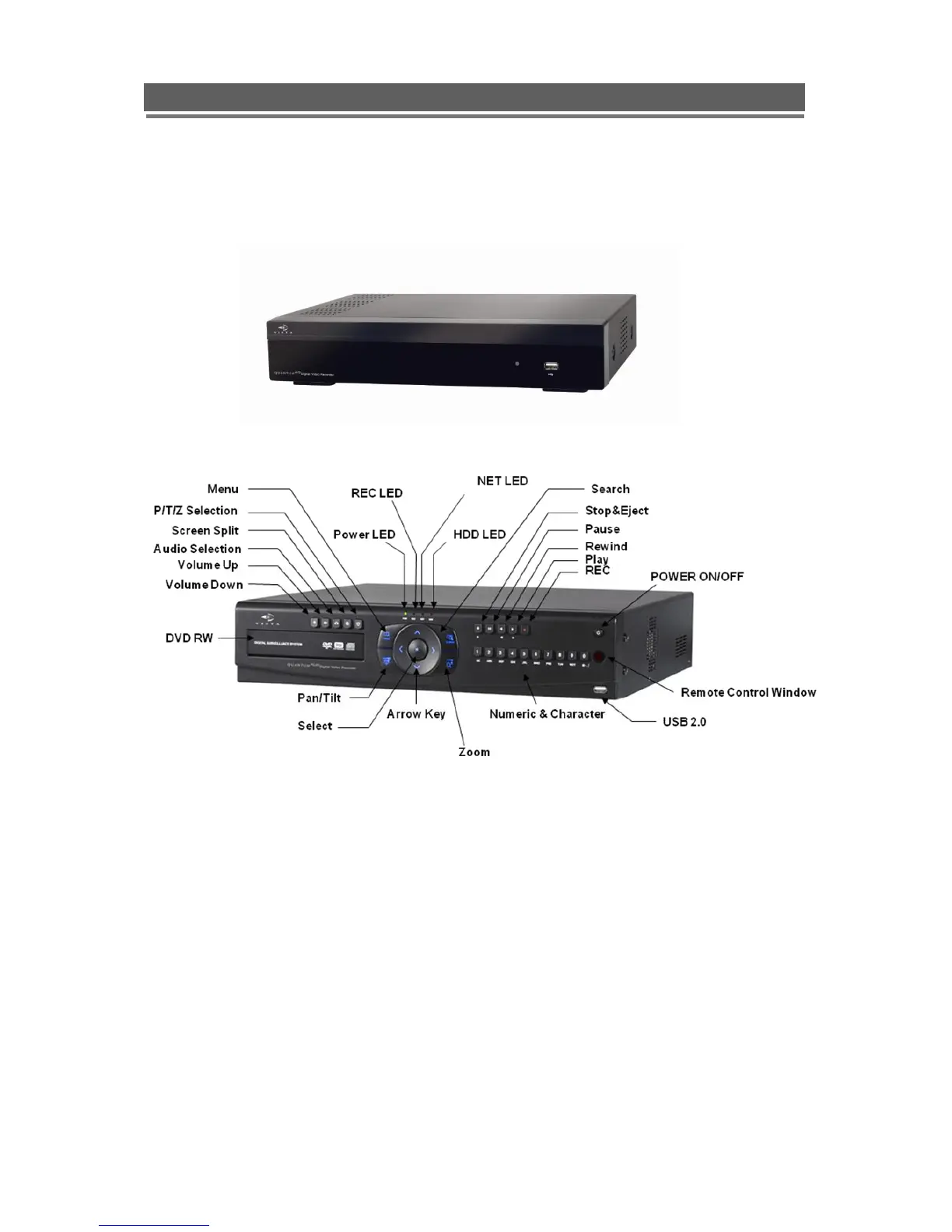

(1)LEDs
- REC: Recording status (When recording is on, the red light will flash)
- POWER: System Power On/Off (When power is on, the green light will be illuminated)
- NET: Network status (When network is connected, the light will lash)
- HDD: HDD status (When the system is reading or writing to the HDD, the light will flash)
(2) USB 2.0 PORT
- USB2.0 connector, for downloading to USB pens / drives (plus upgrading firmware)
(3) POWER BUTTON
- System Power On/Off
