Vista Quantum EVO - Page 92

92
Quantum EVO H.264 installation and user manual

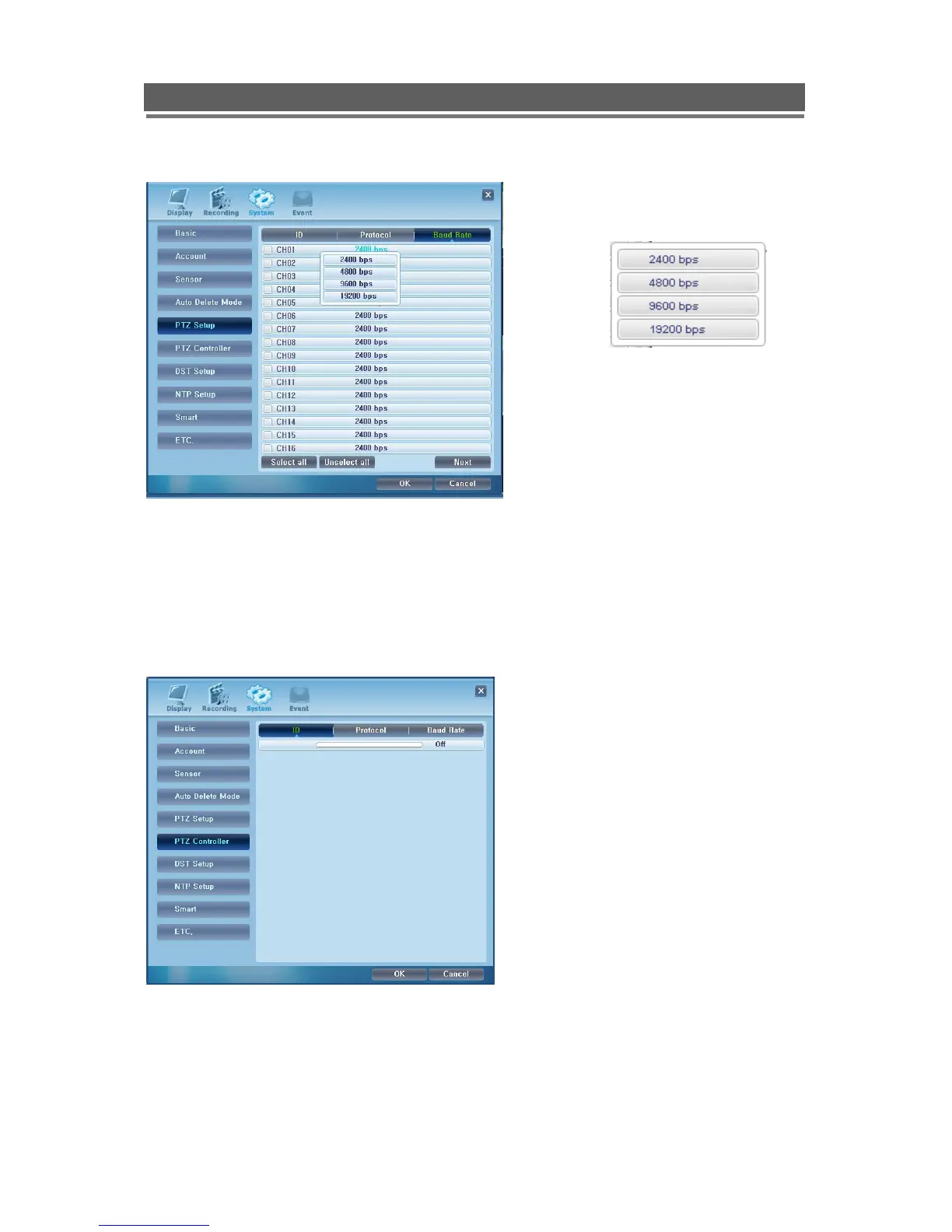

-Baud Rate
PTZ set up for Keyboard
-ID
The Baud rate of each PTZ camera can
be set the choices are:
The DVR can be allocated an RS485 ID
between 1 and 255.
Note: The DVR RS485 address must be
different to that of the keyboards
connected to it.
Vista VKBD4 keyboard address is set via
the keyboard‟s engineering mode,
please refer to the keyboard manual.
