REPLACING MAJOR COMPONENTS
Removing the Brewer
1. Press the red "OPEN BREWER" button.
a) The brewer motor will cycle and stop with the chamber in
the open position.

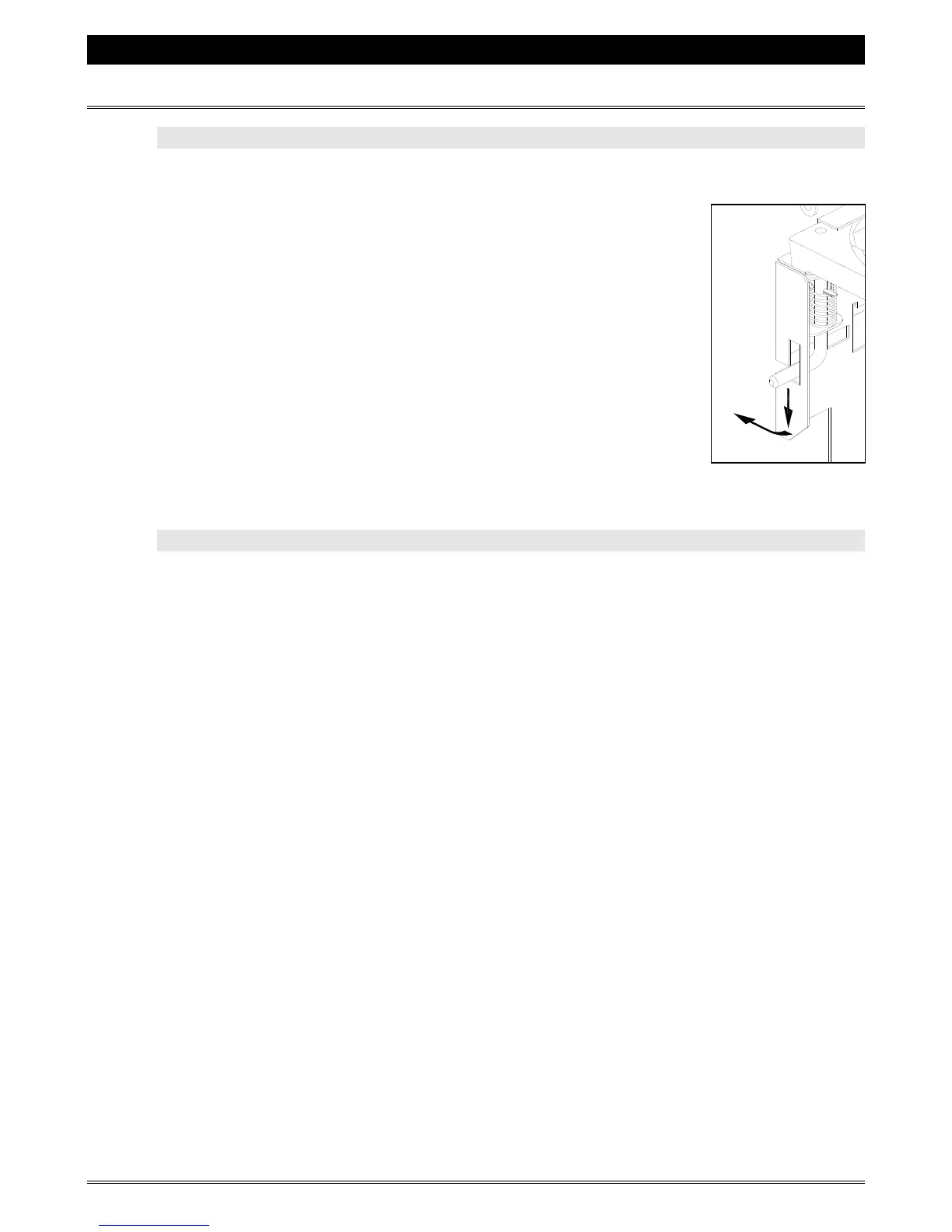

2. Release the brewer lock pin.
a) Lower the lock pin by pulling it down all the way.
b) Turn the pin to the left until it is directly below the flange,
and release.
3. Remove the brewer from the brewer bracket.
a) Gently grasp the brewer with one hand on the top, and the
other hand on the bottom.
b) Pull the brewer towards you until it is free from the
bracket.
Installing the Brewer
1. Press the red "OPEN BREWER" button.
a) The brewer motor will cycle and stop in a position where it will accept the brewer
with the chamber open.
2. Place the brewer onto the brewer bracket.
a) Make sure that the brew chamber is open.
b) Gently grasp the brewer, with one hand on the top, and the other hand on the
bottom.
c) Align the top edge of the brewer with the locating flanges on the brewer bracket.
One flange is at the left side of the bracket and the other is at the back of the
bracket.
d) Push the brewer into place to engage the brewer drive pin with the slot in the motor
coupling. If it does not align, move the brewer crank arm slightly until you feel the
brewer engaging with the motor coupling.
3. Engage the lock pin.
a) Release the lock pin from under the front flange and engage it with the hole located
on the front left side of the brewer. The brewer should now be firmly in place.
