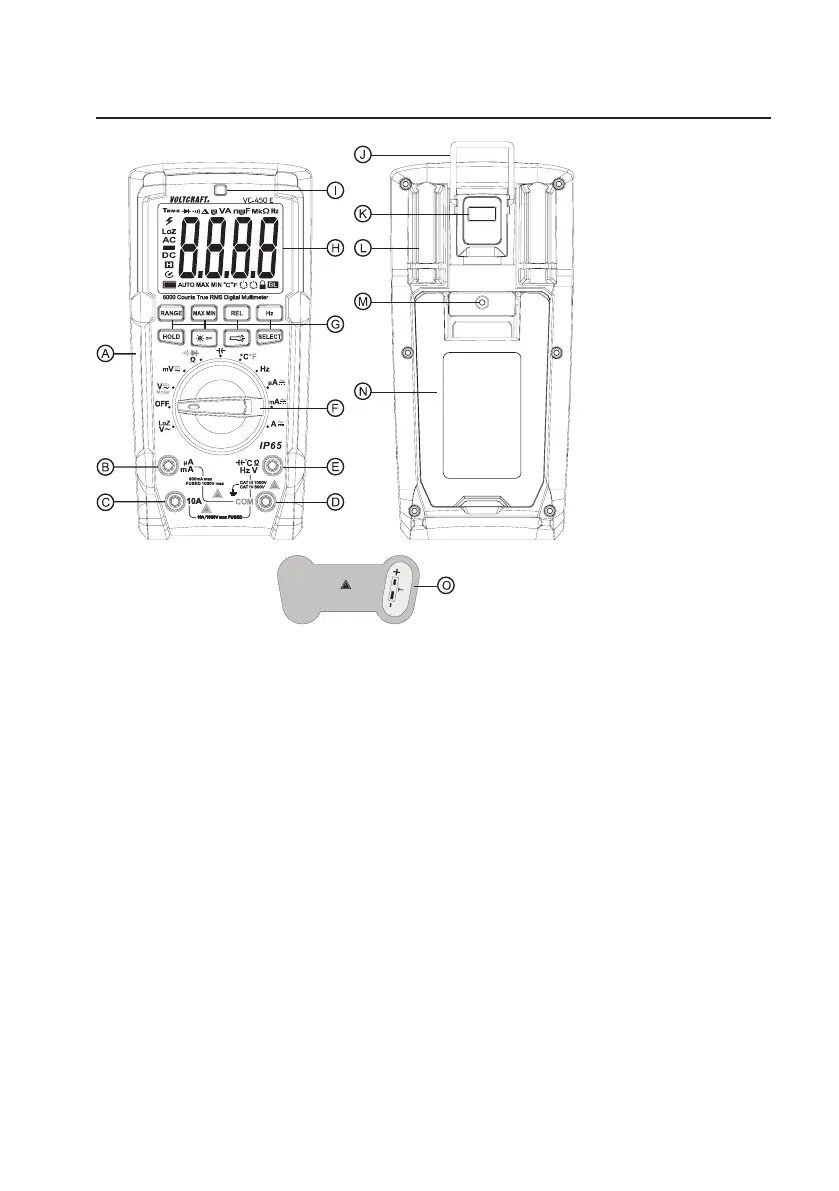

5. Operating elements
A Spray-cast rubber protection
B μA/mAmeasuringjack
C A-measuring jack
D COM measuring jack (reference potential, "Minus")
E VΩmeasuringjack(withcommensurability"Plus")
F Dial switch for selecting the measuring function
G Function buttons
H Display
I Light sensor for display lighting
J Suspension bracket, unfolding
K LED Lamp
L Measuring prod holder
M Screws for battery and fuse compartment lid
N Foldable standing bracket
O Temperature measuring adapter (thermocouple
socket on 4 mm banana plug)
