8. Display indications and symbols

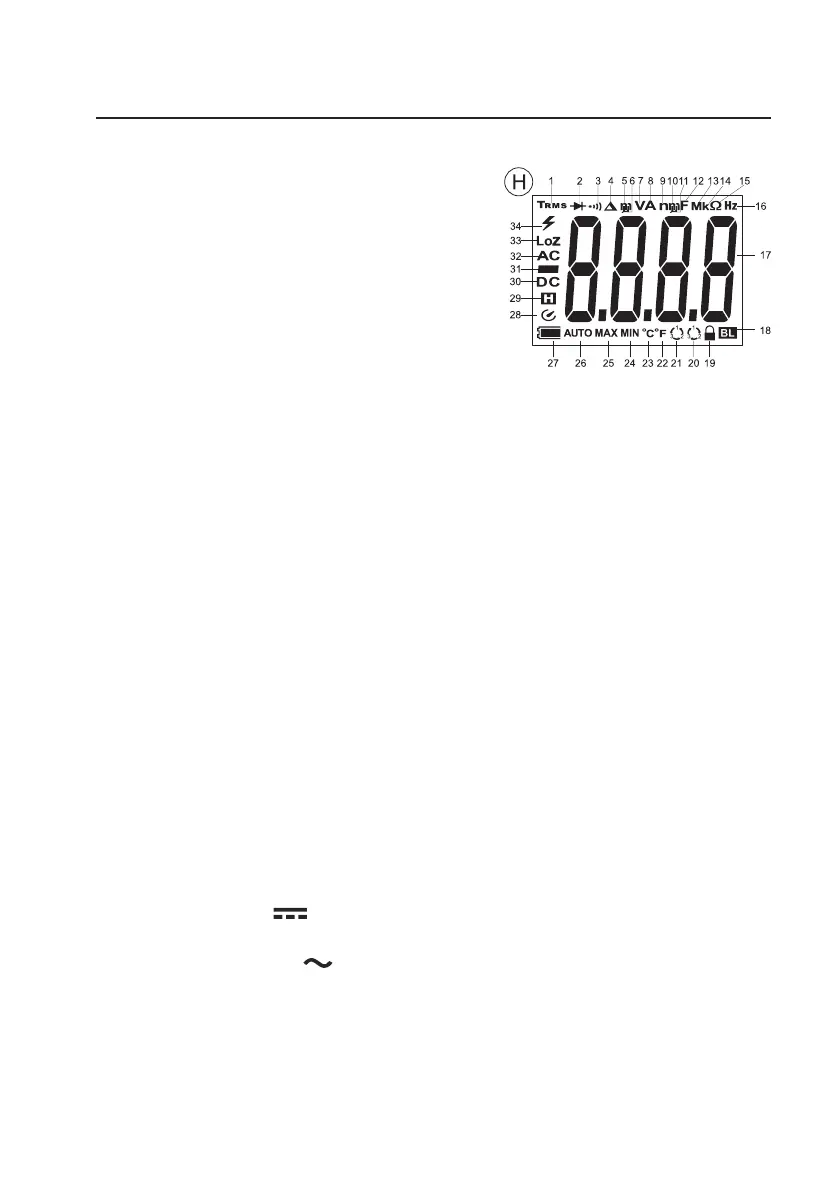

The following symbols and information are present at the device or in the display.
1 True root mean square
2 Symbol for the diode test
3 Symbol for the acoustic continuity tester
4 Delta symbol for relative value measuring (= reference value
measuring)
5 Symbol for milli (exp.-3)
6 Symbol for micro (exp.-6)
7 Volt (unit of electric voltage)
8 Ampere (unit of electric current)
9 Symbol for nano (exp.-9)
10 Symbol for milli (exp.-3)
11 Symbol for micro (exp.-6)
12 Farad (unit of electric capacity)
13 Symbol for mega (exp.6)
14 Symbol for kilo (exp.3)
15 Ohm (unit of electric resistance)
16 Hertz (unit of frequency)
17 Measured value display
18 Automatic lighting for display is active
19 Lockiconforphaserecognition(ashing=detectionmode,permanentdisplay=phaserecognised)
20 3-Phaserotatingdirectiondisplay“rightturning”
21 3-Phaserotatingdirectiondisplay“left-turning”
22 Symbol degrees Fahrenheit (Anglo-Saxon temperature unit)
23 Symbol Degrees Celsius (unit for the temperature)
24 Minimum value memory
25 Maximum value memory
26 Automatic measurement range selection is active
27 Battery level display
28 Automatic deactivation is activated
29 Hold function is active
30 Symbol for direct current ( )
31 Polarityindicationforcurrentowdirection(minuspole)
32 Symbol for alternating current ( )
33 Symbol for low impedance
34 Warning symbol for dangerous voltage or with warning sound when the measured value is exceeded
